NZFPV Hakrc H743 8S Flight Controller

Name: NZFPV Hakrc H743 8S Flight Controller
Brand: NZFPV
Price: 54.99 USD
Availability: InStock

$54.99 USD ~~$66.99 USD~~

Sale 17.91% $12.00 USD (17.91%)

In stock: 999

Description

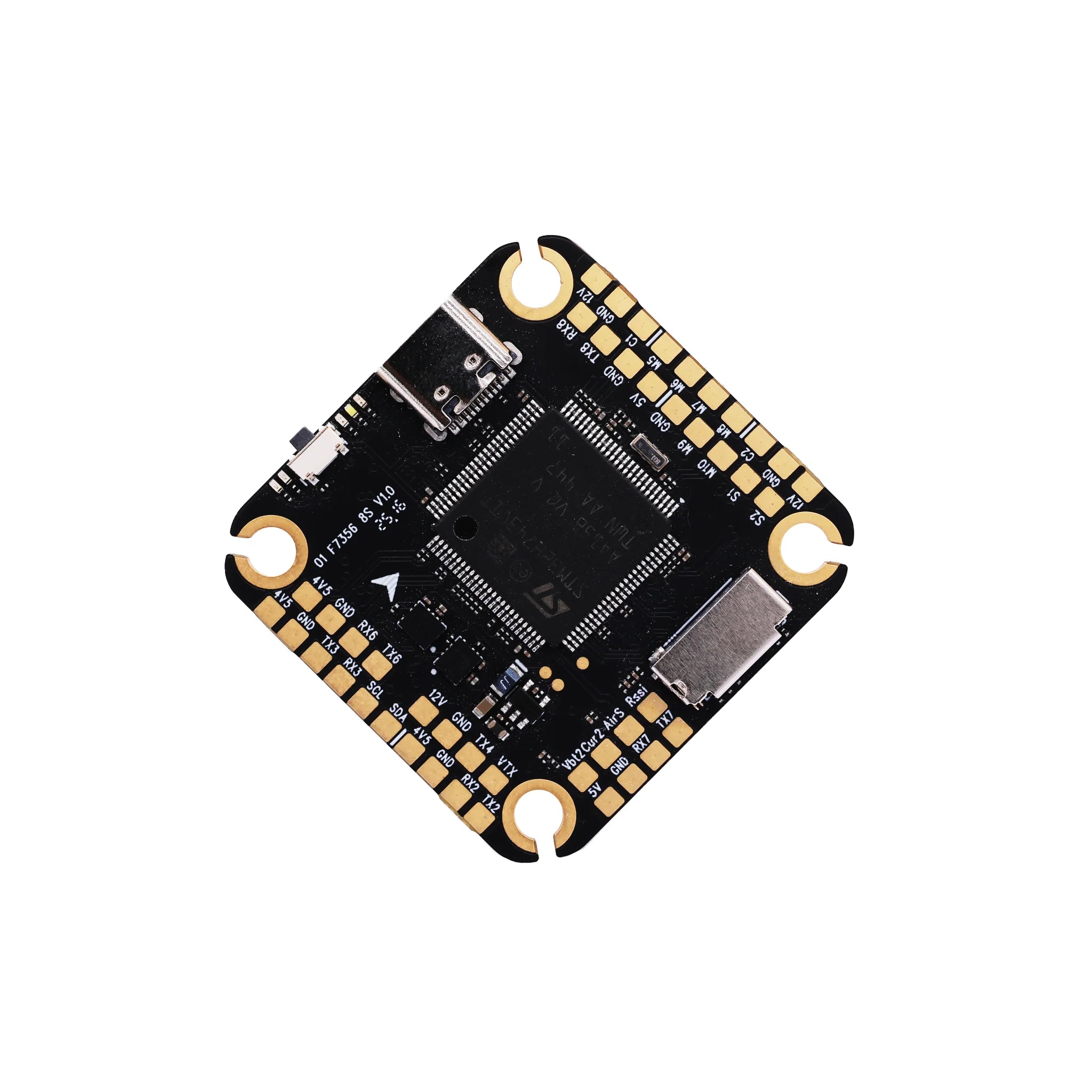

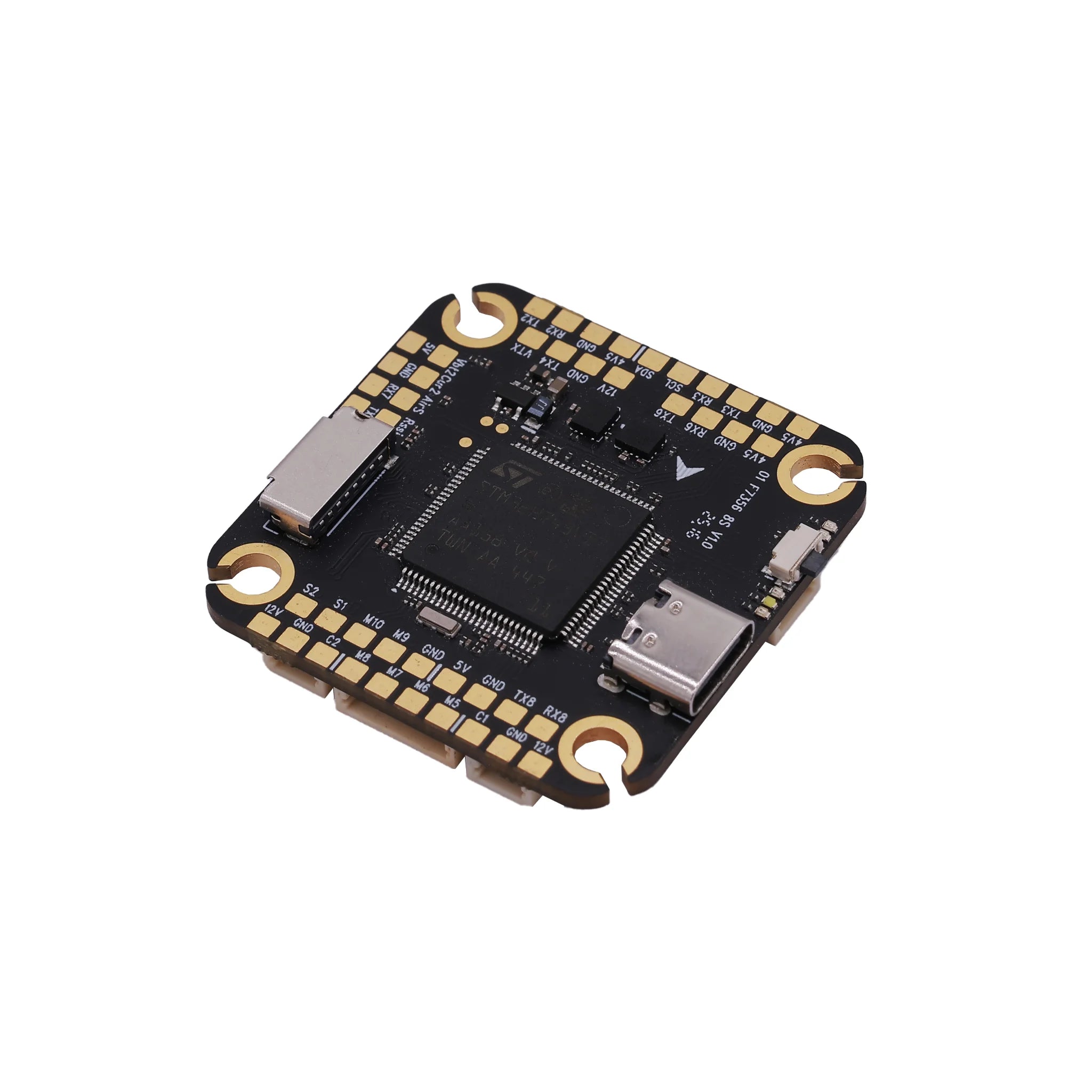

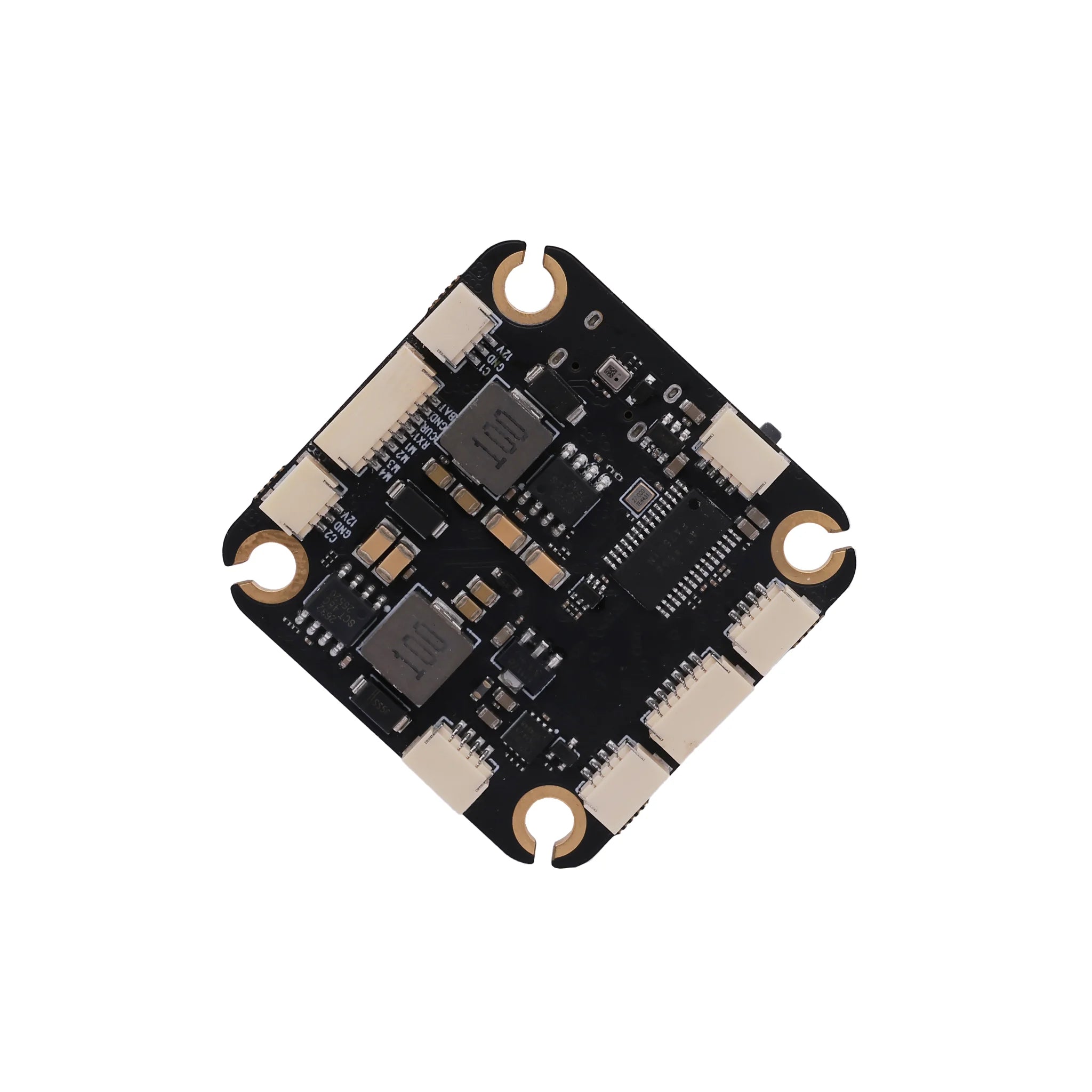

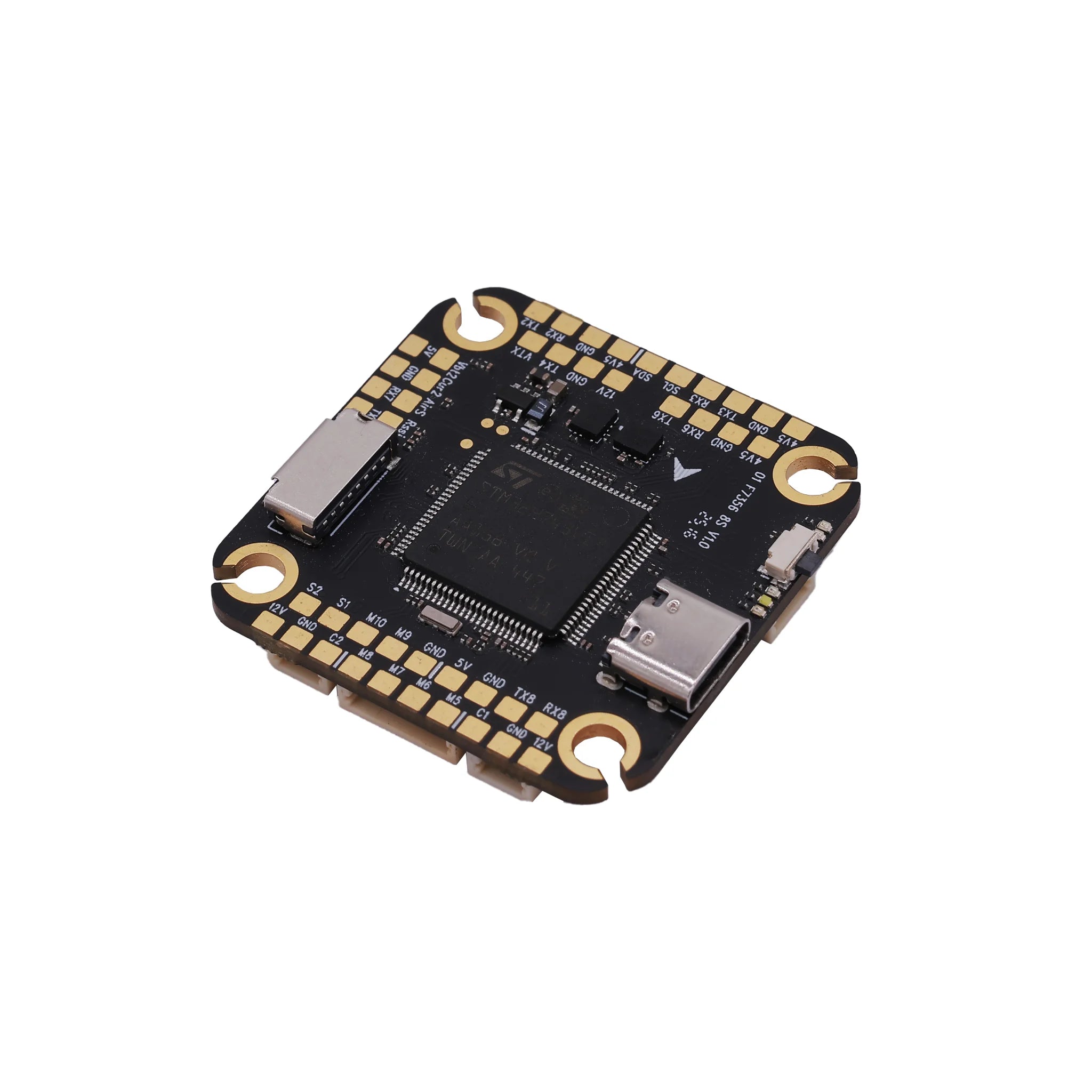

The HAKRC H743 8S Flight Controller is a premium solution for FPV drones. Powered by an STM32H743VIT6 CPU at 480MHz and dual ICM42688 gyroscopes, it supports 6S-12S LiPo with Dshot600. Featuring 8 UARTs, a 16MB MicroSD, and a 30.5x30.5mm design, it ensures high performance and durability.

Elegant Packaging

30-Day Returns

24/7 Support

Global Free Shipping

Detailed specification

Product Features

The HAKRC H743 8S Flight Controller features a high-performance STM32H743VIT6 CPU running at 480MHz, paired with dual ICM42688 gyroscopes for enhanced stability. It includes an AT7456E OSD, an integrated SPA06-003 barometer, and a 16MB MicroSD for external storage. The design supports 8 UARTs for versatile connectivity, a 5V/3.5A and 12V/3A BEC, and adjustable external LED lights. High-quality components ensure robust anti-interference and efficient power management.

Flight Control Parameters

CPU: STM32H743VIT6 (480MHz)
IMU: Dual ICM42688 gyroscopes
OSD: AT7456E
Barometer: SPA06-003
External Storage: MicroSD card (up to 4GB)
BEC: 5V/3.5A, 12V/3A
LED: Adjustable external LED support
Firmware: HAKRC H743
Receiver: Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2
UARTs: 8

Technical Specifications

Size: 40x40mm
Mounting Hole Spacing: 30.5x30.5mm
Input Voltage: 6S-12S LiPo
Net Weight: 11.39g
Brand: HAKRC

The HAKRC H743 8S Flight Controller is the ideal choice for FPV enthusiasts seeking a powerful, reliable controller. With its advanced features and robust design, it delivers precision and durability for high-performance drone builds.
