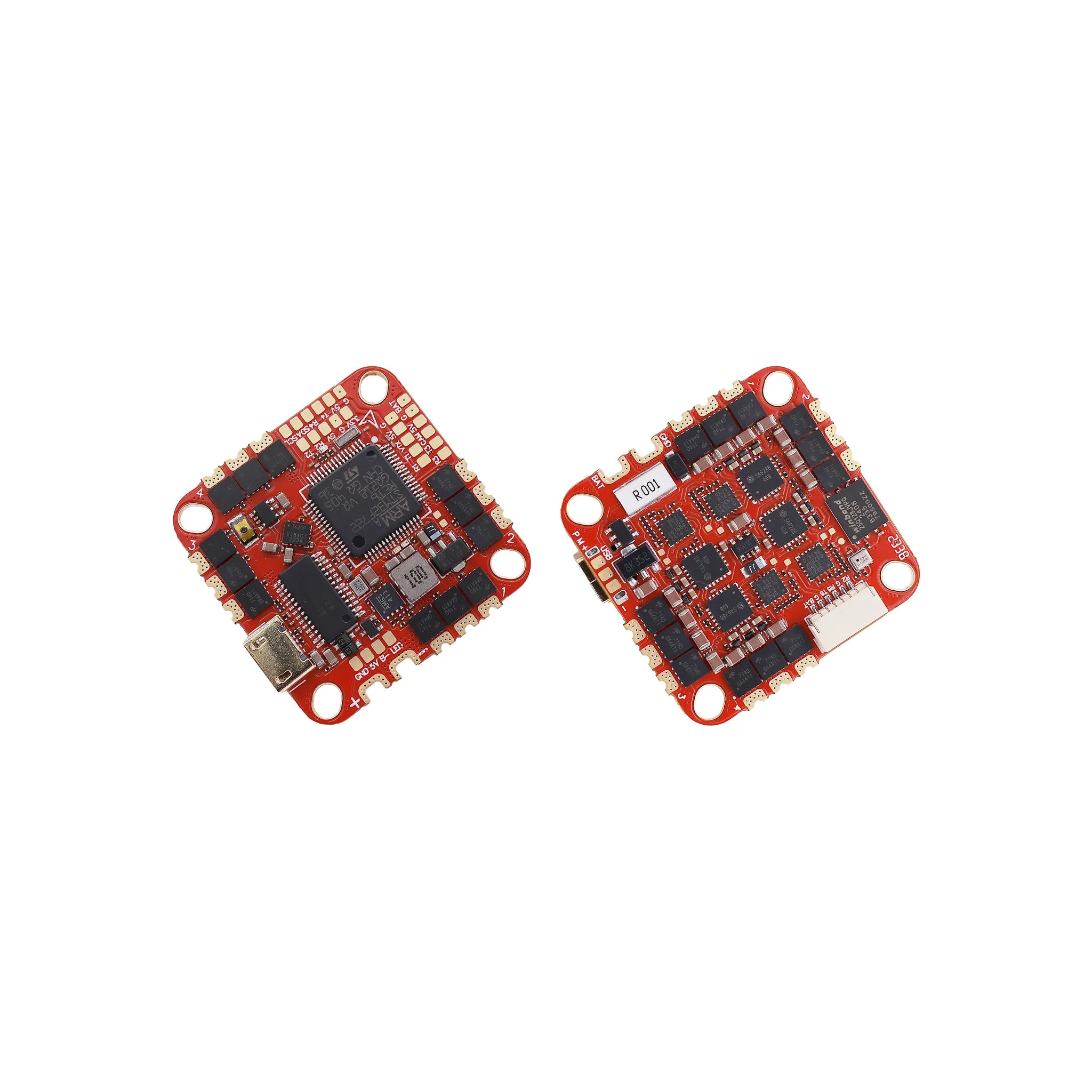

NZFPV Hakrc F7226 40A AIO F722 CPU 2S-6S BLHELI_S

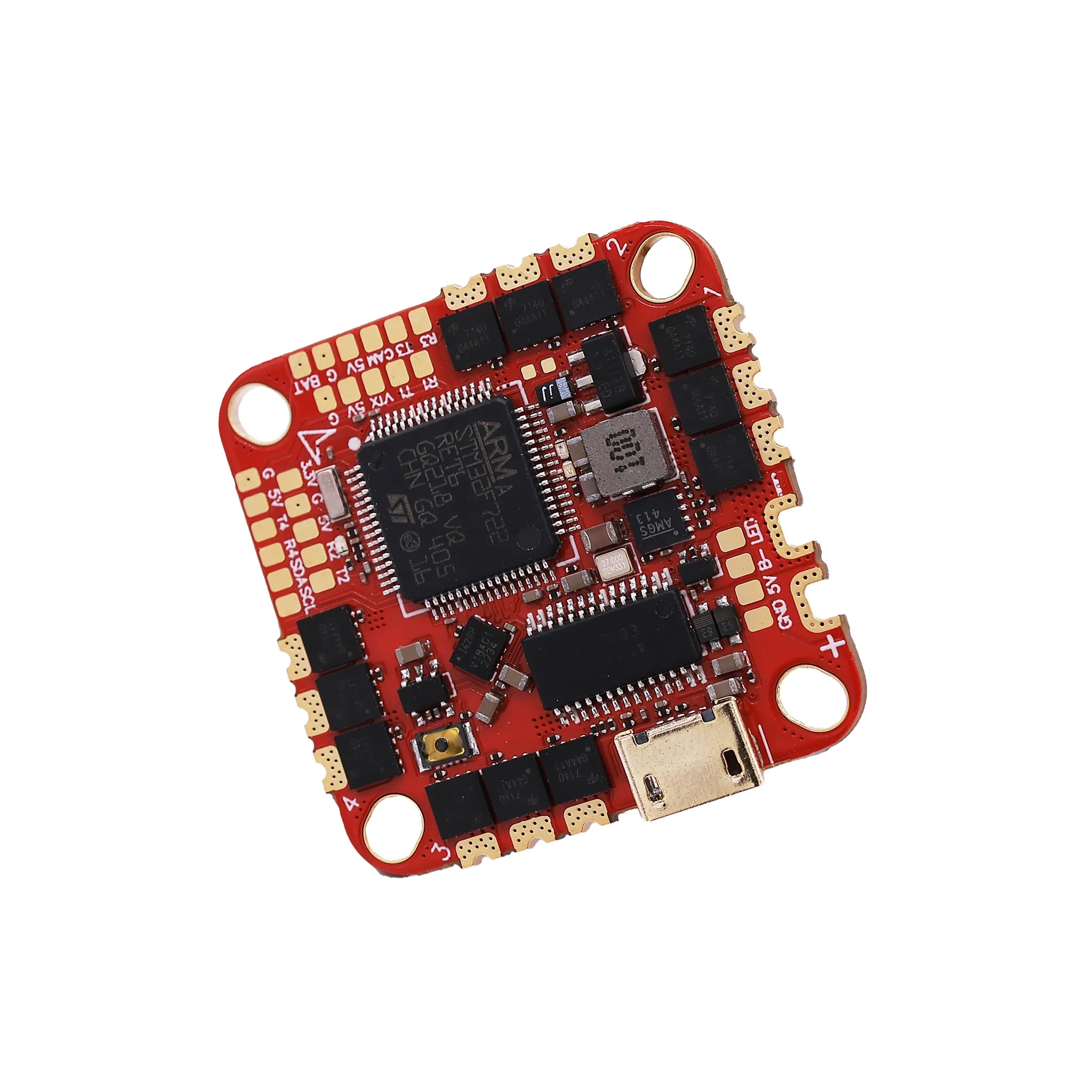

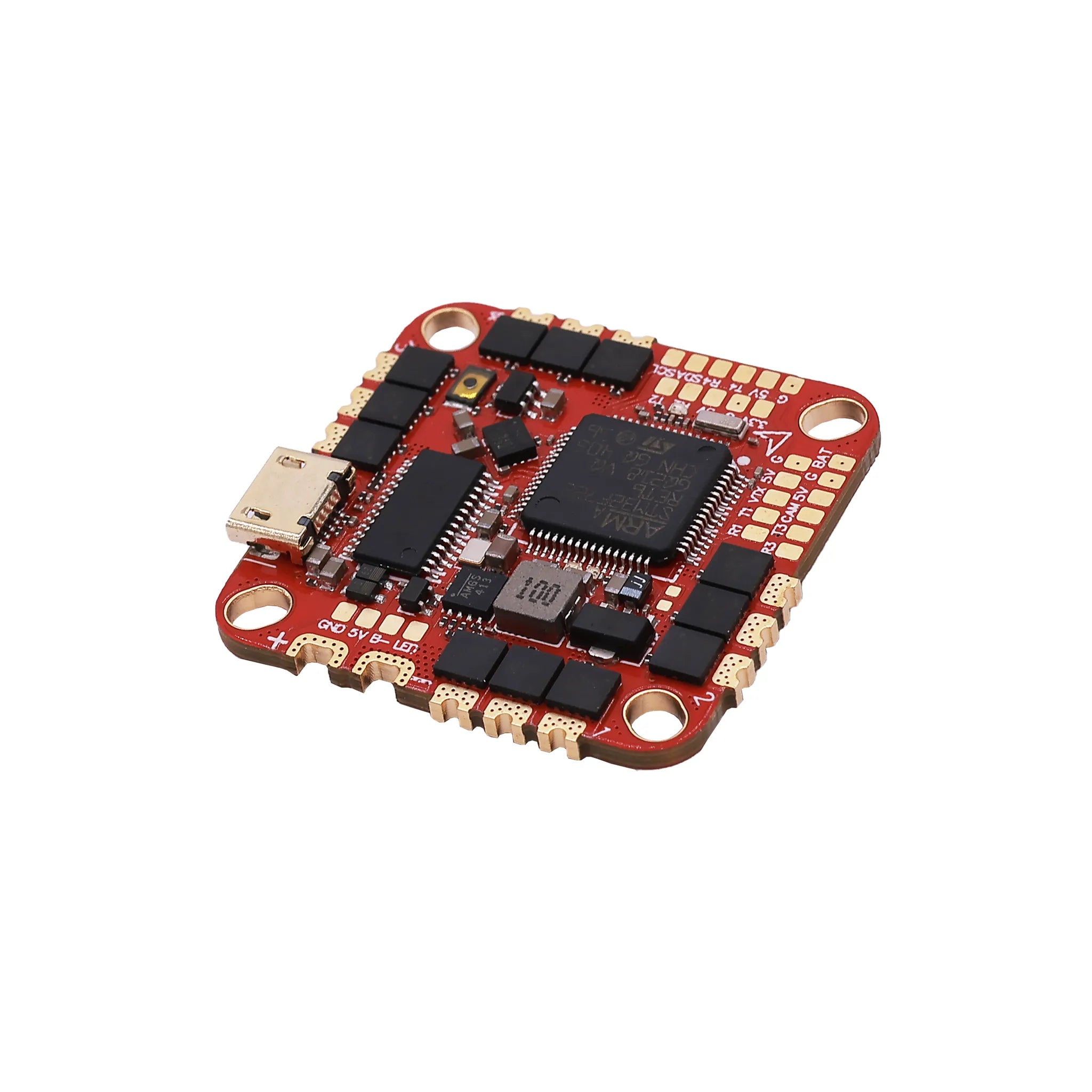

Advanced F7 Flight Control and Peripherals

The HAKRC F7226 40A AIO features a high-speed STM32F722RET6 CPU paired with an ICM42688 IMU, running HAKRCF722D firmware for smooth, responsive flight performance. It includes an AT7456E OSD for real-time on-screen flight information, an integrated barometer for altitude hold capabilities, a built-in current sensor, and support for external programmable LEDs, providing a comprehensive suite of features for FPV pilots.

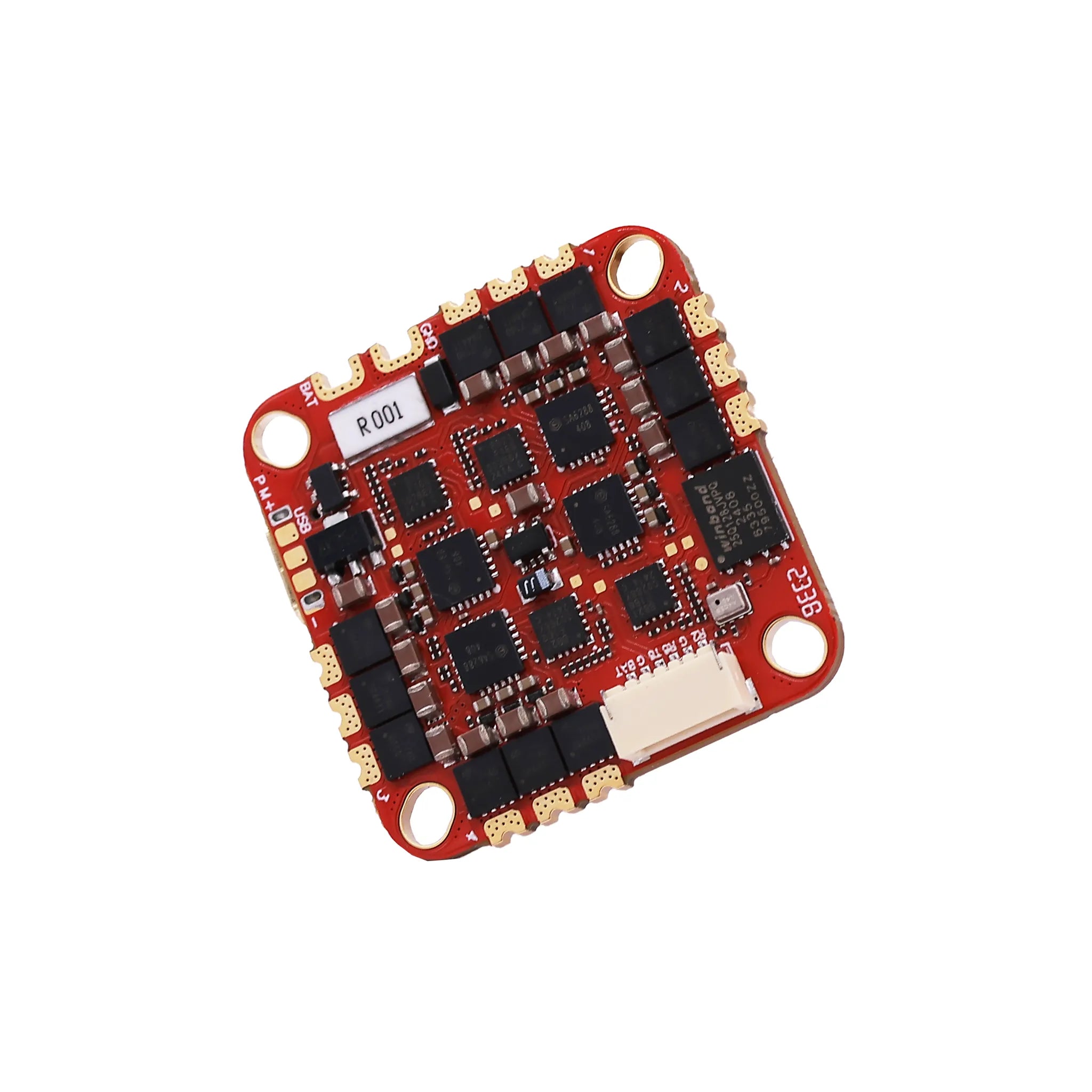

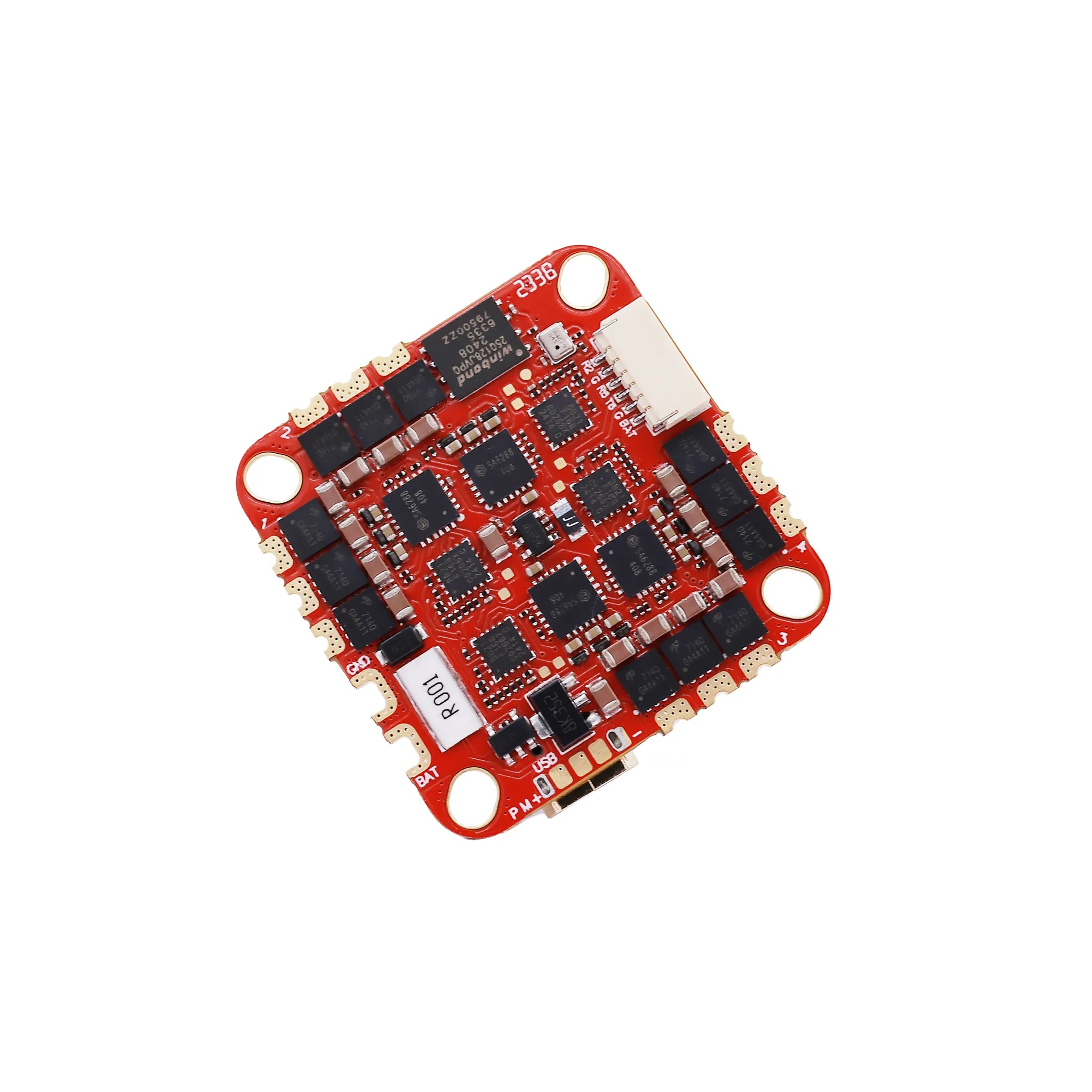

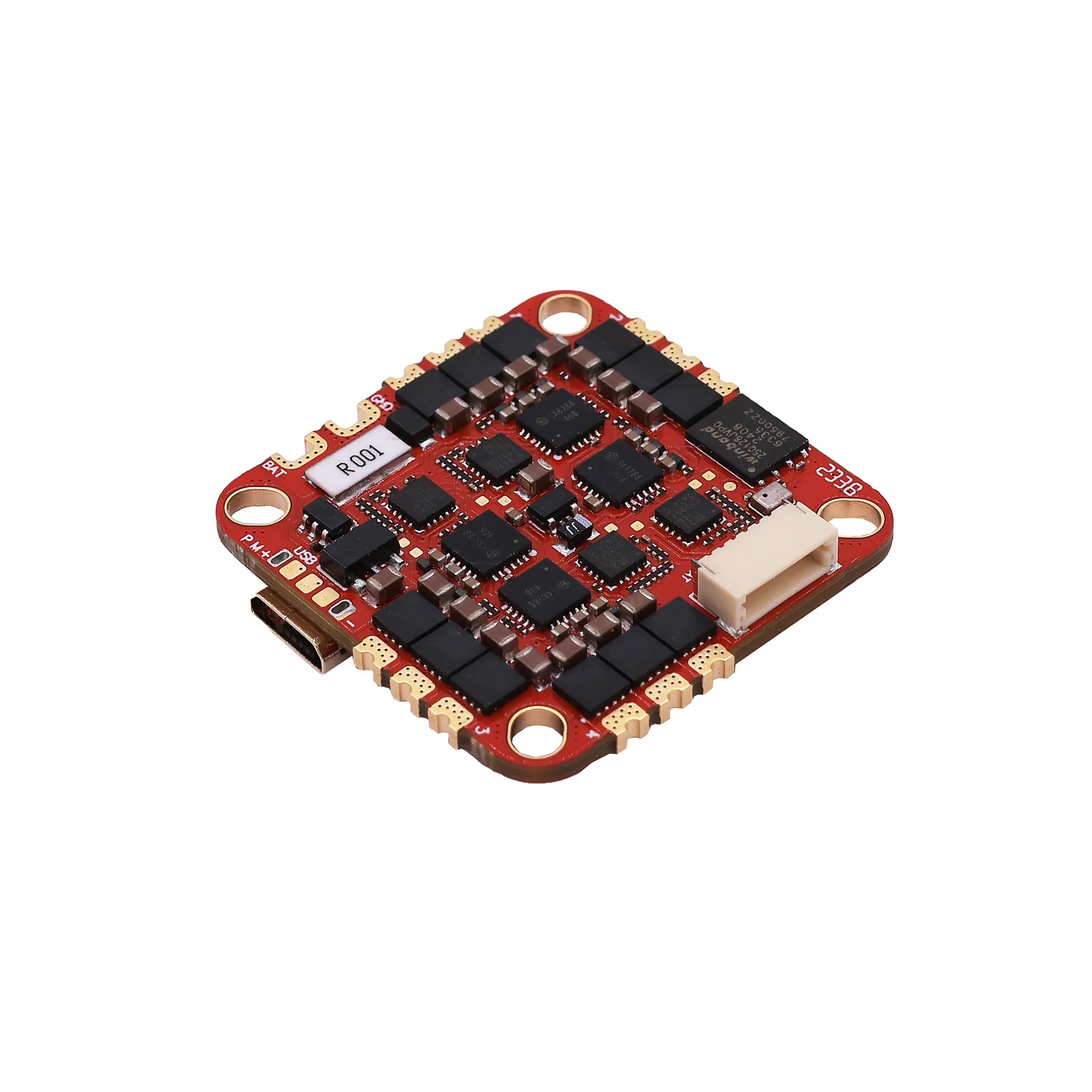

Robust 40A BLHeli_S ESC

The integrated 4-in-1 ESC delivers 40A continuous current and 45A peak, suitable for a wide range of FPV builds on 2S-6S LiPo batteries. Running BLHELI_S (G-H-30) firmware, it supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600 protocols for reliable, precise motor control. Imported 40V high-current-resistant MOSFETs ensure long lifespan and strong load capacity.

Premium PCB Design and Quality Components

The F7226 AIO is built on a high-end 8-layer PCB with 2oz thickened copper, utilizing a resin-plugged production process and double pad design for superior overcurrent capacity and excellent heat dissipation. It incorporates industrial-grade LDOs for high-temperature resistance and high-quality Japanese Murata capacitors for superior filtering performance, ensuring system stability and durability in demanding FPV environments.

Enhanced User Experience

The HAKRC F7226 40A AIO significantly enhances the FPV experience with:

• Compact and Powerful Builds: The 40A ESC with 6S support and 25.5-26.5mm mounting pattern enables powerful, compact drone builds for freestyle and racing.
• Smooth and Reliable Flight: The STM32F722 CPU and ICM42688 IMU, paired with BLHeli_S firmware, deliver stable, responsive flight performance across various styles.
• Simplified Wiring and Assembly: The AIO design reduces wiring clutter, while the double pad PCB enhances solder joint reliability for cleaner, robust builds.
• Enhanced Durability and Heat Management: The 8-layer PCB, resin-plugged process, and premium components ensure longevity and effective heat dissipation under demanding conditions.
• Clear On-Screen Information: The AT7456E OSD, barometer, and current sensor provide real-time flight data and telemetry for an informed flying experience.
• Customizable Aesthetics: External programmable LEDs allow personalized drone appearance and status indication.

Technical Specifications

• CPU: STM32F722RET6
• IMU: ICM42688
• OSD: AT7456E
• Barometer: Integrated
• Storage: 16MB
• ESC: 4-in-1, 40A continuous, 45A peak
• ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• ESC Firmware: BLHELI_S (G-H-30)
• Sensor: Built-in current sensor
• LED Support: External programmable LEDs
• Firmware: HAKRCF722D
• Receiver Support: Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2
• Input Voltage: 2S-6S LiPo
• PCB: 8-layer, 2oz copper, resin-plugged, double pad design
• Components: 40V MOSFETs, industrial-grade LDO, Japanese Murata capacitors
• Mounting: 25.5-26.5mm pattern
• Brand: HAKRC

The HAKRC F7226 40A AIO is the ideal choice for FPV enthusiasts seeking a compact, high-performance all-in-one flight controller for micro drones. With its robust 40A ESC, advanced F7 processor, and comprehensive features, it delivers exceptional stability and versatility for demanding builds.
