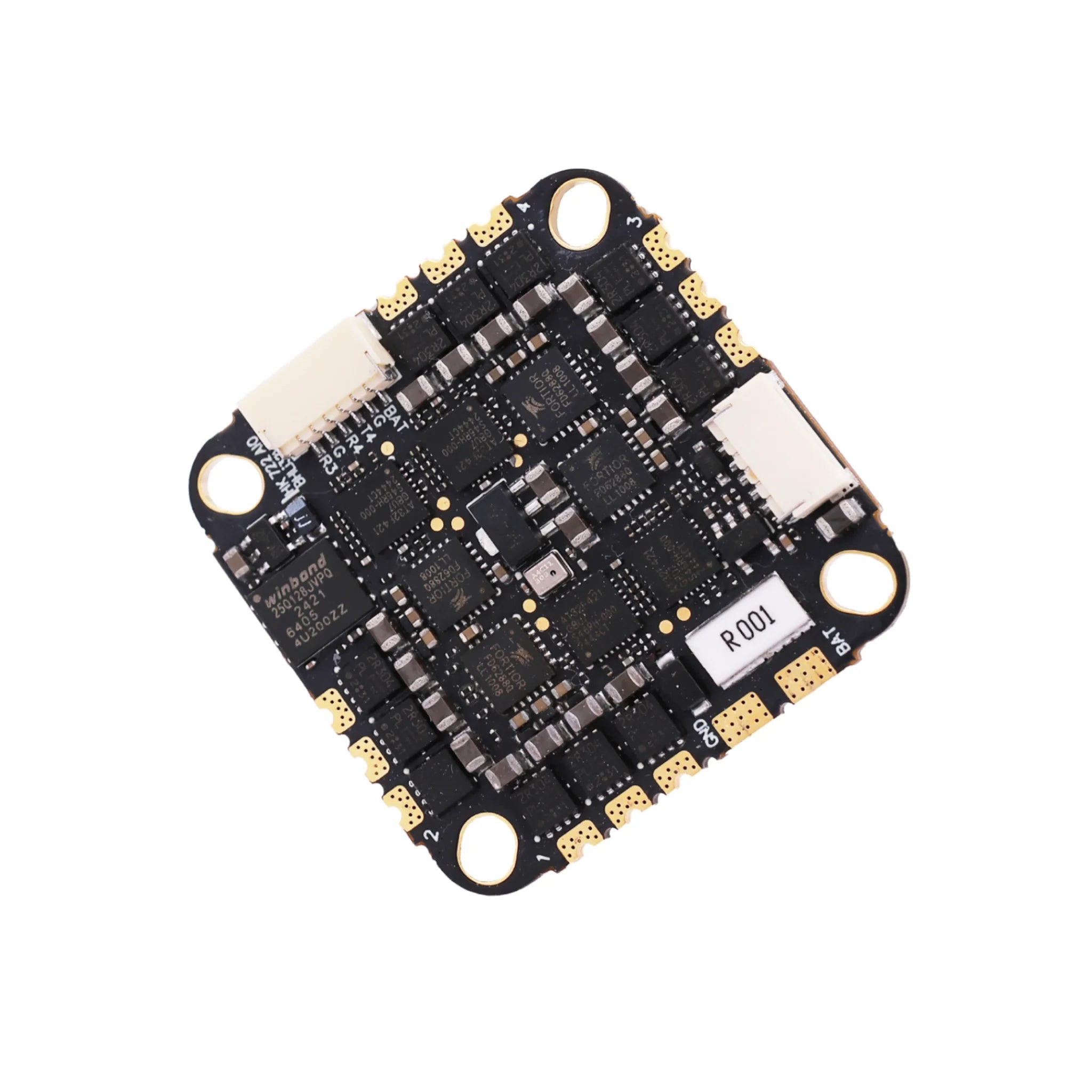

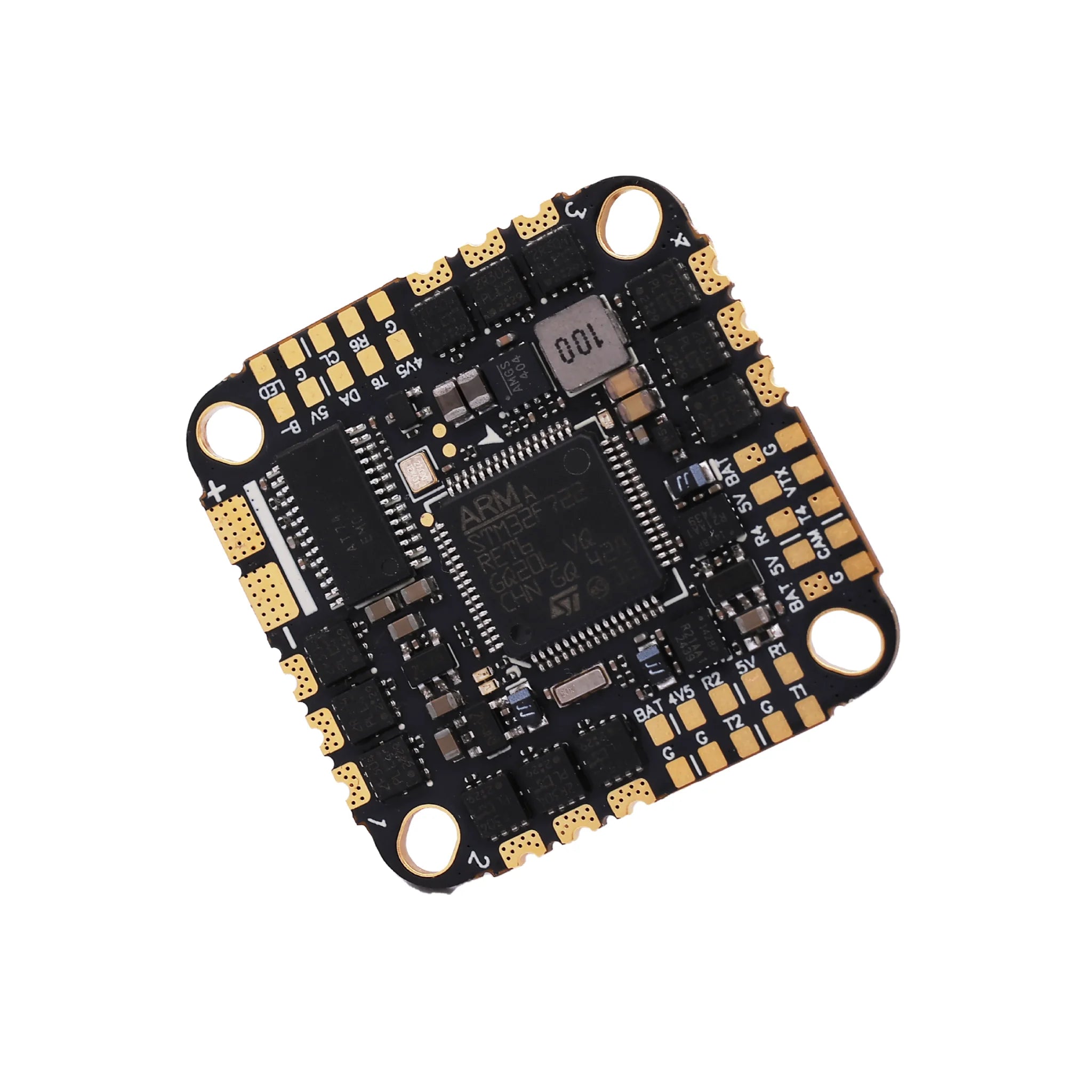

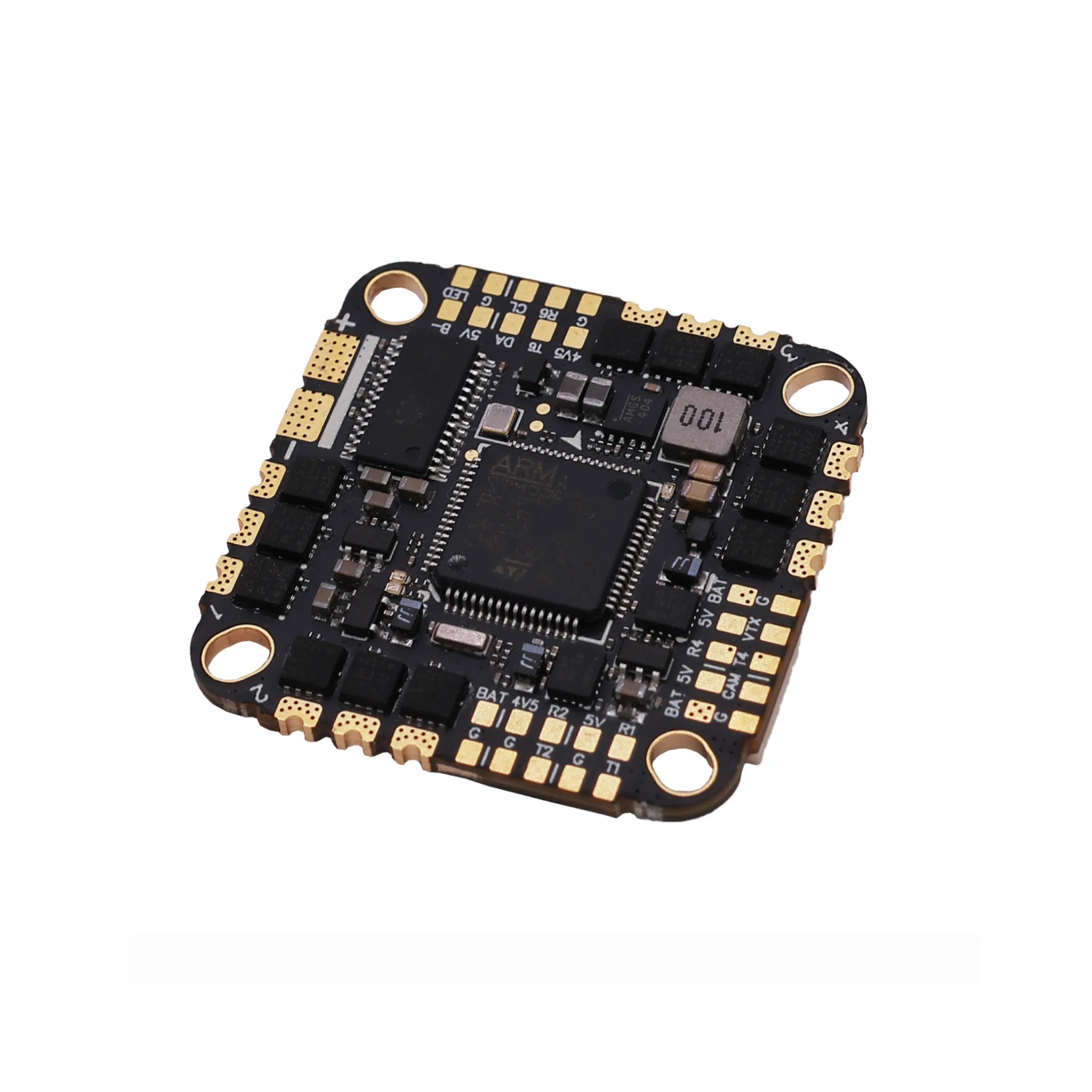

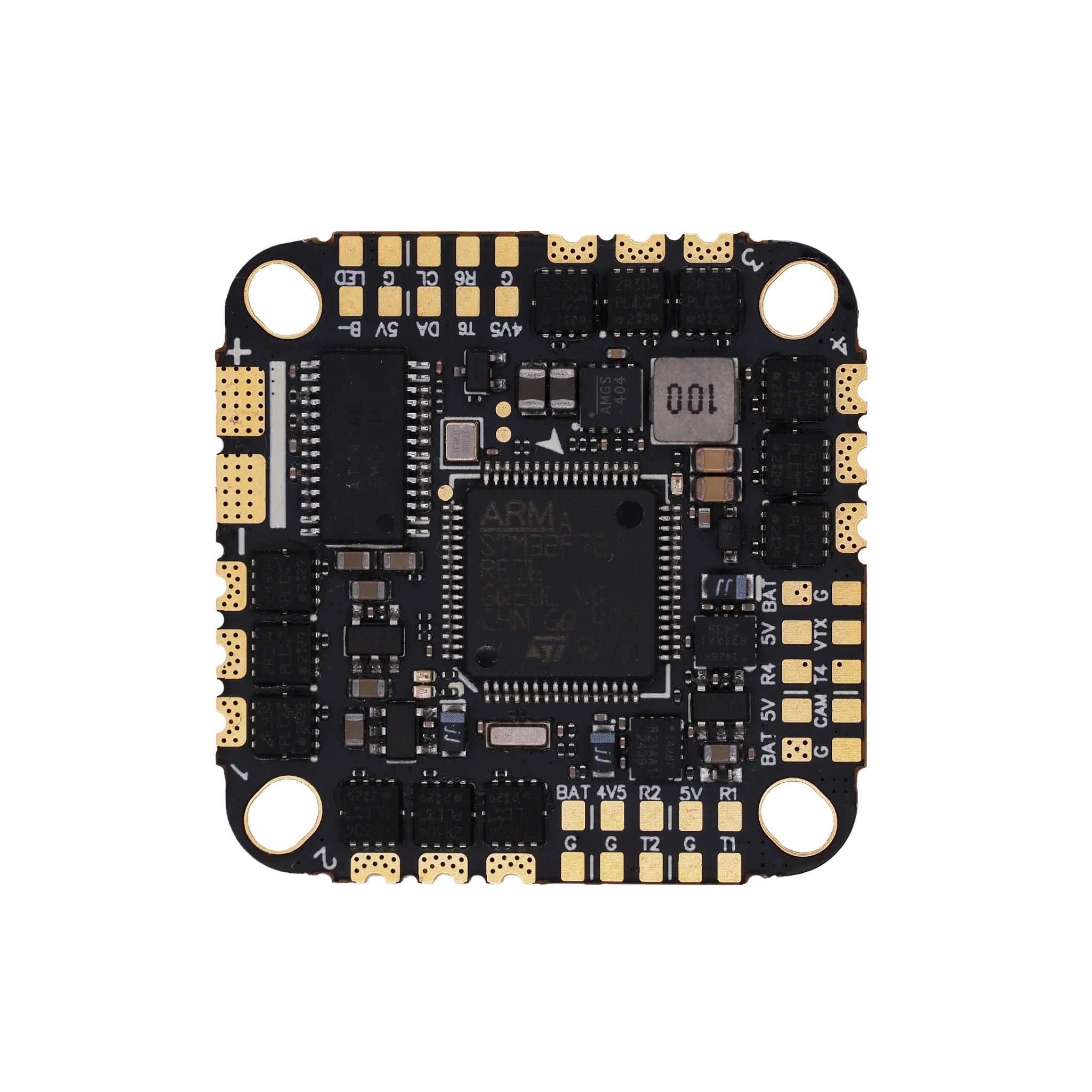

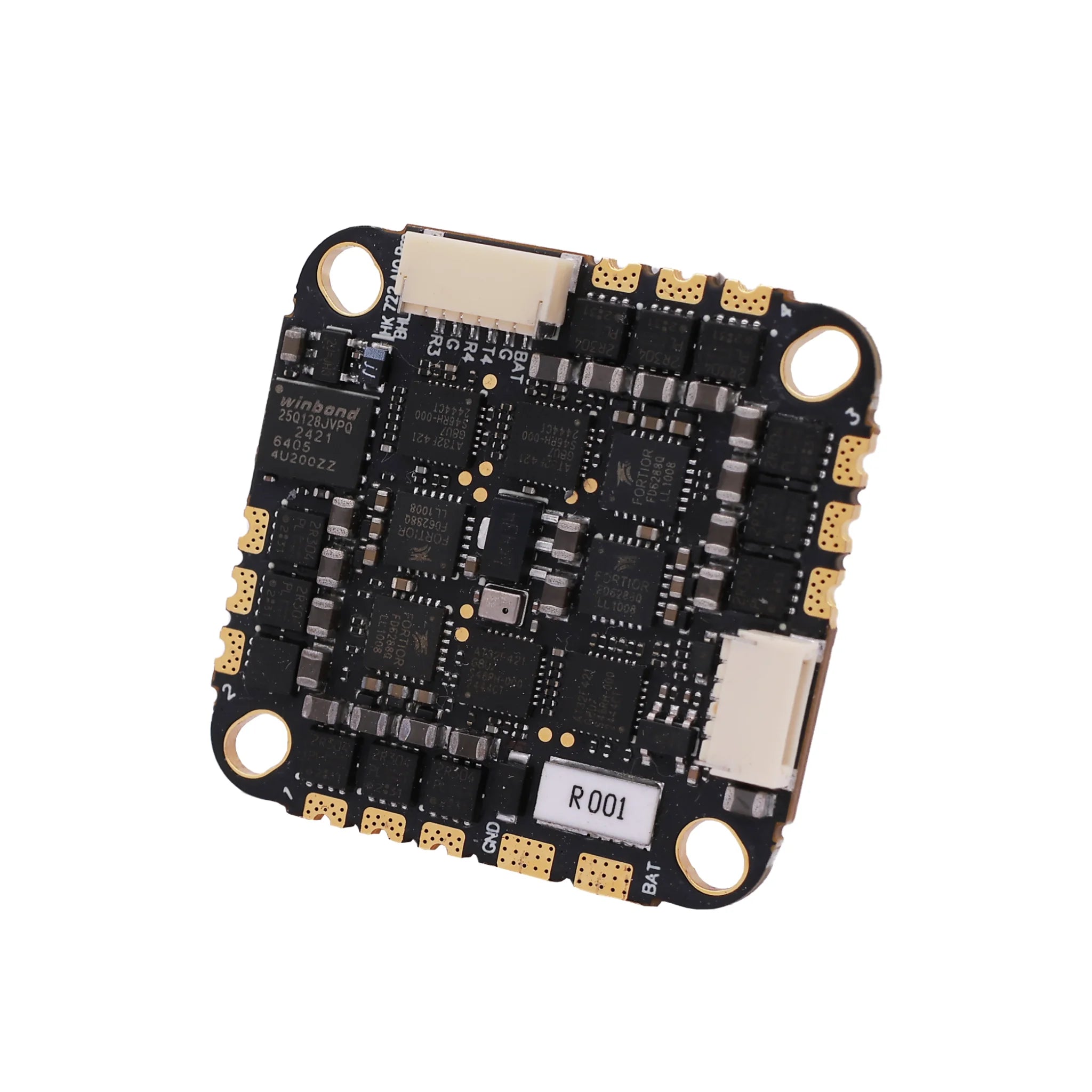

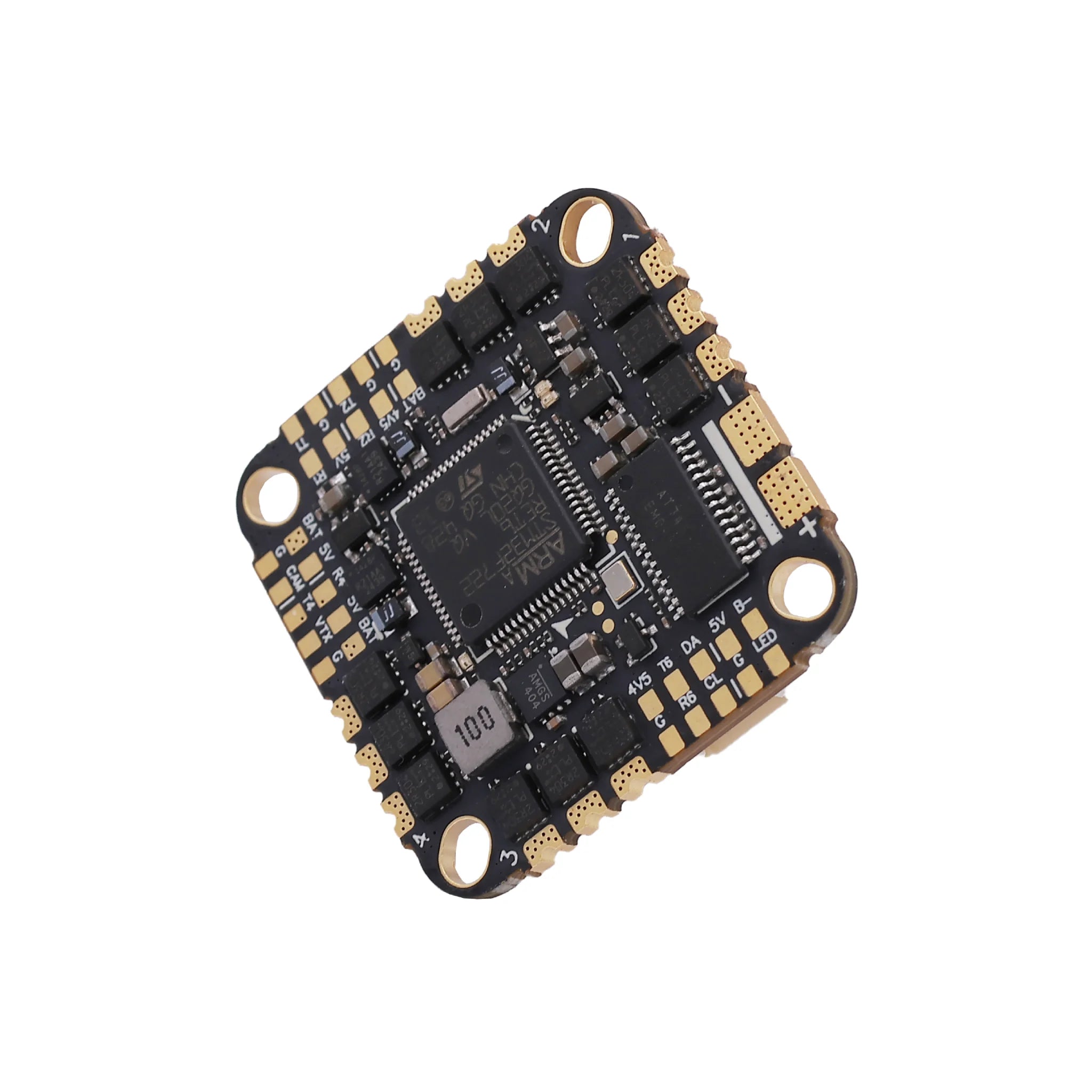

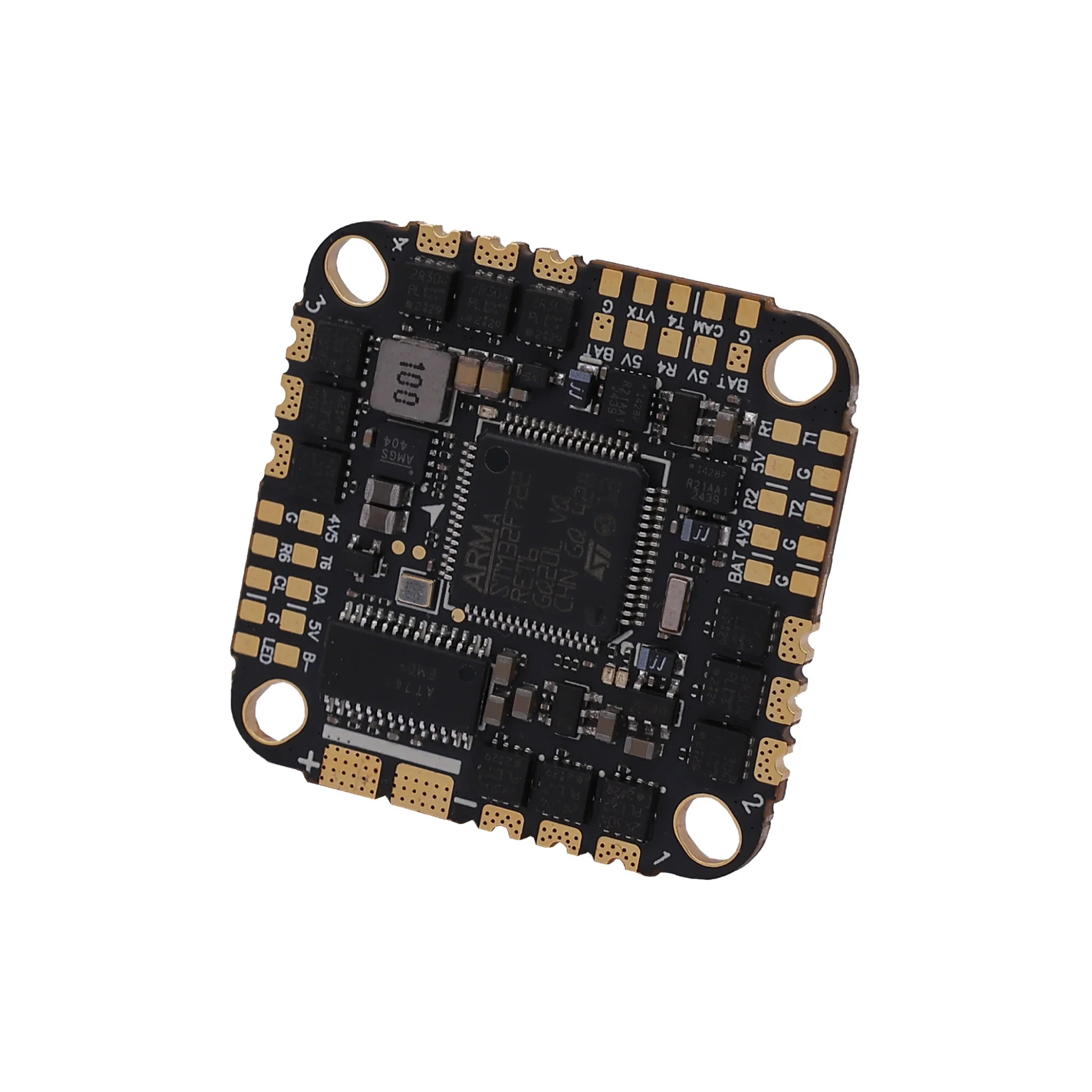

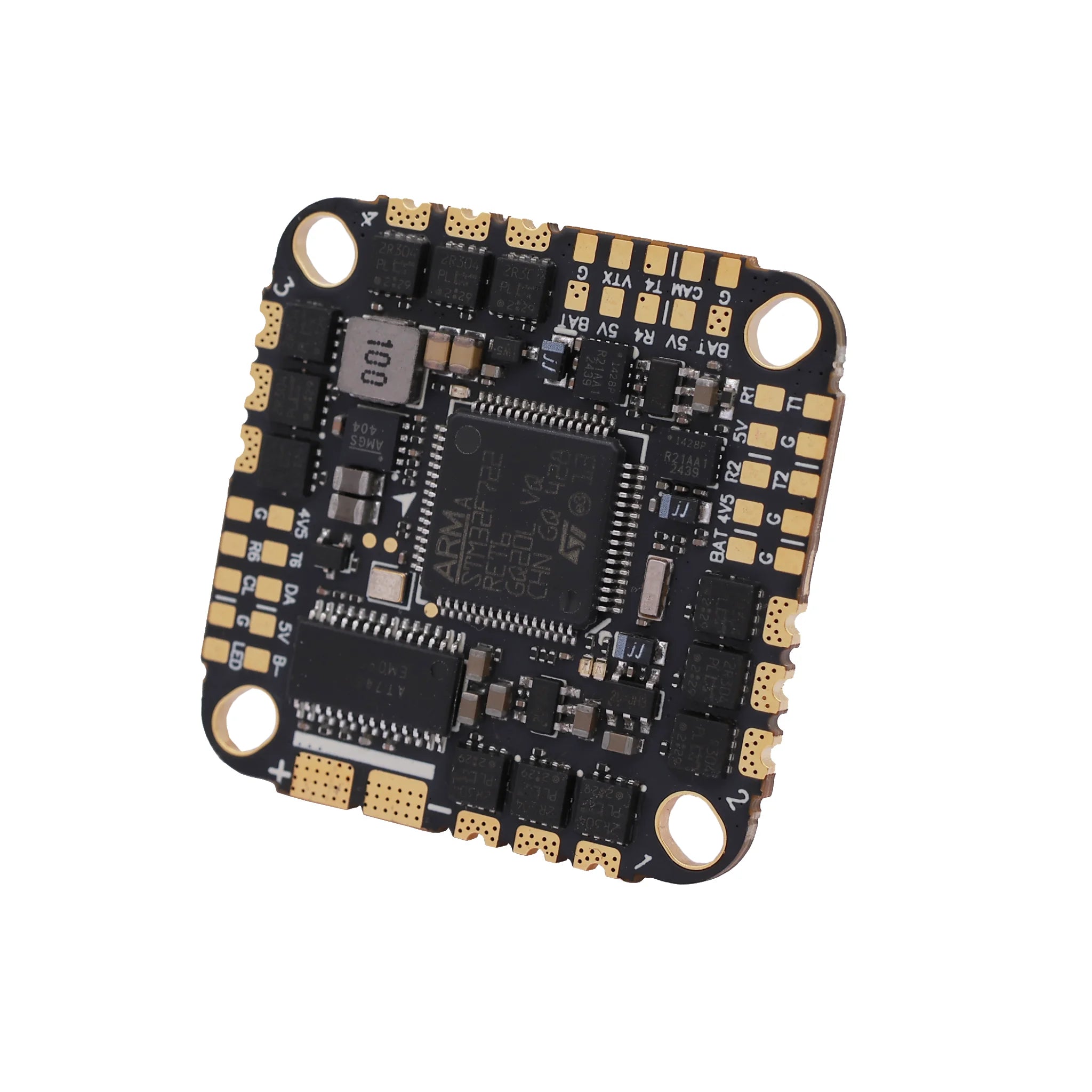

NZFPV Hakrc F722 BLHeli_32 AIO 45A F722CPU DualGyro

Advanced Flight Control with Dual Gyro

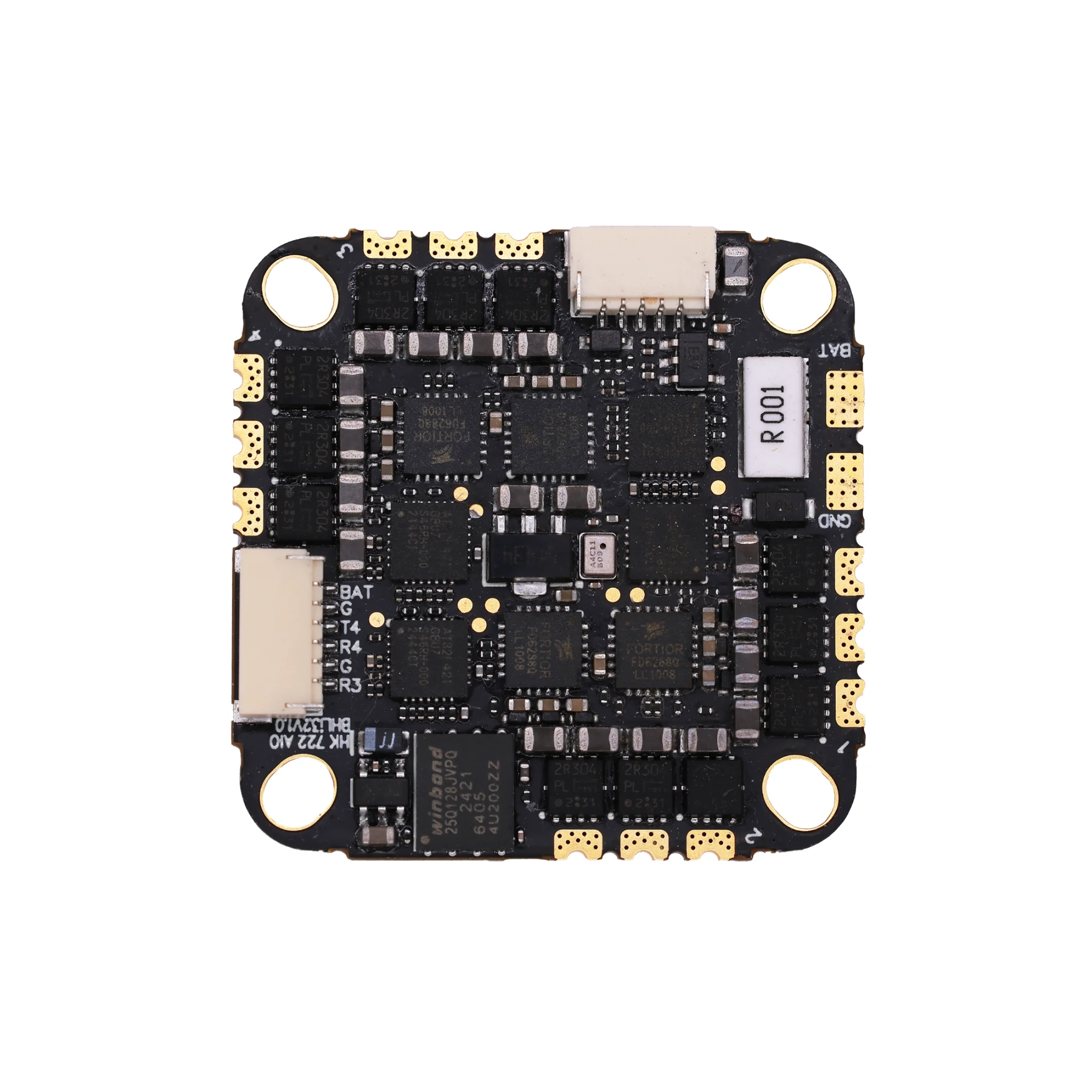

The HAKRC F722 BLHeli_32 AIO flight controller is powered by the STM32F722RET6 CPU, offering robust processing for modern flight firmware like HAKRCF722D. It features dual ICM42688 gyroscopes for enhanced flight stability and precision through sensor fusion or redundancy. Integrated components include an AT7456E OSD for on-screen display, an integrated barometer for altitude sensing, a 5V/2A BEC for peripheral power, and a 16MB black box for flight data logging, critical for tuning and diagnostics.

Integrated 45A BLHeli_32 ESC

The AIO board includes a powerful 4-in-1 ESC running BLHeli_32 firmware (HAKRC_AT4G_Multi_32.9 Hex), supporting 45A continuous current and 55A peak for demanding FPV builds on 2S-6S LiPo batteries. It is compatible with PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600 protocols, ensuring smooth and responsive motor control. ESC telemetry data transmission to the flight controller enables real-time monitoring of performance parameters.

High-Quality Construction and Components

The HAKRC F722 AIO is built on a high-end 8-layer PCB with 2oz thickened copper skin, utilizing a resin-plugged production process and double pad design for superior overcurrent capacity and heat dissipation. It incorporates imported 40V high-current-resistant MOSFETs for longevity, an industrial-grade LDO for high-temperature resistance, and high-quality Japanese Murata capacitors for strong filtering performance, ensuring durability and reliability in challenging FPV environments.

Enhanced User Experience

The HAKRC F722 BLHeli_32 AIO significantly enhances the FPV experience with:

• Simplified Builds: The all-in-one design integrates flight controller and 45A ESC, reducing wiring complexity, saving space, and lowering weight for cleaner, compact drone builds.
• Enhanced Flight Performance: The STM32F722 CPU and dual ICM42688 gyroscopes provide superior processing and sensor accuracy, delivering smooth, stable, and vibration-resistant flight.
• Reliable Power Delivery: The 45A BLHeli_32 ESC with high-quality MOSFETs and 8-layer PCB ensures consistent power to motors under demanding conditions.
• Comprehensive Flight Data: Integrated AT7456E OSD displays critical flight information on the FPV feed, while the 16MB black box and barometer support detailed logging and altitude hold.
• Versatile Compatibility: Supports multiple receiver protocols (CRSF, Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2) and 2S-6S LiPo input for diverse FPV setups.
• Improved Durability: The 8-layer PCB, resin plugging, industrial LDOs, and Murata capacitors enhance heat management and board longevity.
• ESC Telemetry: Real-time ESC data monitoring aids in performance optimization and fault detection.

Technical Specifications

• CPU: STM32F722RET6
• Gyroscope: Dual ICM42688
• OSD: AT7456E
• Barometer: Integrated
• Storage: 16MB
• BEC: 5V/2A
• ESC: 4-in-1, 45A continuous, 55A peak
• ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• ESC Firmware: HAKRC_AT4G_Multi_32.9 (BLHeli_32)
• ESC Telemetry: Supported (to flight controller)
• Firmware: HAKRCF722D
• Receiver Support: CRSF, Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2
• Input Voltage: 2S-6S LiPo
• PCB: 8-layer, 2oz copper, resin-plugged, double pad design
• Components: 40V MOSFETs, industrial-grade LDO, Japanese Murata capacitors
• Brand: HAKRC

The HAKRC F722 BLHeli_32 AIO is the ideal choice for FPV enthusiasts seeking a compact, high-performance all-in-one flight controller for micro drones. With its dual gyroscopes, robust 45A ESC, and simplified design, it delivers exceptional stability and versatility for demanding builds.
