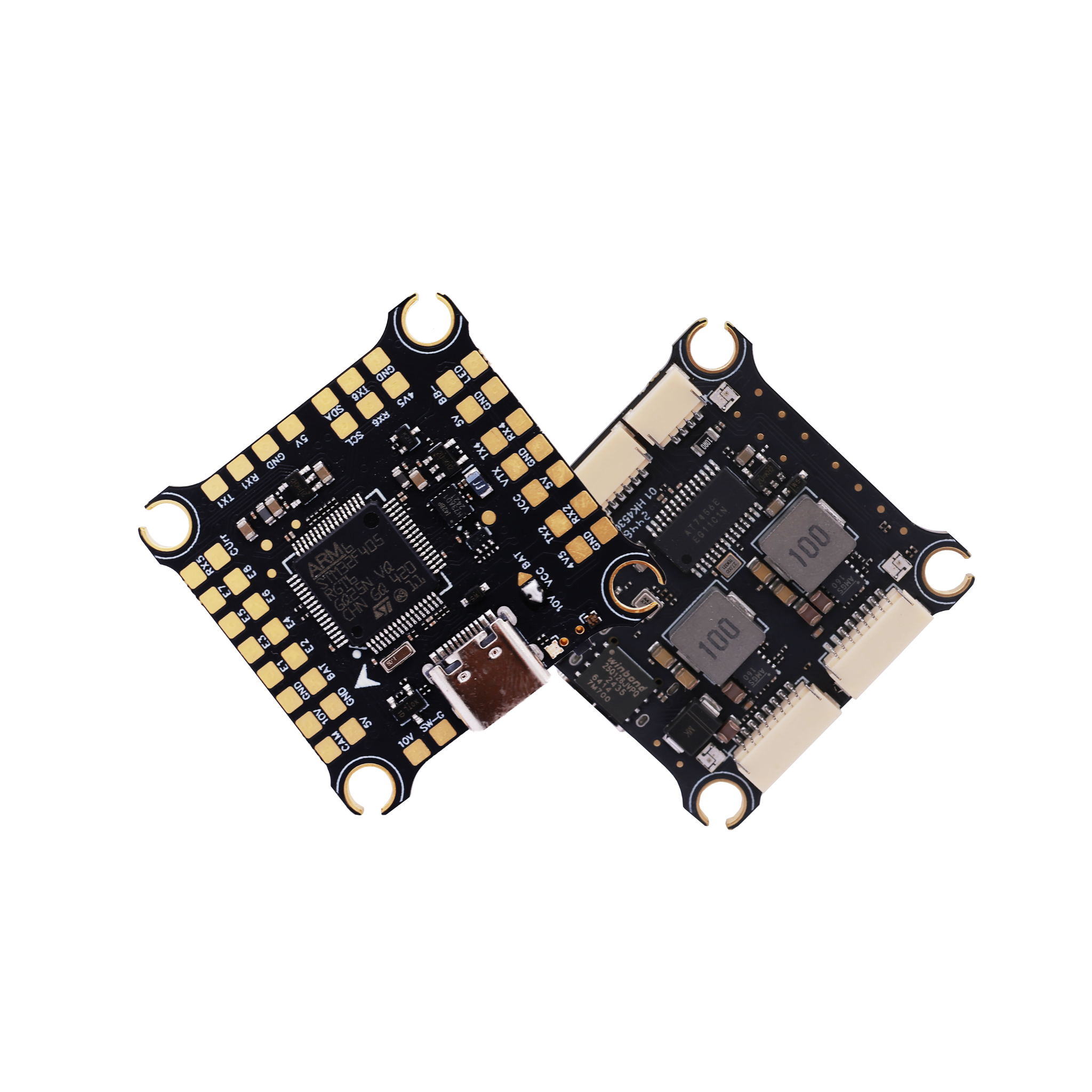

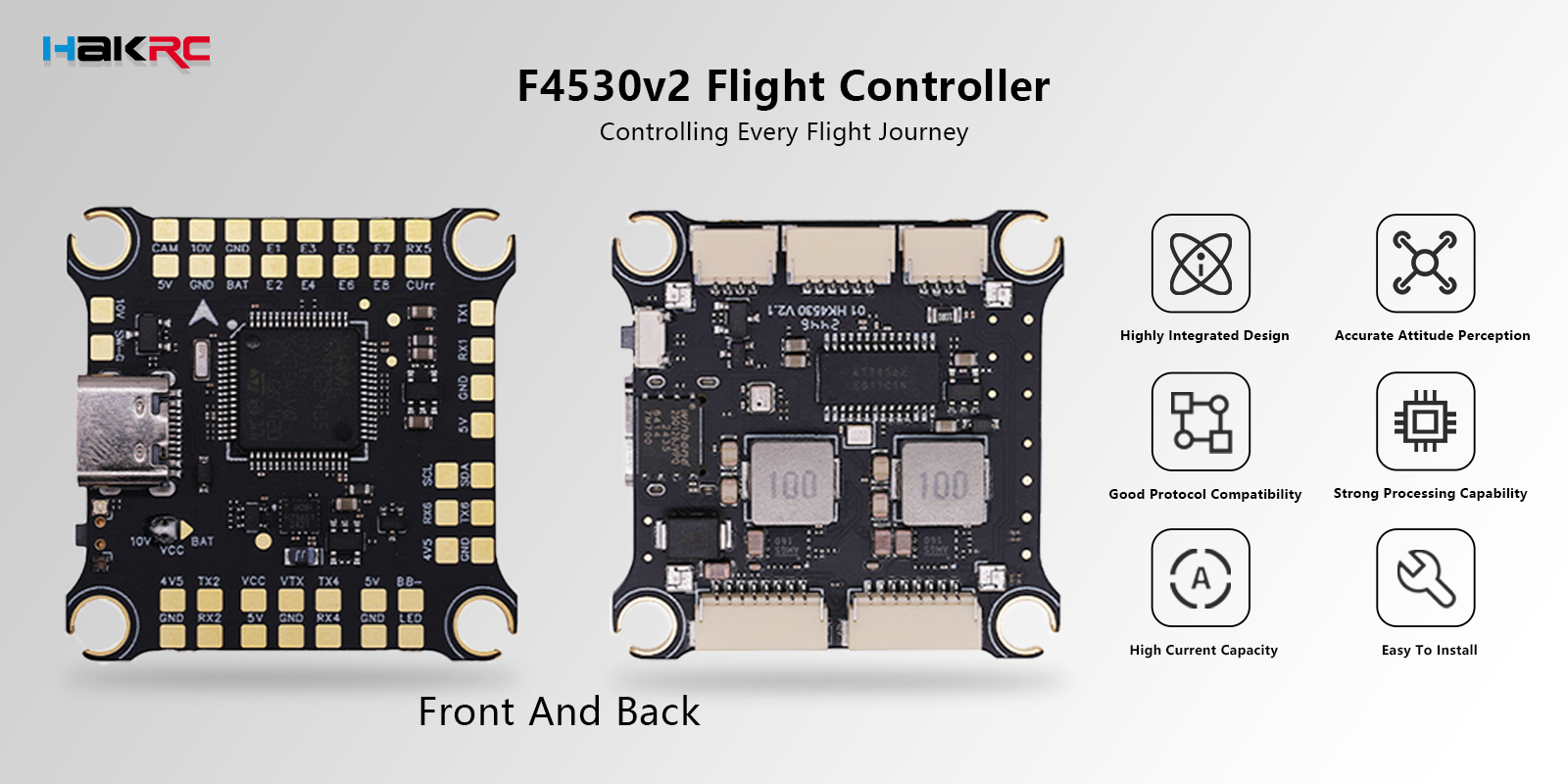

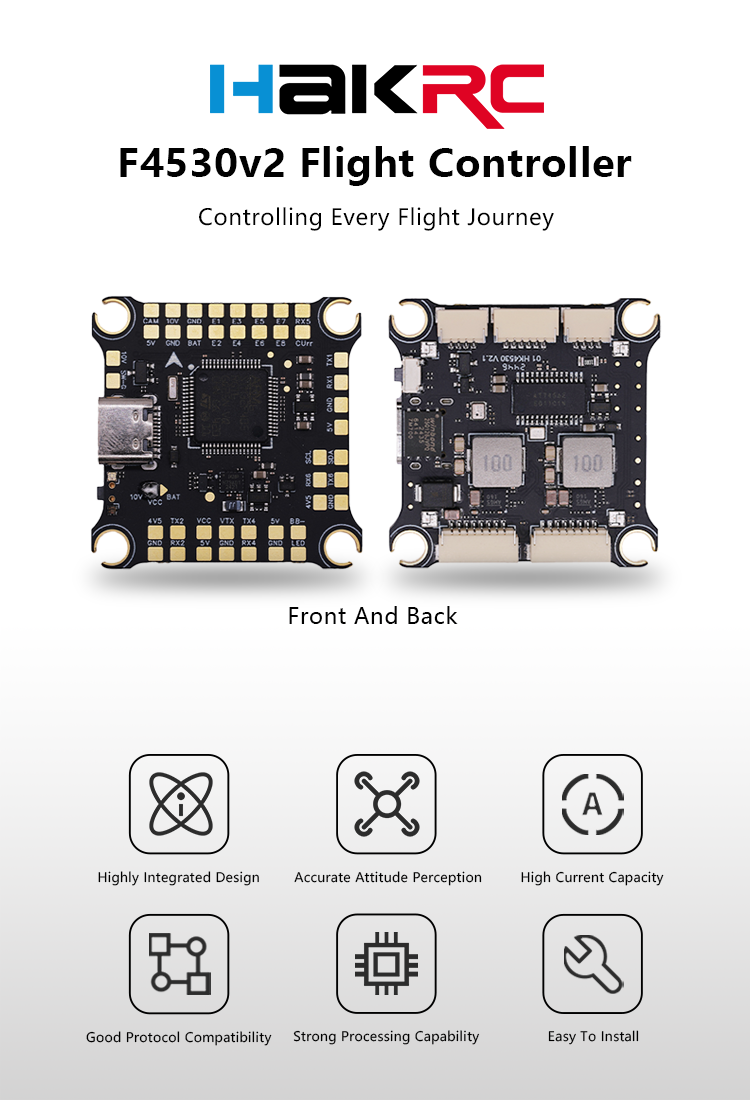

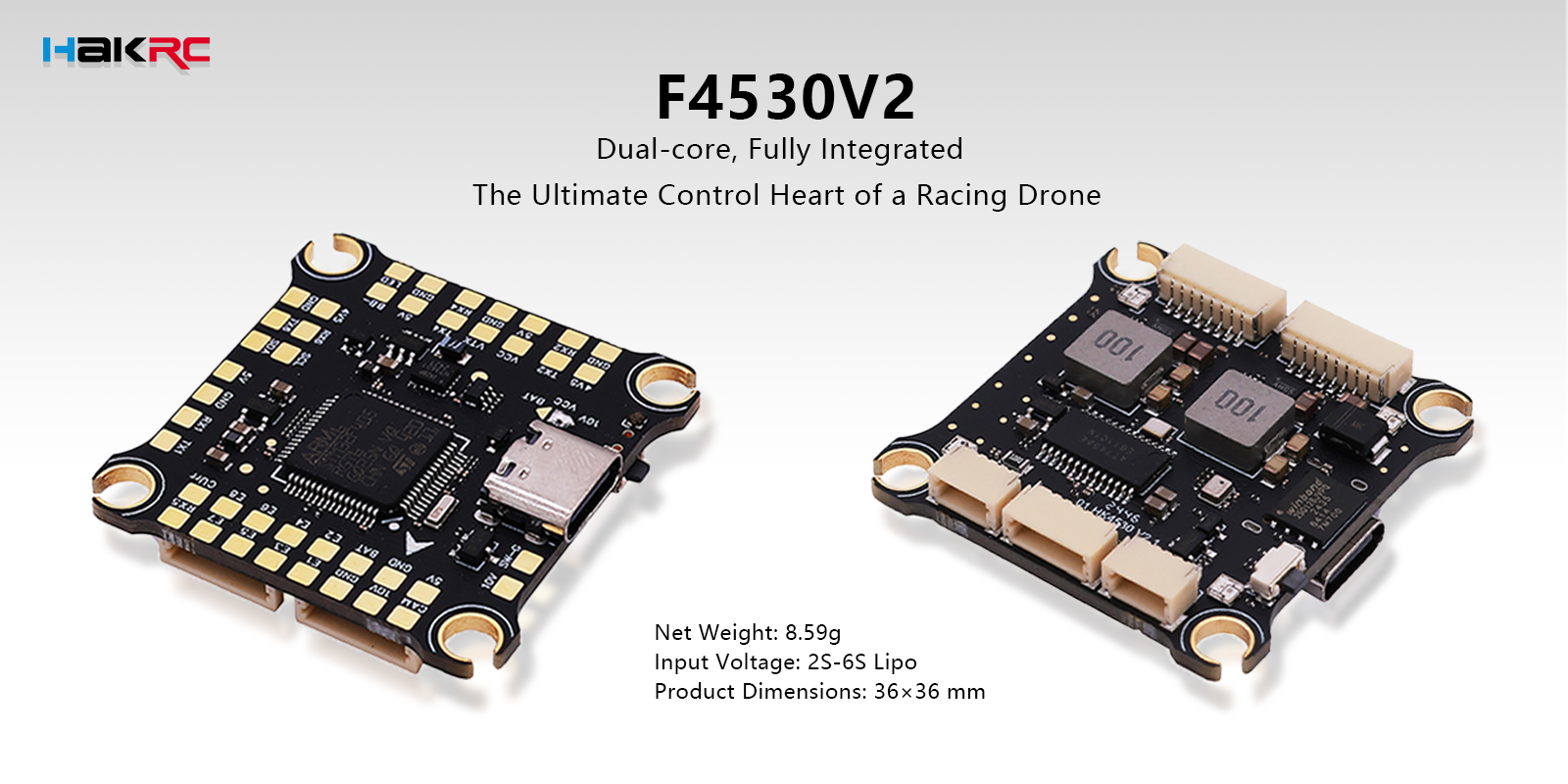

NZFPV Hakrc F4530 V2 Flight Controller

Advanced Flight Control and Sensors

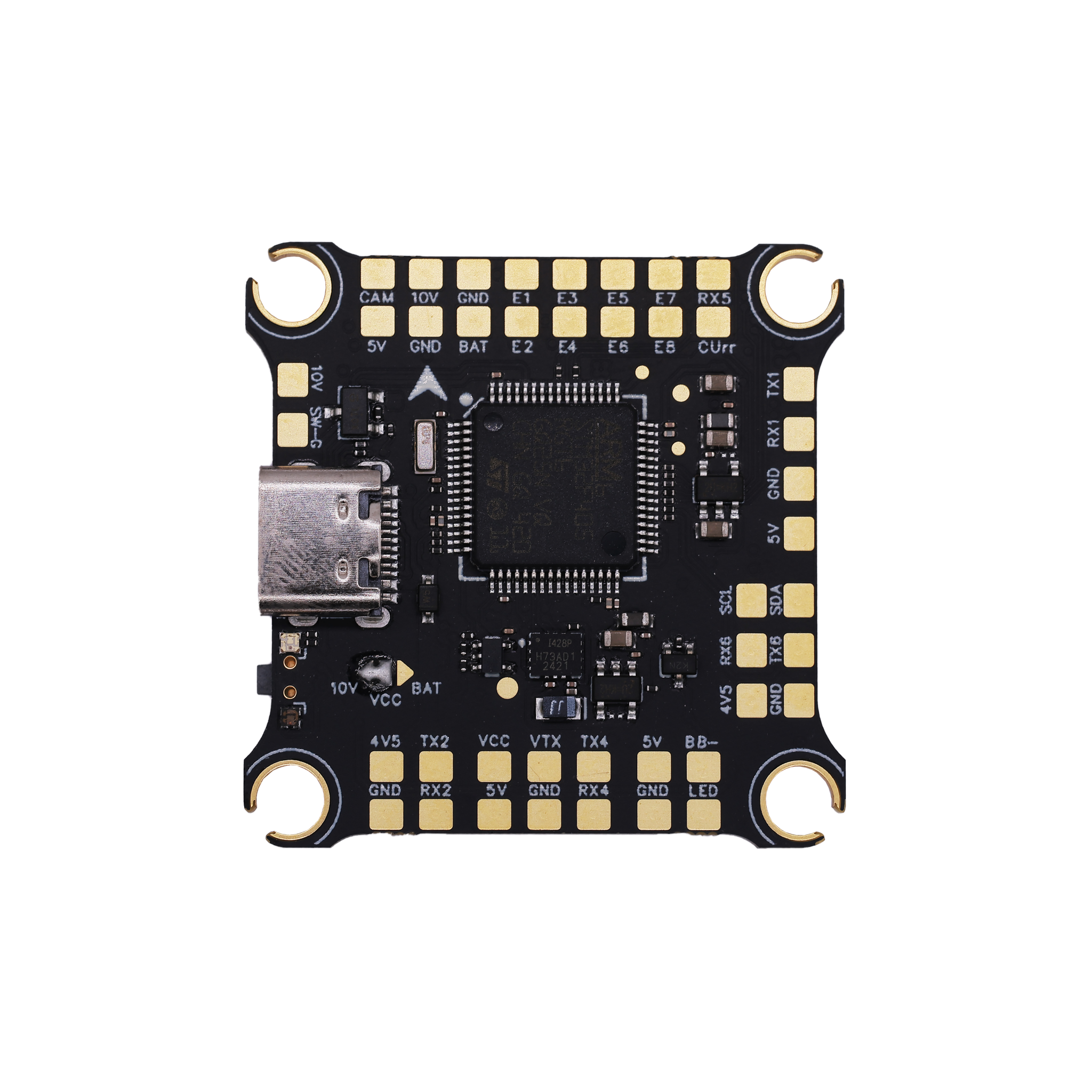

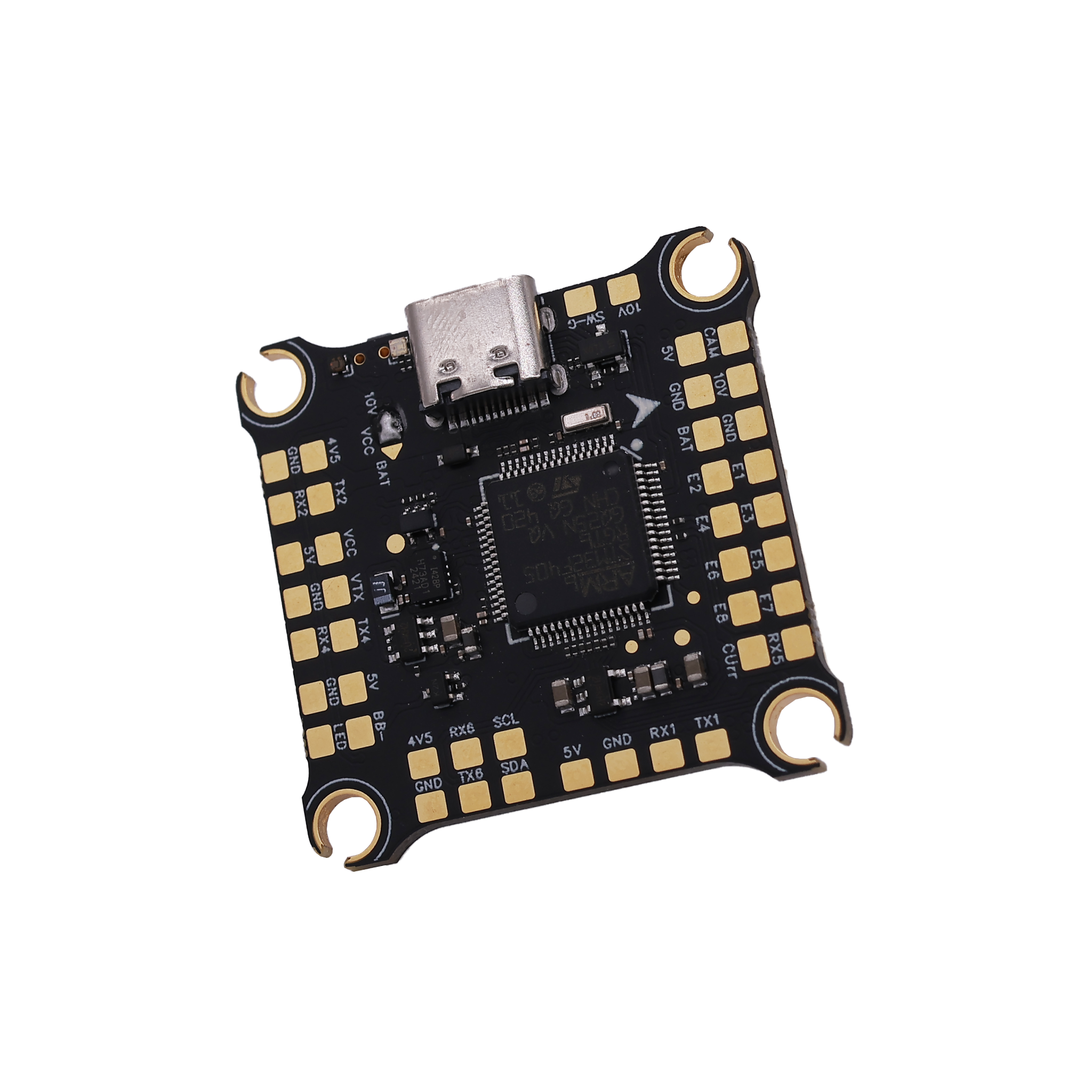

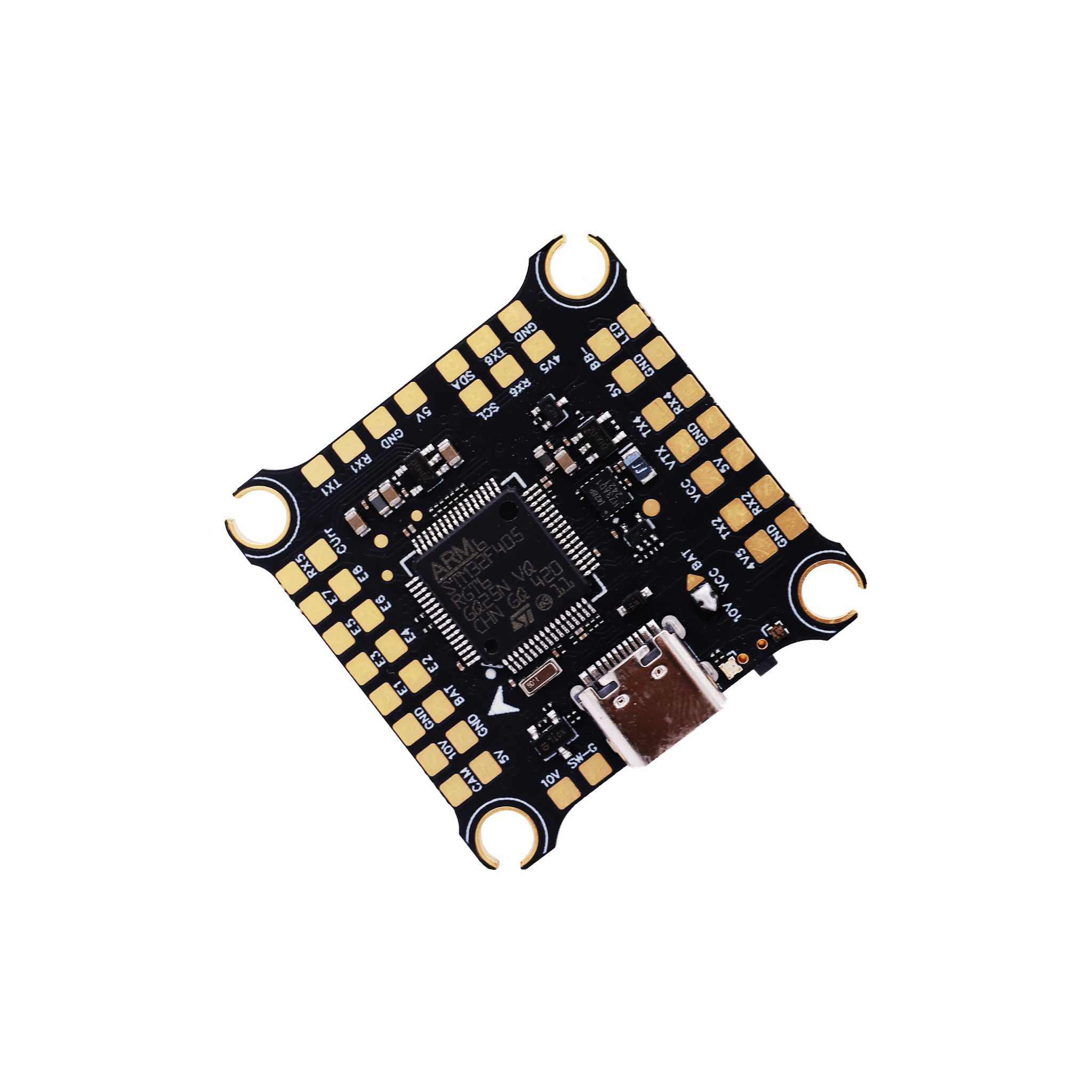

The HAKRC F4530V2 Flight Controller is powered by the STM32F405RET6 CPU and ICM42688 Inertial Measurement Unit (IMU) for accurate flight data processing. Running the HAKRCF405V2 firmware, it supports Betaflight, INAV, and ArduPilot for flexible flight applications. The board includes an AT7456E chip for On-Screen Display (OSD), an integrated barometer for altitude hold, and a 16MB black box for flight logging. It features a built-in current sensor, 5V/3A BEC, and 10V/2.5A BEC for stable power delivery. Four onboard programmable color LEDs and a reserved 10V power supply with customizable remote control channel enable dynamic LED strip on/off control. Ground station-configurable video transmission power enhances parameter tuning flexibility.

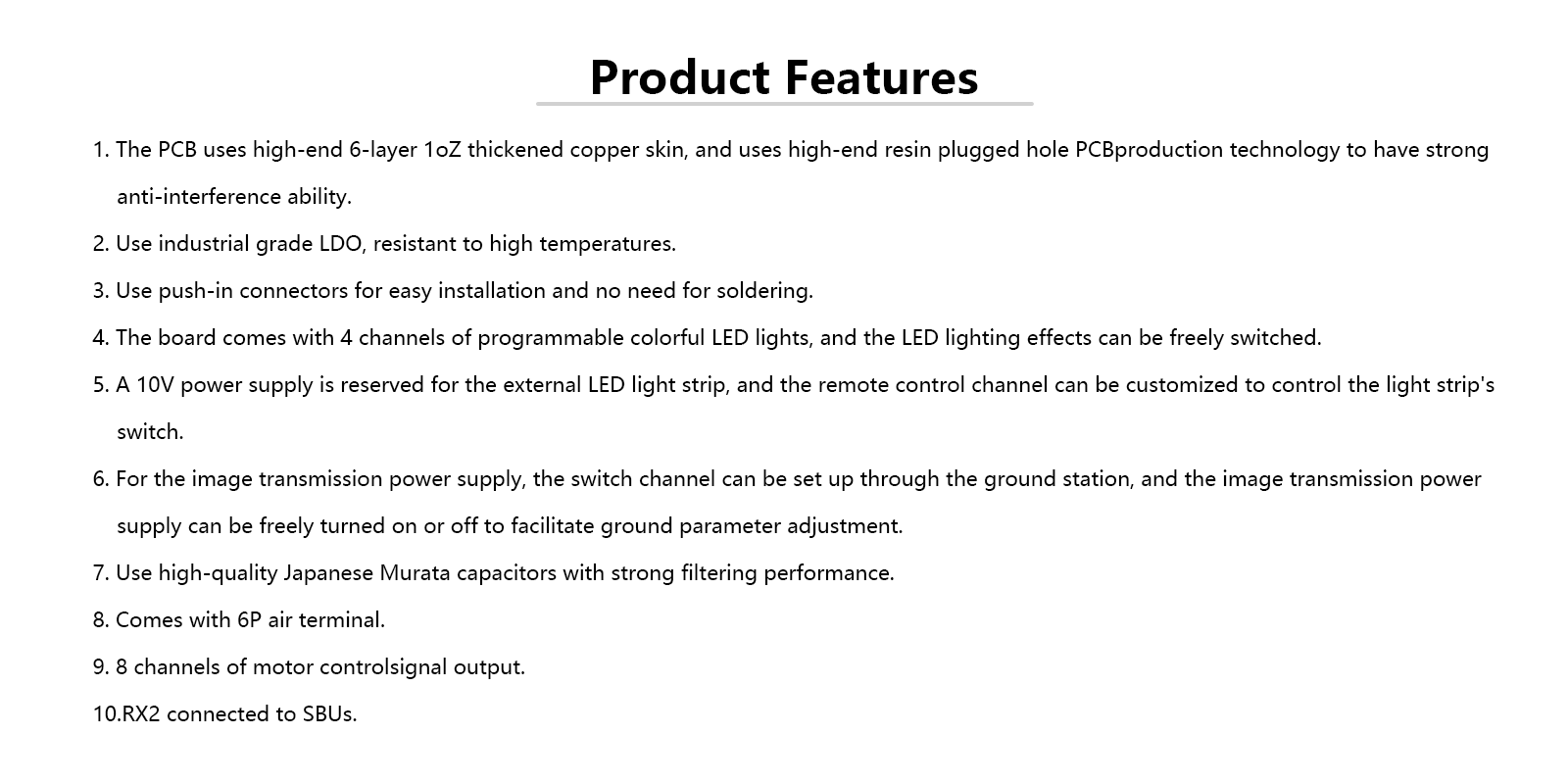

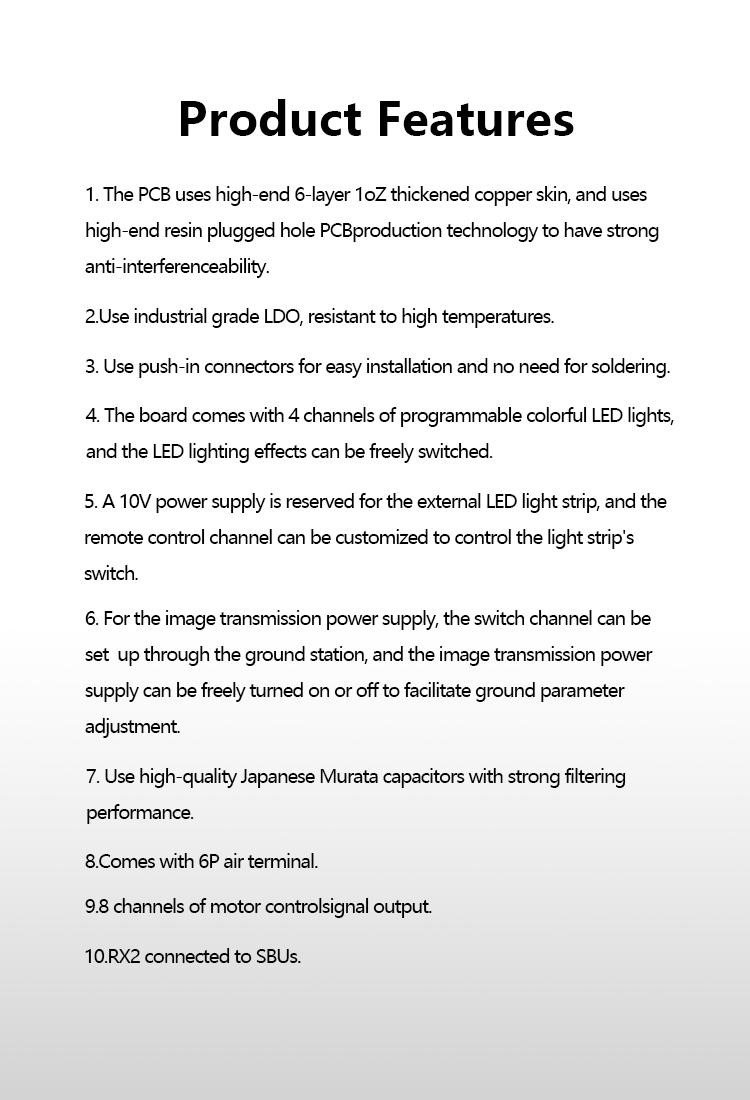

High-Quality PCB Construction

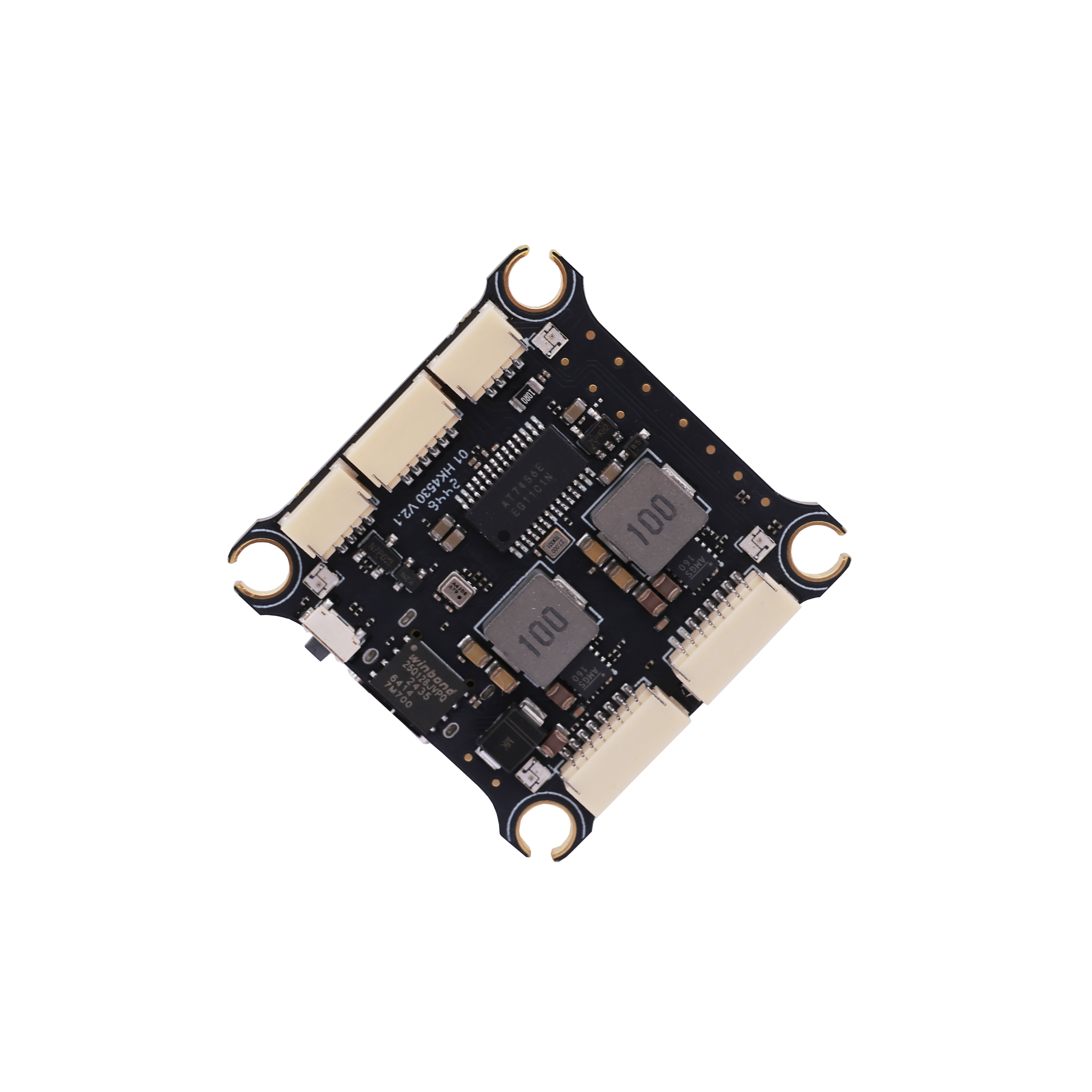

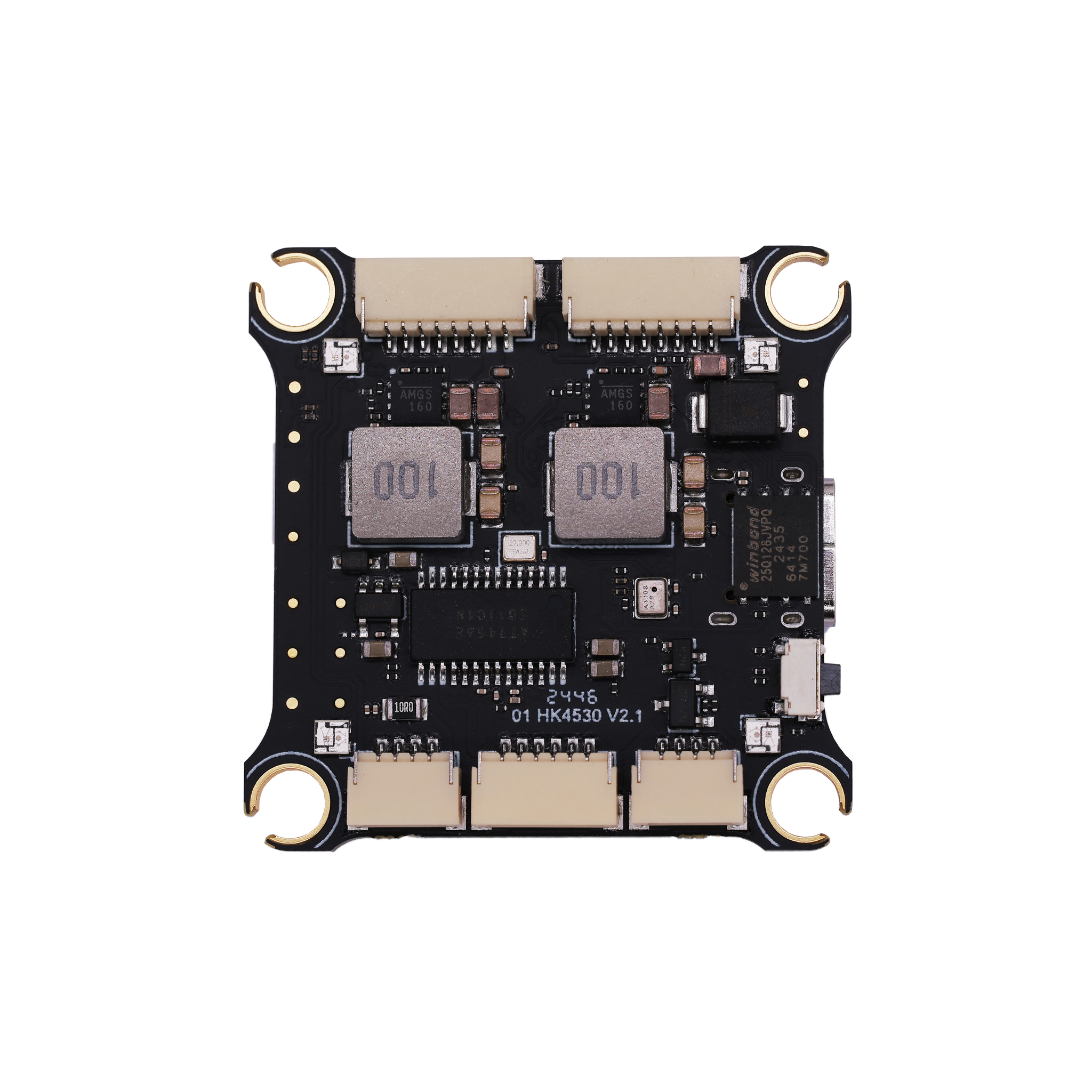

The F4530V2 is built on a premium 6-layer PCB with 1oz thickened copper skin and resin-plugged hole technology, delivering exceptional anti-interference and durability. Industrial-grade LDOs provide high-temperature resistance, and high-quality Japanese Murata capacitors ensure superior filtering performance. This robust construction guarantees reliable operation in demanding FPV and RC environments.

Compact and User-Friendly Design

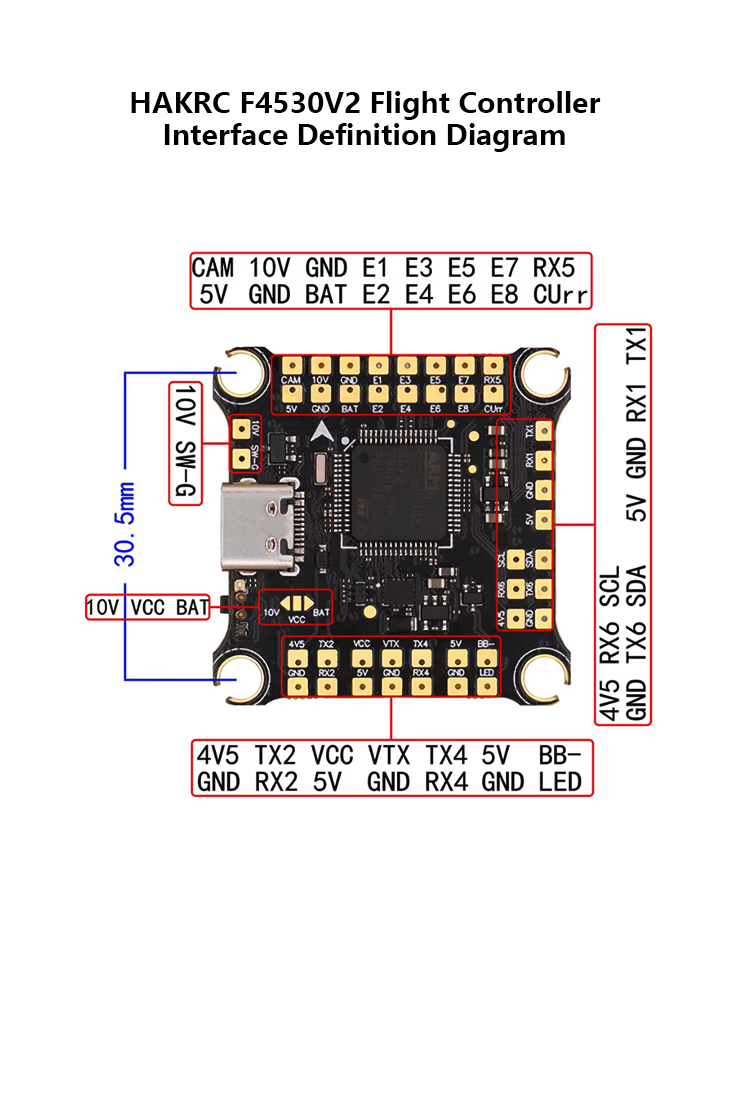

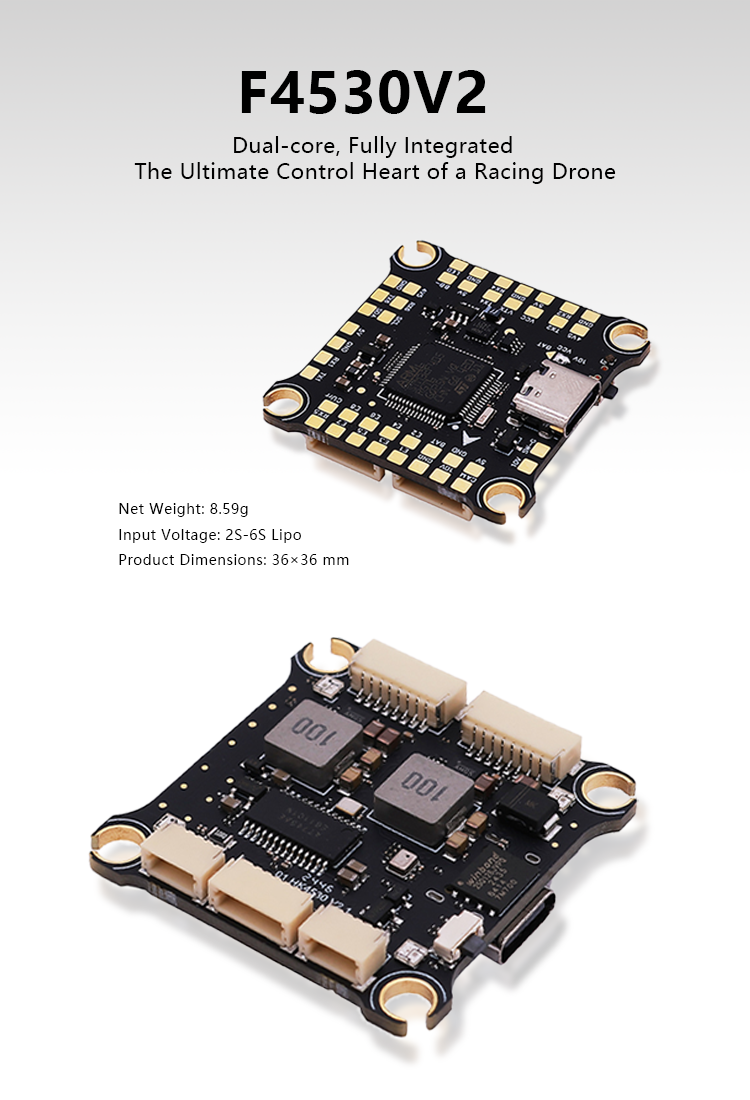

Measuring 36mm x 36mm with 30.5mm x 30.5mm mounting holes, the F4530V2 is compact and weighs 8.5g, ideal for various FPV and RC builds. In-line connectors and a 6P sky terminal seat enable solder-free, easy installation. Supporting 2S-6S LiPo batteries, the board provides 8 motor outputs for versatile quadcopter or multi-rotor setups. RX2 connects to SBUS, ensuring compatibility with multiple receiver protocols, including Frsky, Futaba, Flysky, TBS Crossfire, and DSMX/DSM2.

Enhanced User Experience

The HAKRC F4530V2 Flight Controller elevates the RC experience with:

• Simplified Installation: In-line connectors and a 6P sky terminal seat eliminate soldering, streamlining wiring for fast, clean builds.
• Precise Flight Control: The STM32F405 CPU and ICM42688 IMU deliver smooth, accurate flight performance with reliable control algorithms.
• Comprehensive Features: Built-in OSD, barometer, 16MB black box, four programmable LEDs, and video transmission power control provide flight data, altitude hold, logging, and customization without extra modules.
• Robust Power Management: Dual BECs (5V/3A and 10V/2.5A) and a current sensor support power-intensive setups with stability.
• Wide Compatibility: Supports multiple receiver protocols (Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2), 2S-6S LiPo input, and Betaflight/INAV/ArduPilot for diverse RC applications.
• Advanced Customization: Four onboard programmable LEDs, customizable LED strip control, and ground station-configurable video transmission power enhance personalization and tuning.

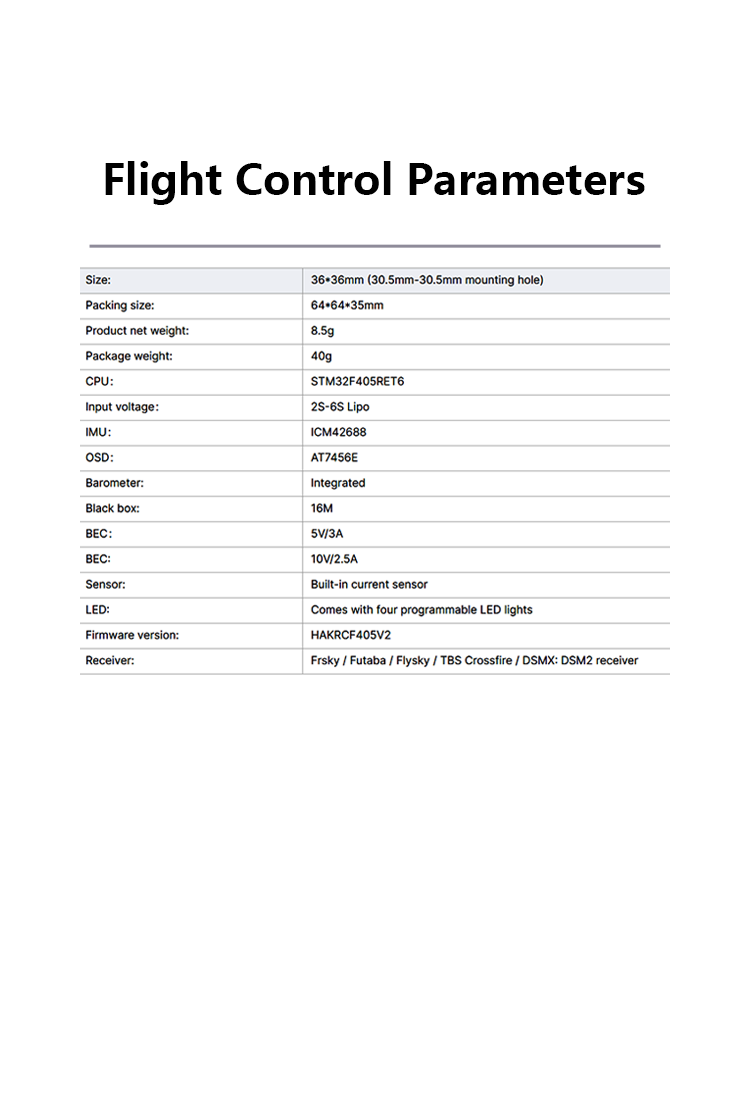

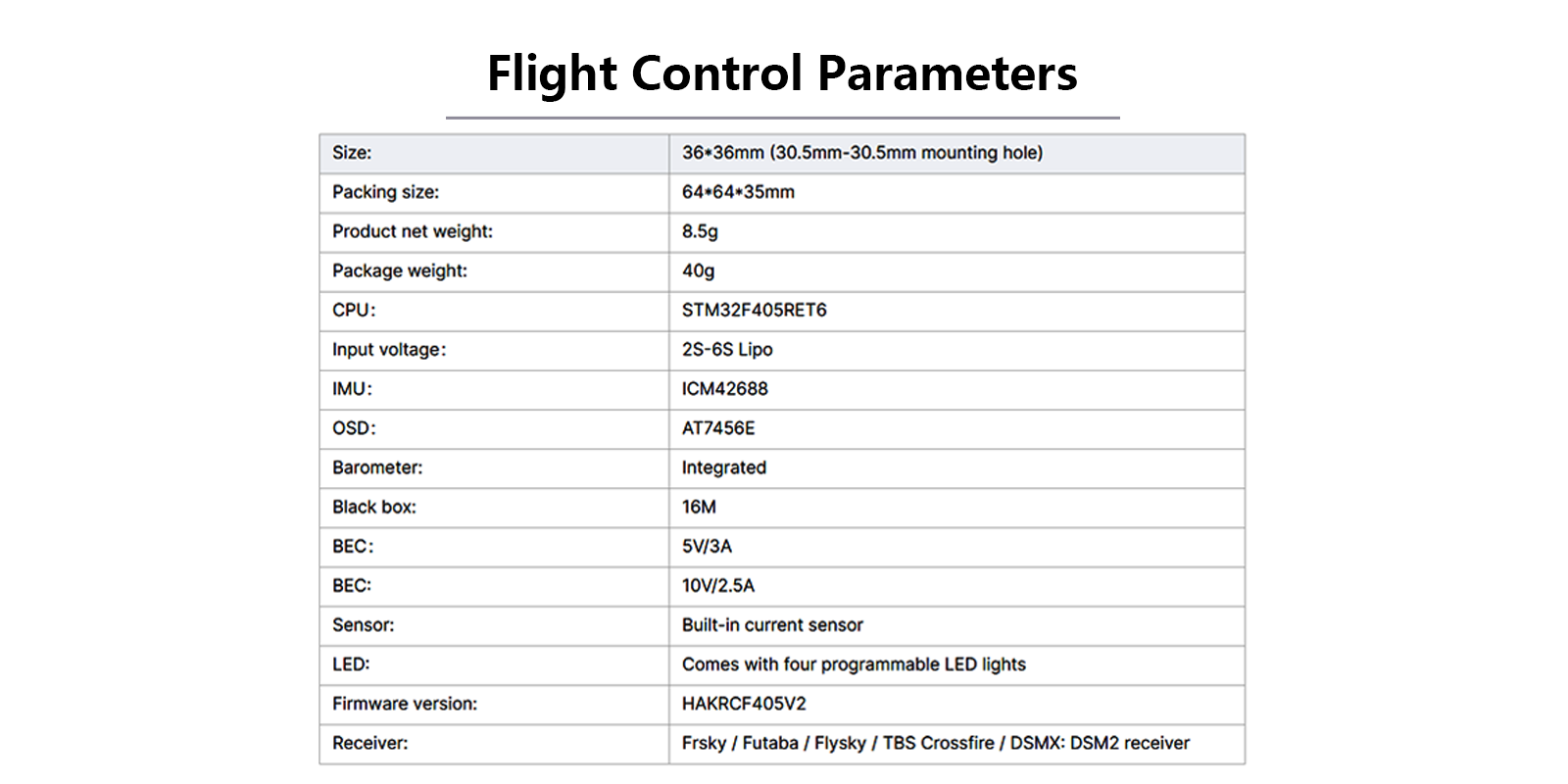

Technical Specifications

• CPU: STM32F405RET6
• IMU: ICM42688
• OSD: AT7456E
• Barometer: Integrated
• Black Box: 16MB
• BEC: 5V/3A, 10V/2.5A
• Sensor: Built-in current sensor
• LED Support: Four onboard programmable color LEDs, external LED strip (10V power, remote control channel)
• Firmware: HAKRCF405V2 (Supports Betaflight, INAV, ArduPilot)
• Receiver Support: Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2
• Motor Outputs: 8
• Input Voltage: 2S-6S LiPo

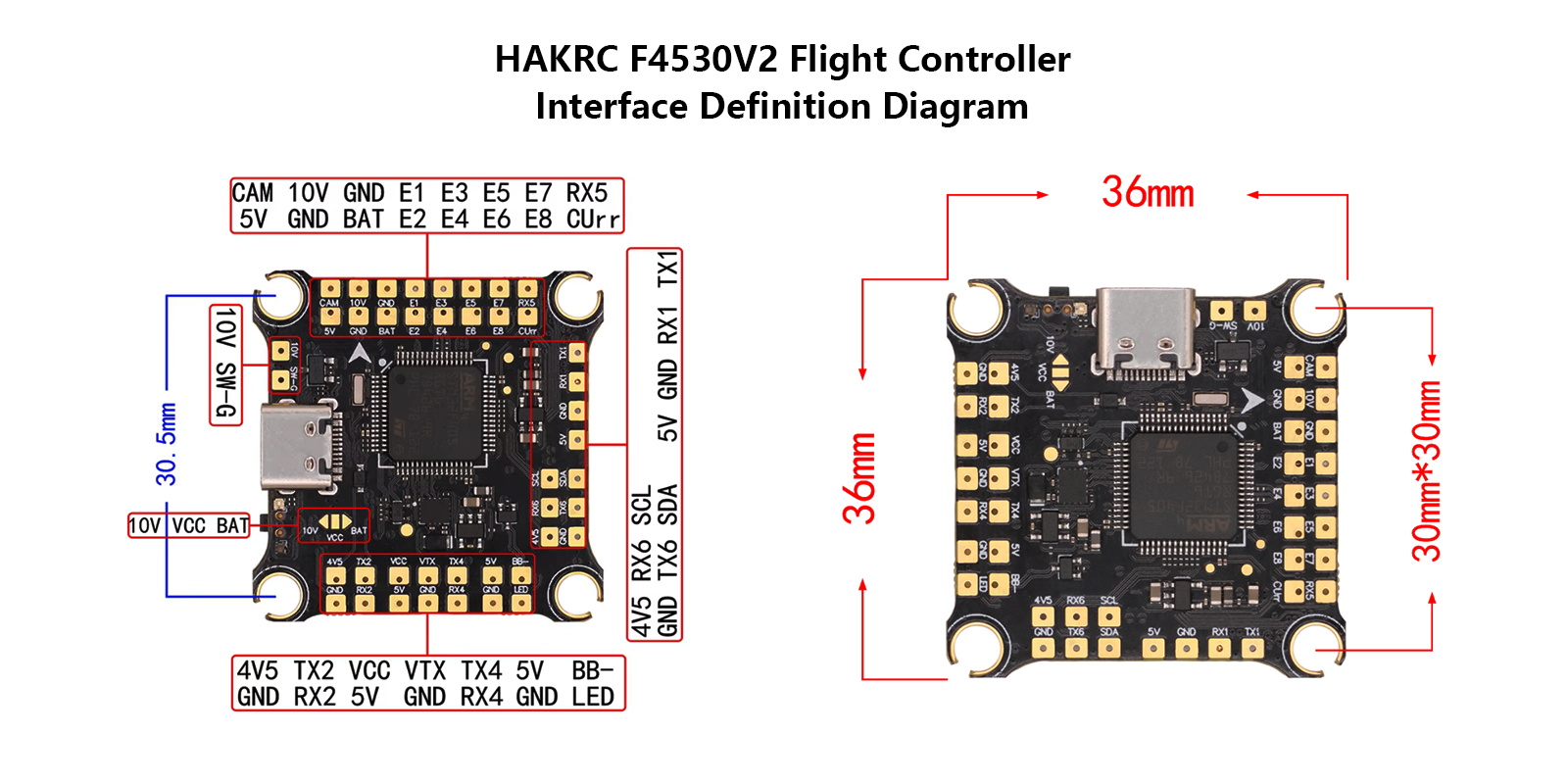

• Dimensions: 36mm x 36mm (30.5mm x 30.5mm mounting holes)
• Weight (Board): 8.5g
• Total Weight: 40g
• Brand: HAKRC

The HAKRC F4530V2 Flight Controller is the ultimate choice for RC enthusiasts seeking a durable, feature-rich, and user-friendly flight controller for FPV drones and RC models. With its advanced LED control, video transmission power management, and solder-free design, it delivers exceptional performance and versatility for your next build.
