NZFPV Hakrc F4126 40A AIO F411 CPU 2S-6S BLHeli_S
$59.99 USD $59.99 USD $71.99 USD
Sale 16.67% $12.00 USD (16.67%)
In stock: 999
Description

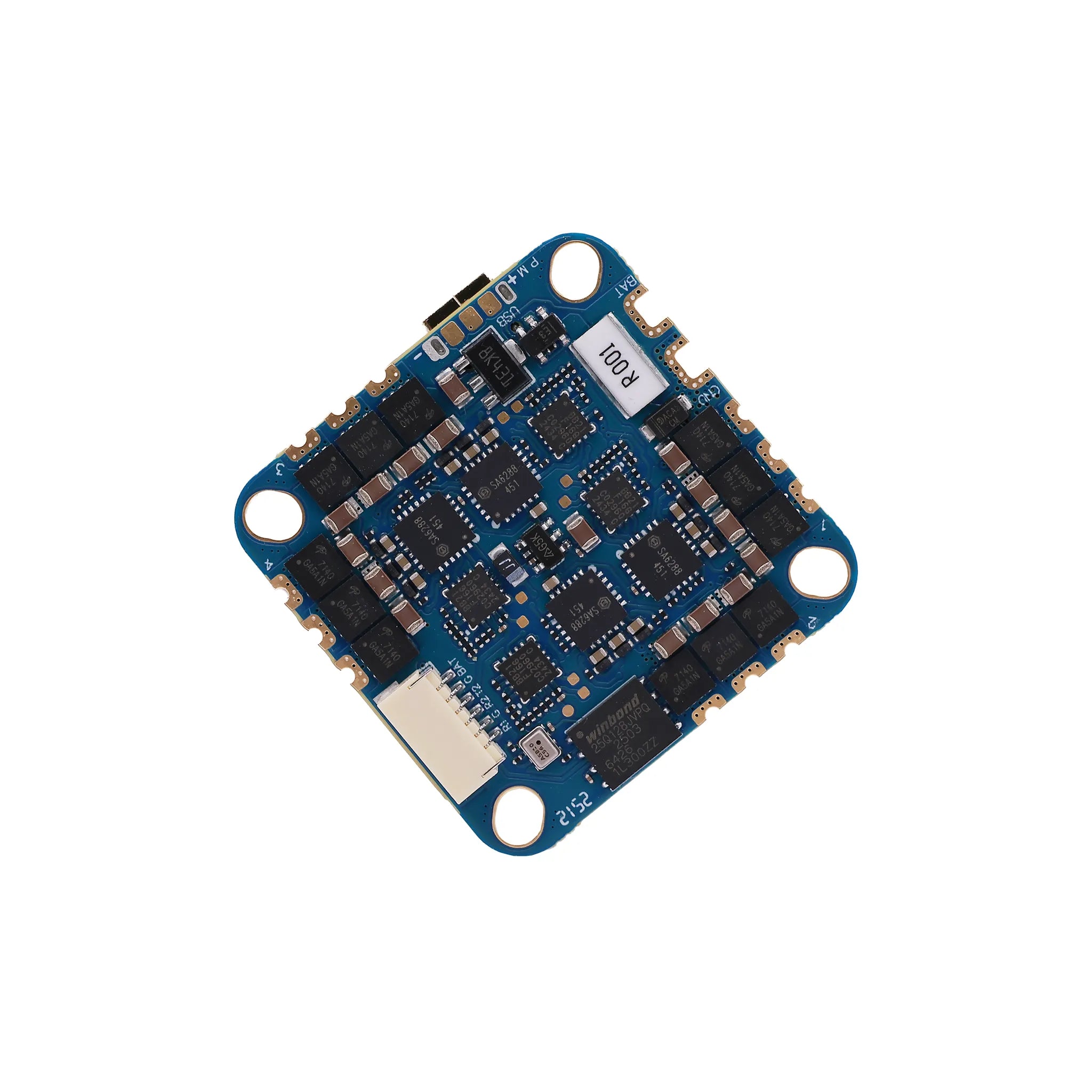

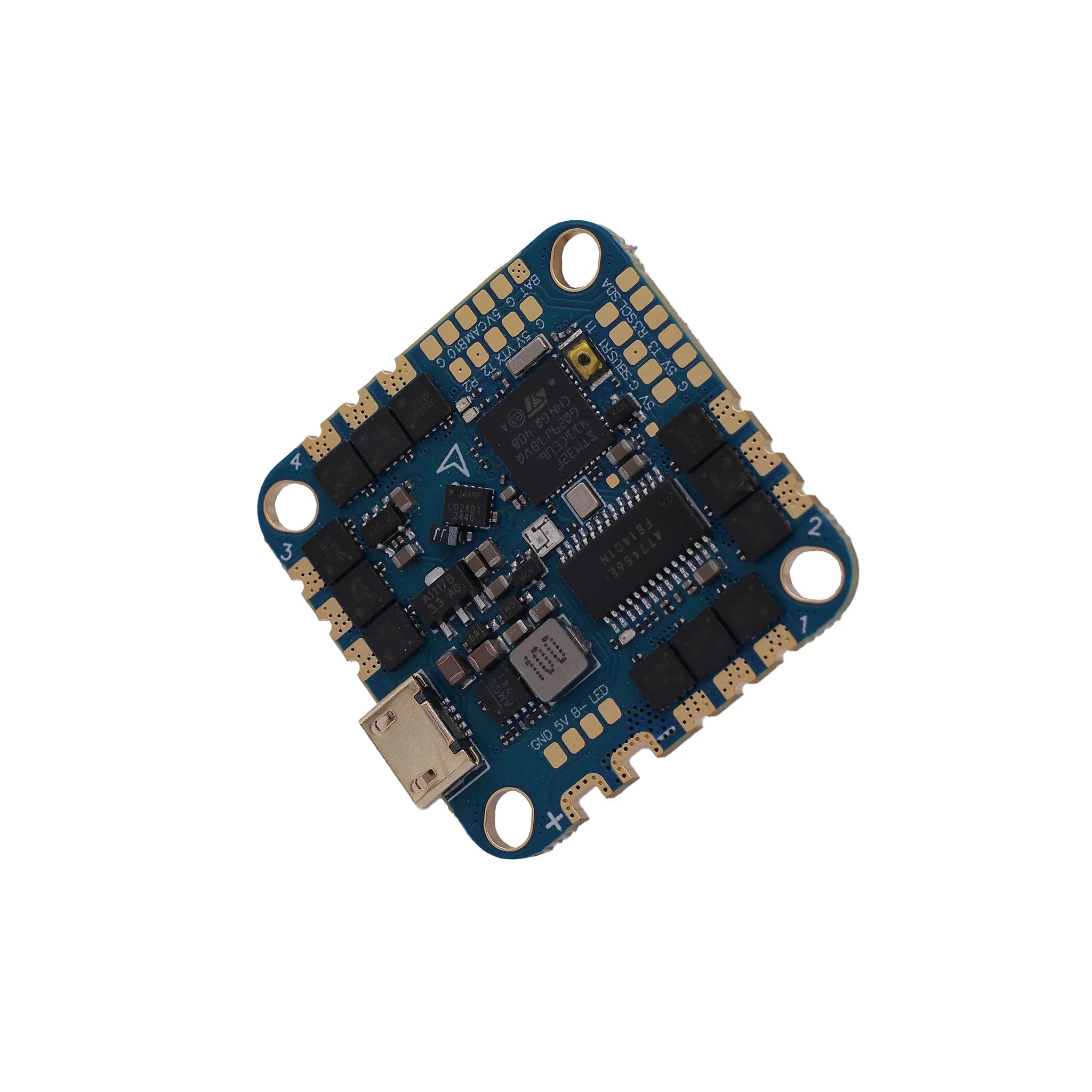

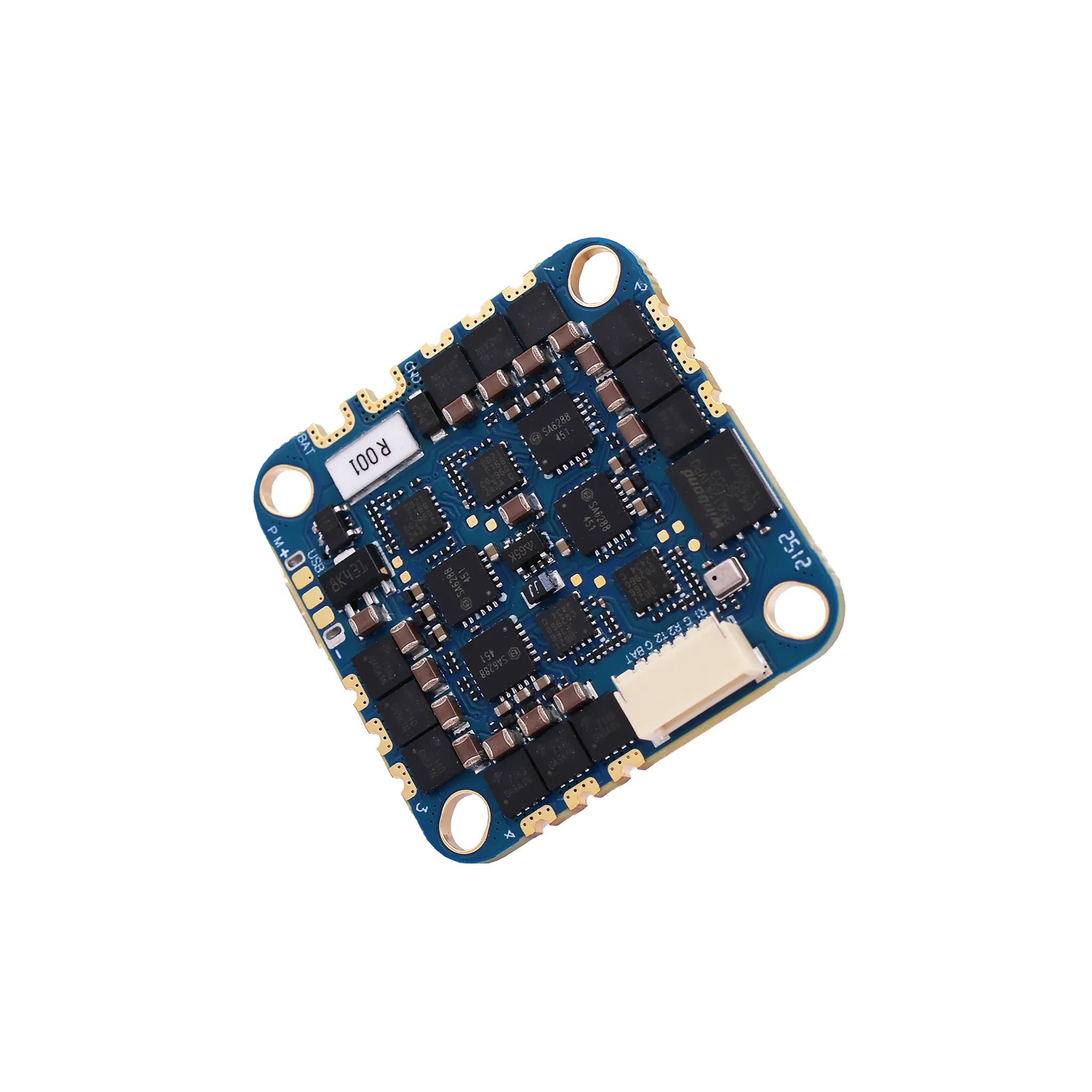

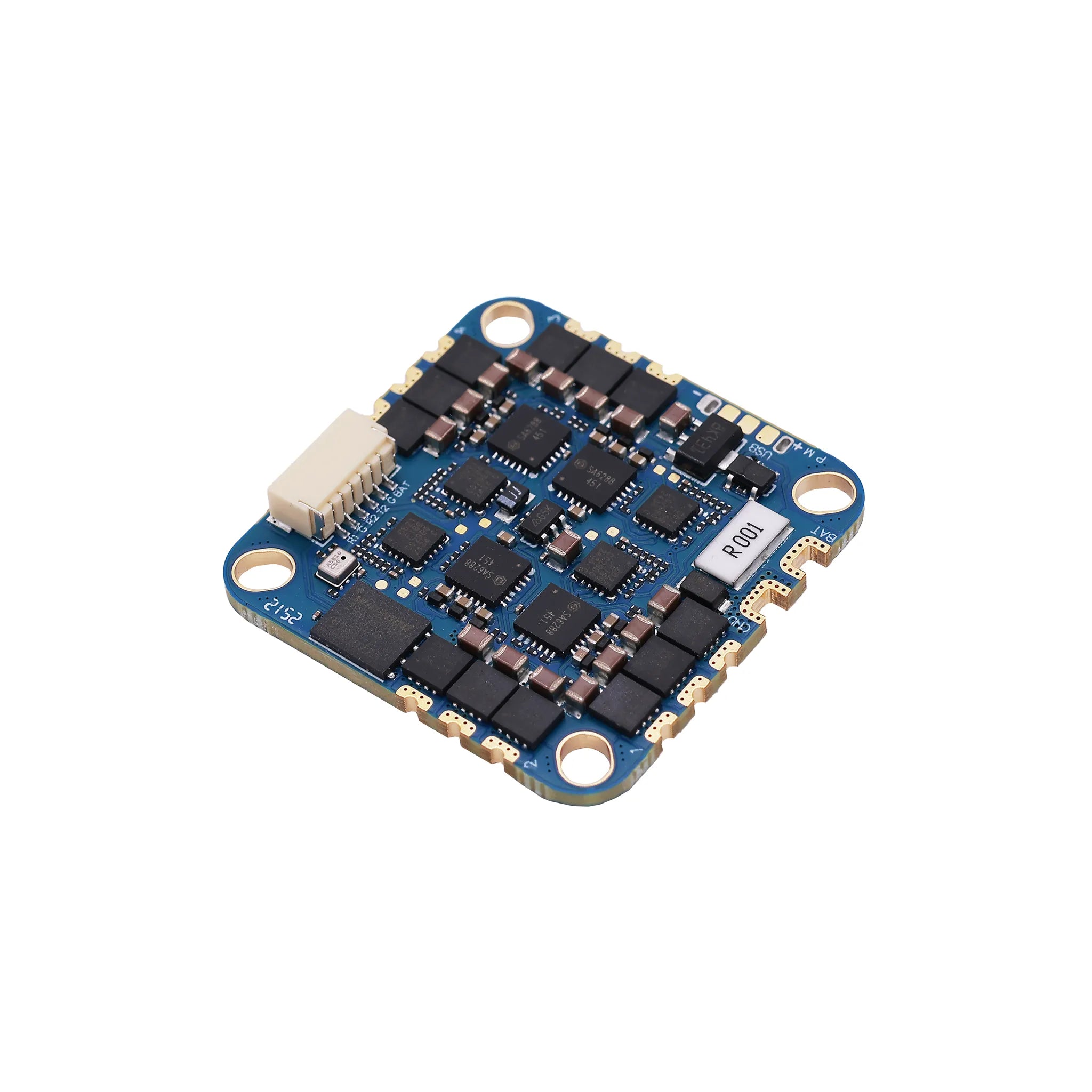

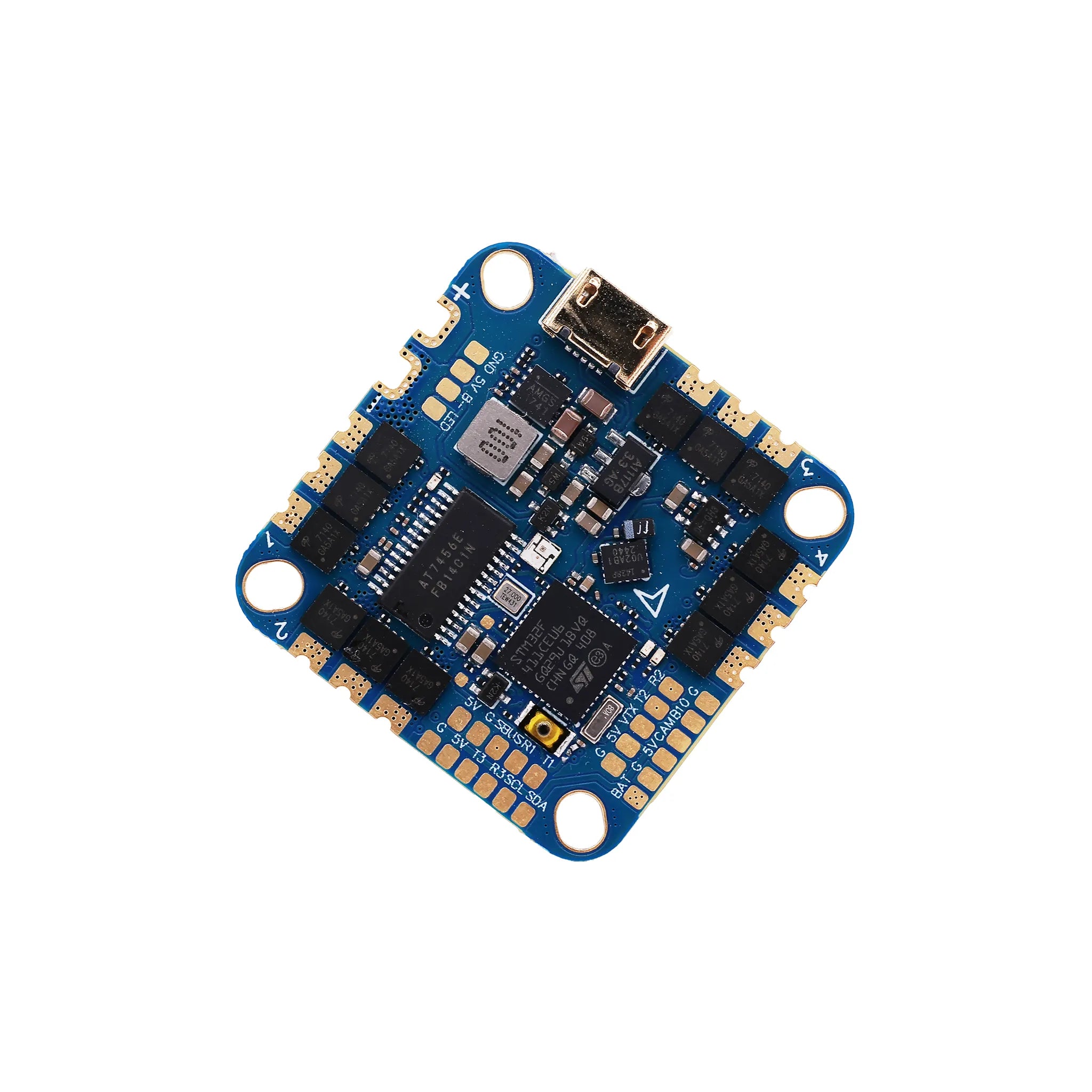

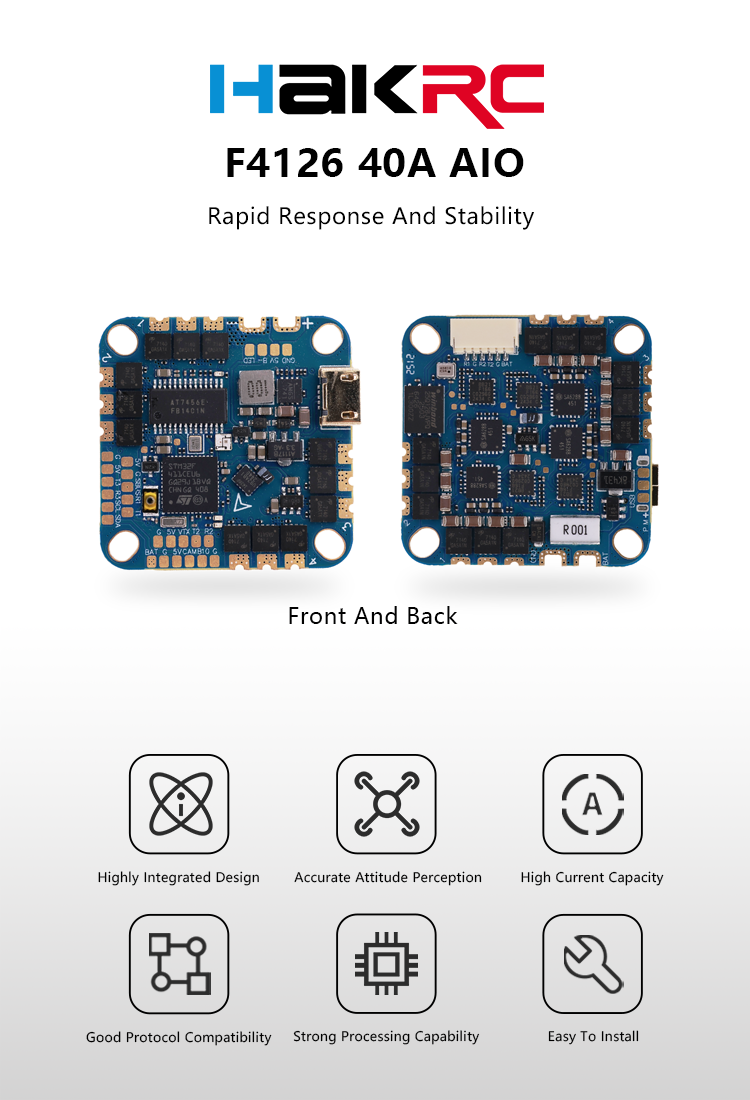

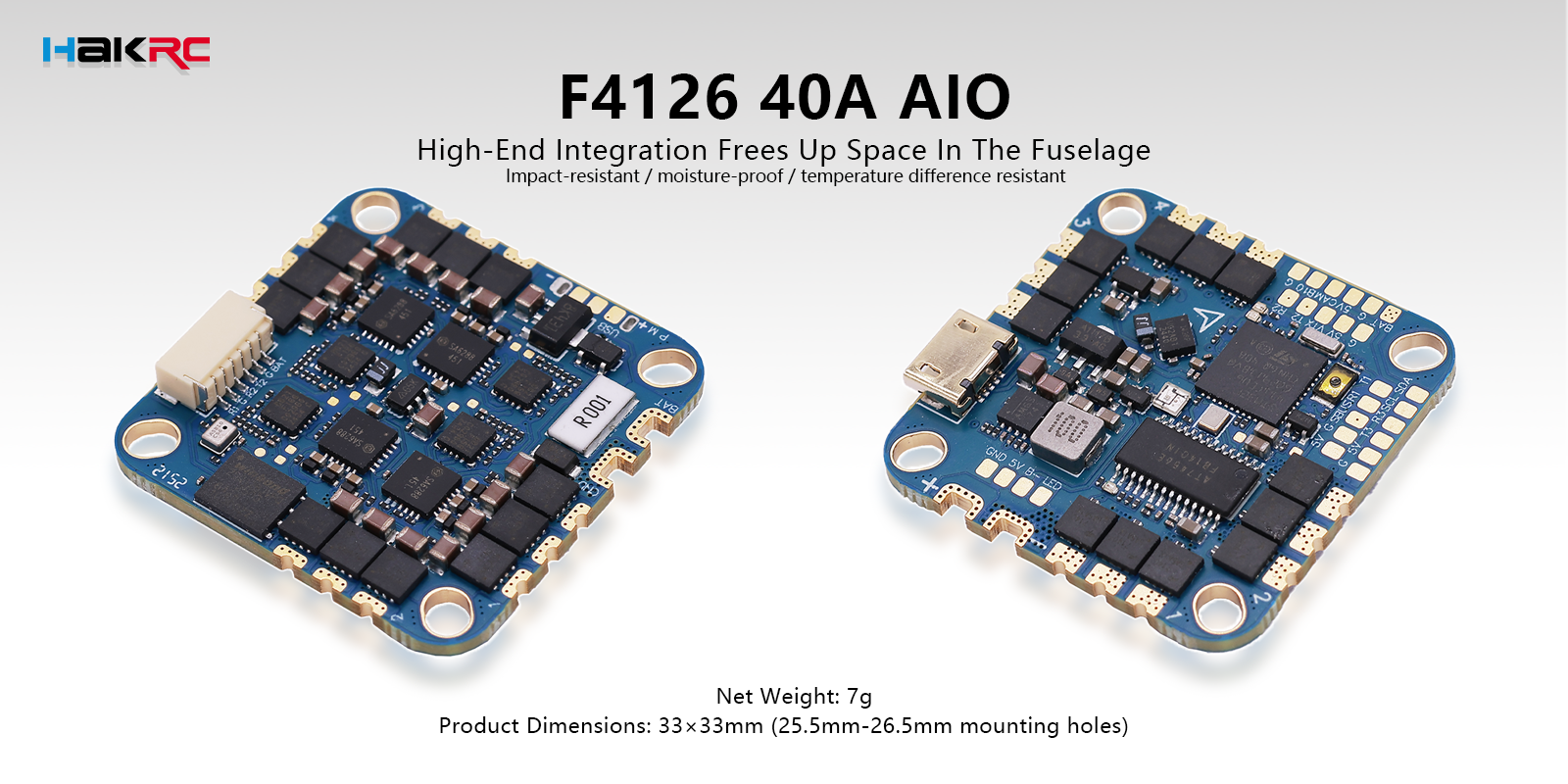

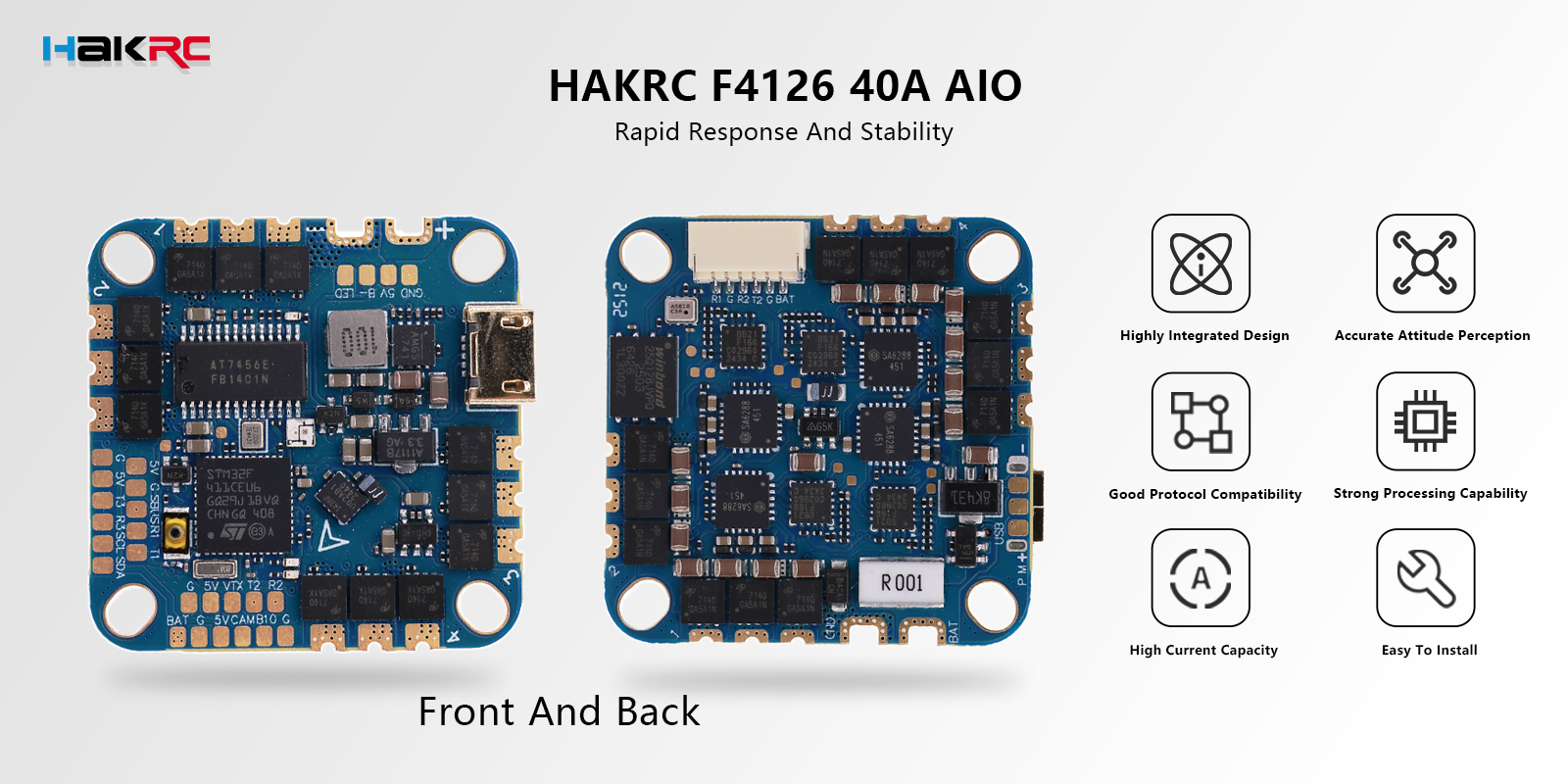

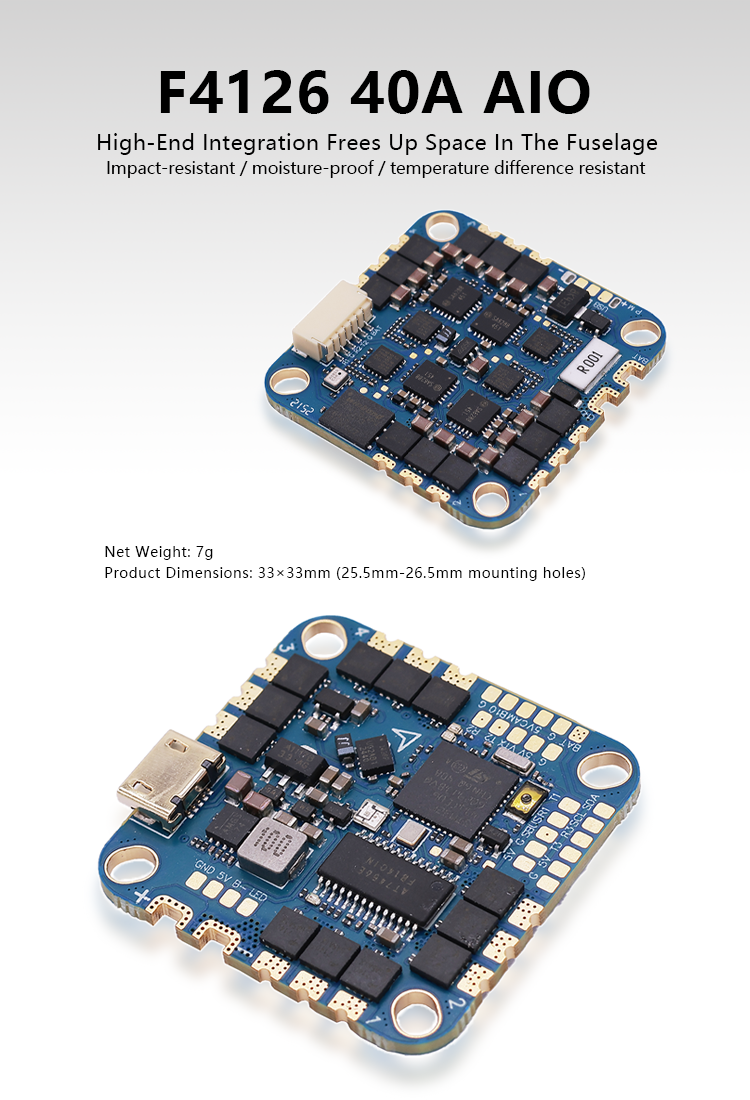

The HAKRC F4126 40A AIO is a high-performance All-In-One flight controller and ESC solution, engineered for demanding FPV applications. It integrates a STM32F411CEU6 flight controller with an ICM42688 IMU and a robust 40A BLHeli_S ESC onto a compact board supporting 2S-6S LiPo input. Featuring a high-end 8-layer PCB with 2oz copper, imported 40V MOSFETs, and Japanese Murata capacitors, this AIO ensures strong current handling and excellent heat dissipation in a 25.5mm mounting pattern. It also includes an AT7456E OSD, integrated barometer, 16MB black box, and programmable LED.
Elegant Packaging
30-Day Returns
24/7 Support
Global Free Shipping

Detailed specification

Robust 40A BLHeli_S ESC

The HAKRC F4126 40A AIO features an integrated 4-in-1 ESC delivering 40A continuous current and 45A peak, ideal for powerful FPV drone setups on 2S-6S LiPo batteries. Running BLHELI_S (G-H-30) firmware, it supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600 protocols for smooth, responsive motor control. Imported 40V high-current-resistant MOSFETs ensure longevity and strong load capability, enhancing reliability under demanding conditions.

Advanced Flight Control and Sensors

The flight controller is powered by the STM32F411CEU6 CPU and ICM42688 Inertial Measurement Unit (IMU), providing precise flight data processing with HAKRCF411D firmware. It includes an AT7456E chip for On-Screen Display (OSD), an integrated barometer for altitude hold, and a 16MB black box for flight log recording. A built-in current sensor and 5V/1.5A BEC support essential peripherals, while programmable LED support adds visual customization.

High-Quality Construction and Components

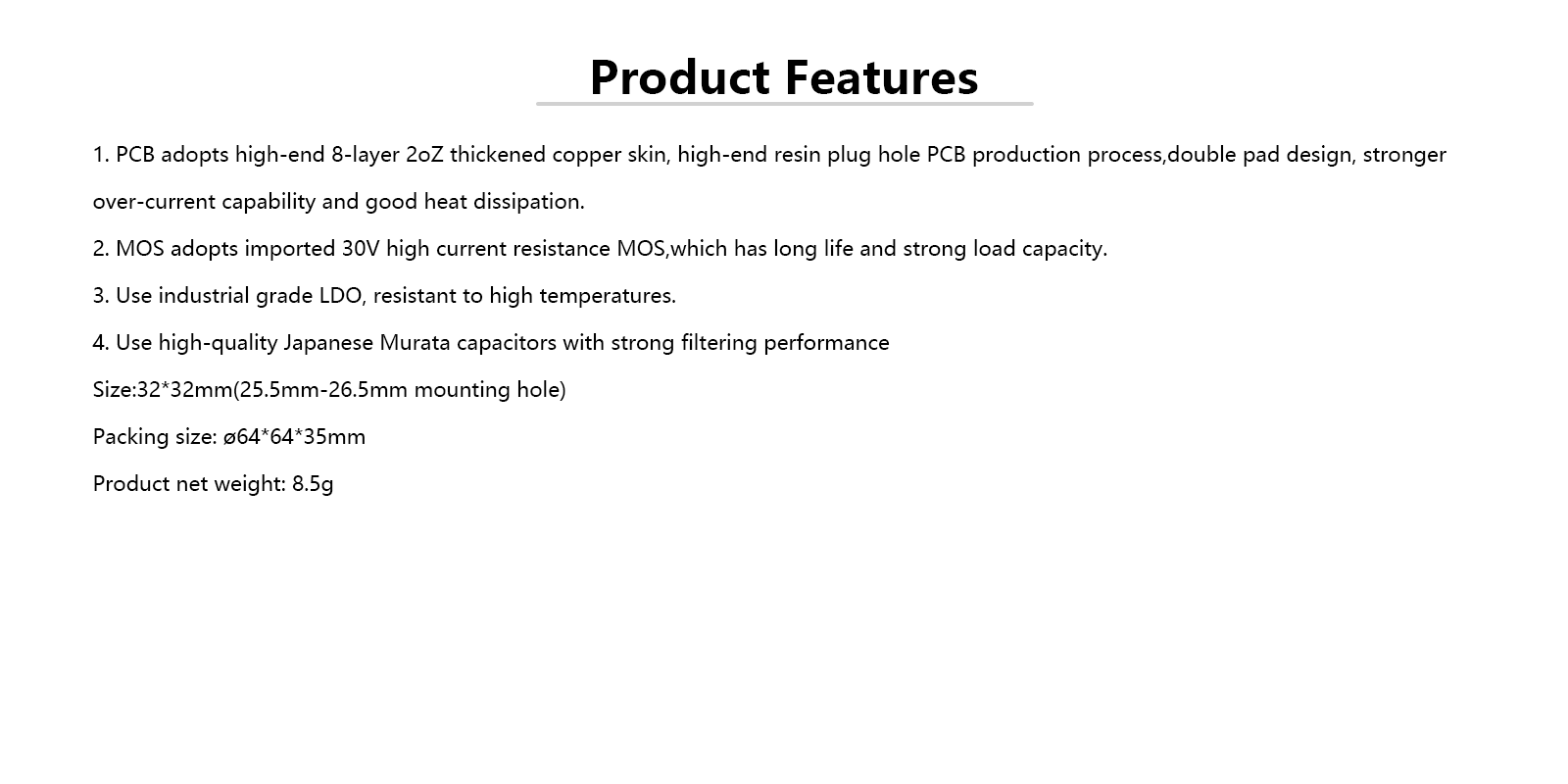

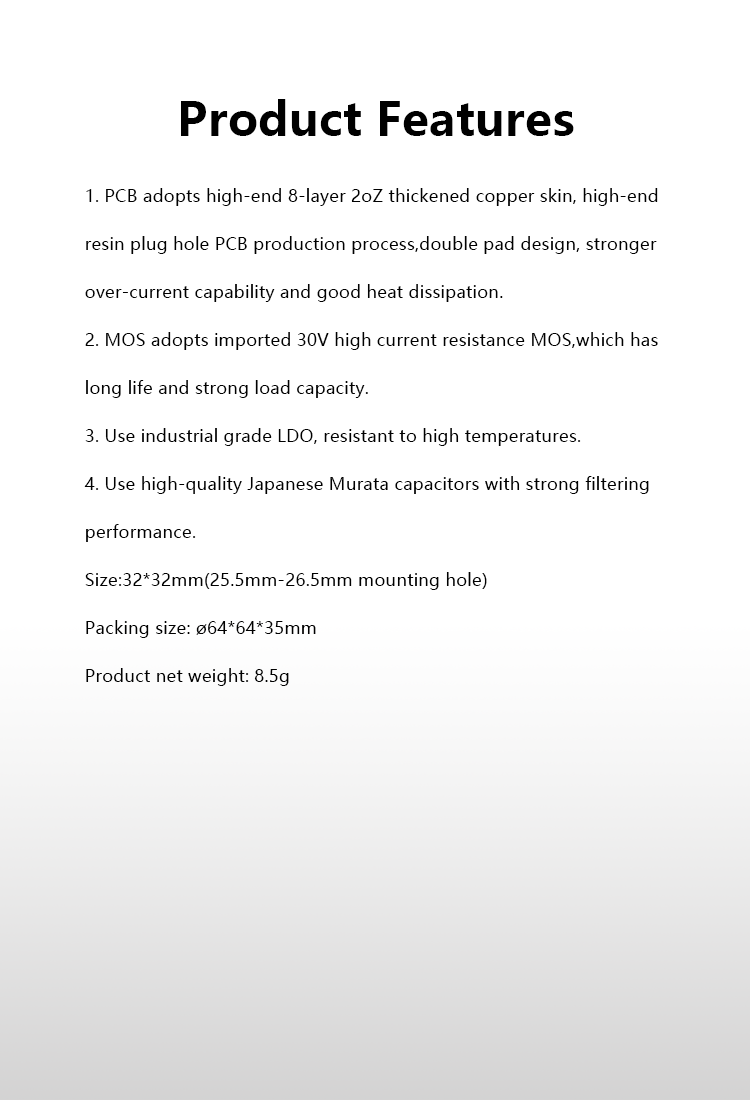

The F4126 40A AIO is built on a high-end 8-layer PCB with 2oz thickened copper and a resin-plugged hole production process, featuring a double pad design for superior overcurrent capacity and heat dissipation. It incorporates an industrial-grade LDO for high-temperature resistance and high-quality Japanese Murata capacitors for exceptional filtering performance, ensuring system stability and longevity in challenging FPV environments.

Enhanced User Experience

The HAKRC F4126 40A AIO significantly improves the FPV experience with:

  • Simplified and Cleaner Builds: The all-in-one design integrates flight controller and 40A ESC, reducing wiring complexity, saving space, and enabling neater, lighter drone builds.
  • Enhanced Power and Reliability: The 40A ESC with robust MOSFETs and 8-layer PCB supports powerful motor setups while maintaining reliable power delivery and heat management.
  • Stable and Responsive Flight: The STM32F411 CPU and ICM42688 IMU deliver smooth, stable flight performance with precise control algorithms.
  • Comprehensive Onboard Features: Integrated OSD, barometer, 16MB black box, and programmable LED provide flight data, altitude hold, logging, and customization without additional modules.
  • Durability and Longevity: The 8-layer PCB, industrial LDO, and Murata capacitors ensure durability under demanding flight conditions.
  • Wide Compatibility: Supports multiple receiver protocols (Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2) and 2S-6S LiPo input for versatile FPV setups.

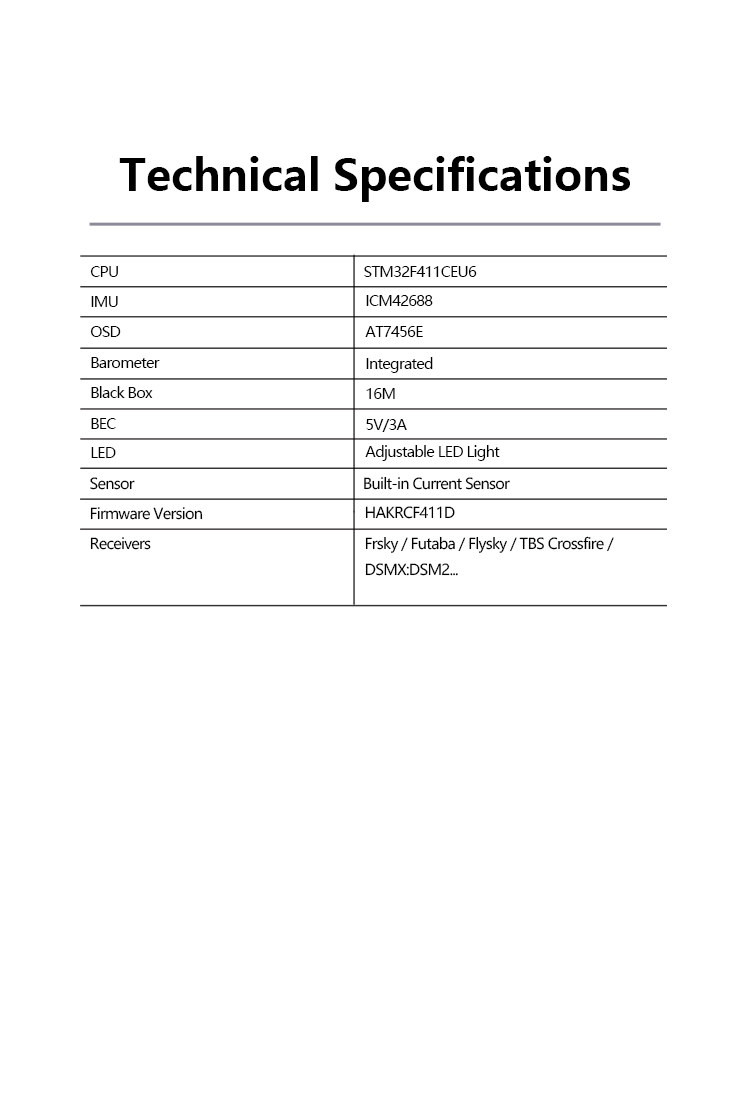

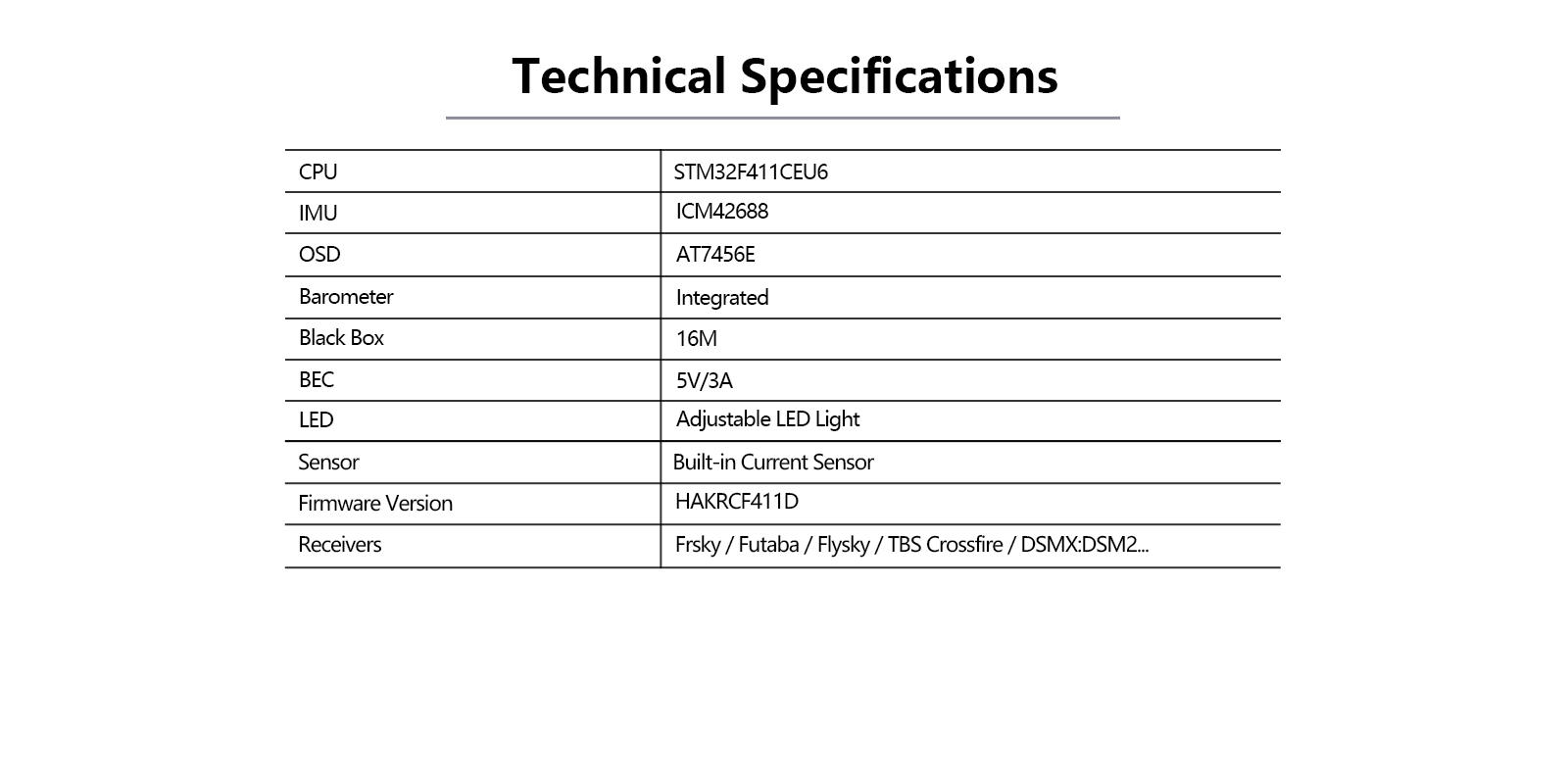

Technical Specifications

  • CPU: STM32F411CEU6
  • IMU: ICM42688
  • OSD: AT7456E
  • Barometer: Integrated
  • Storage: 16MB
  • BEC: 5V/1.5A
  • ESC: 4-in-1, 40A continuous, 45A peak
  • ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • ESC Firmware: BLHELI_S (G-H-30)
  • Sensor: Built-in current sensor
  • LED Support: Programmable LED
  • Firmware: HAKRCF411D
  • Receiver Support: Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2
  • Input Voltage: 2S-6S LiPo
  • PCB: 8-layer, 2oz copper, resin-plugged, double pad design
  • Components: 40V MOSFETs, industrial-grade LDO, Japanese Murata capacitors
  • Brand: HAKRC

The HAKRC F4126 40A AIO is the perfect choice for FPV enthusiasts seeking a powerful, compact all-in-one flight controller for micro drones. With its robust 40A ESC, advanced sensors, and simplified design, it delivers exceptional performance for demanding builds.
