NZFPV Hakrc F4126 20A AIO F411 CPU 2S-5S BLHeli_S

Integrated and Robust Design

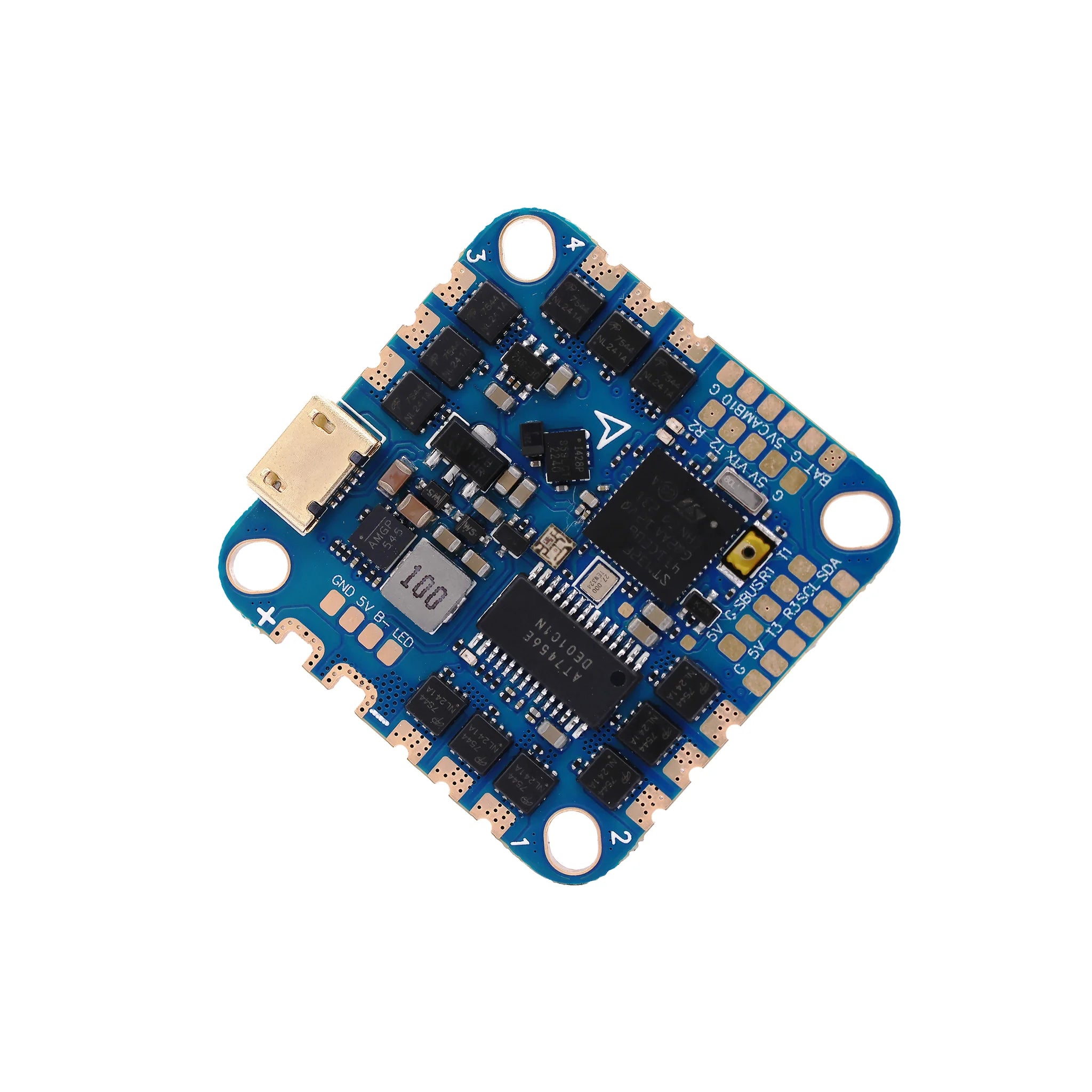

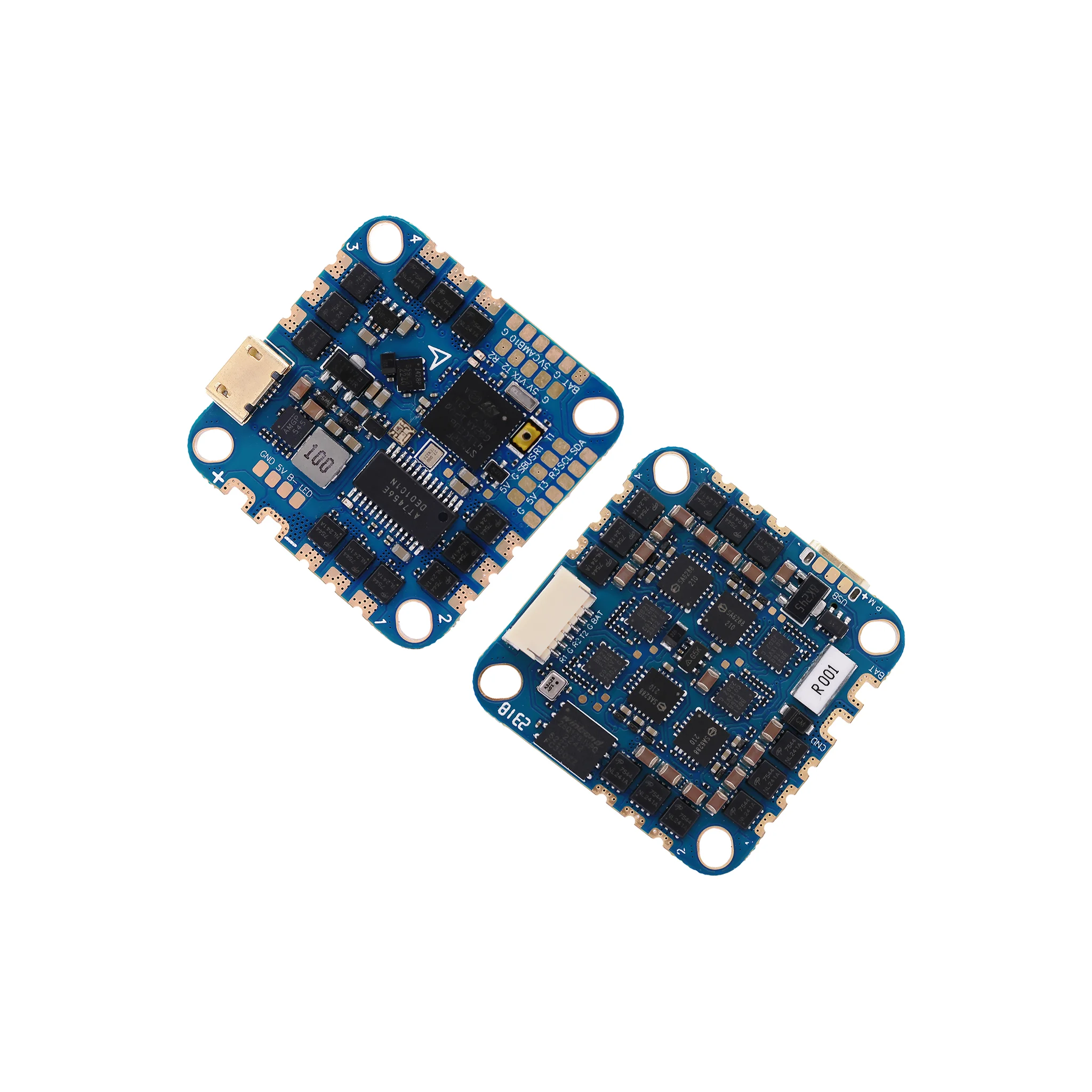

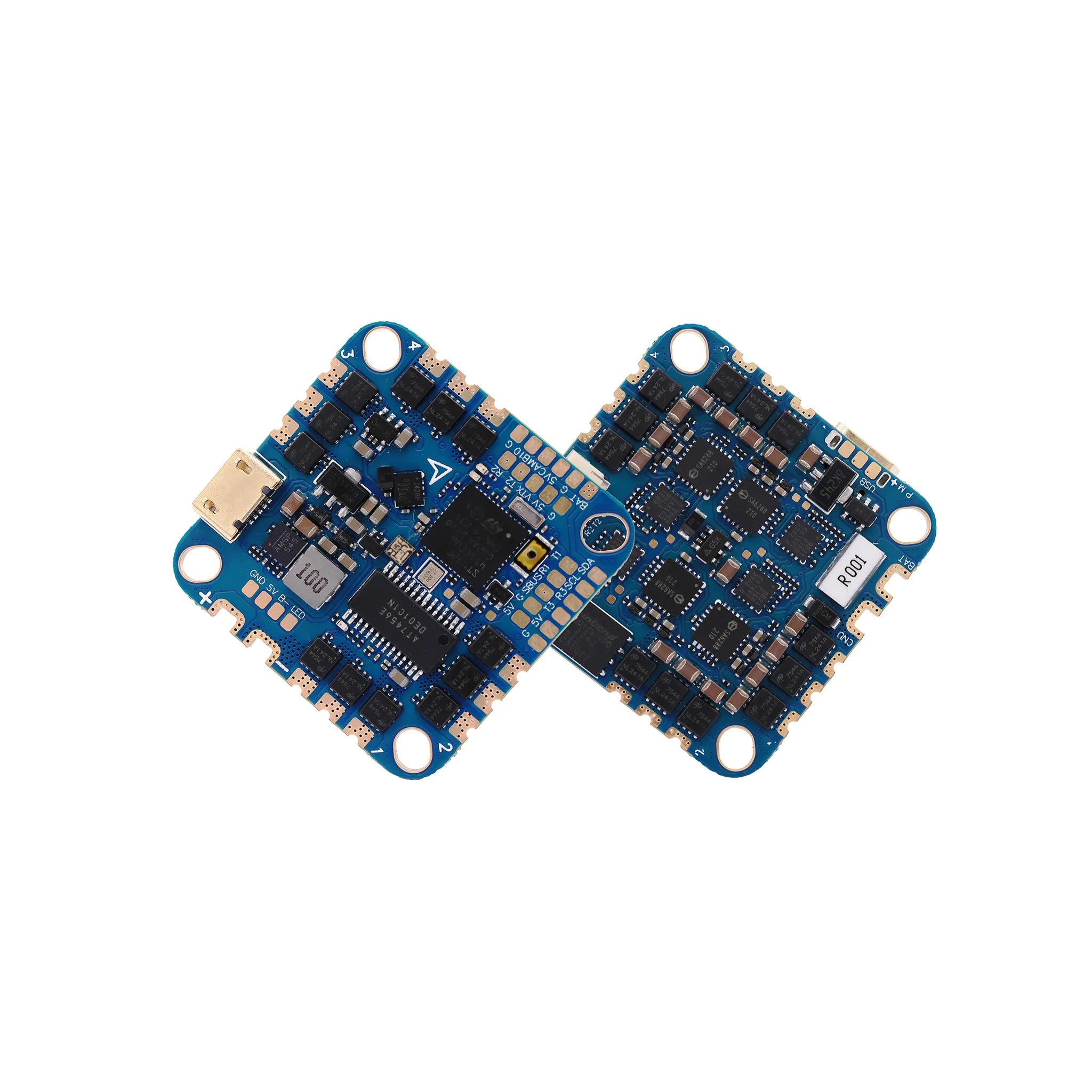

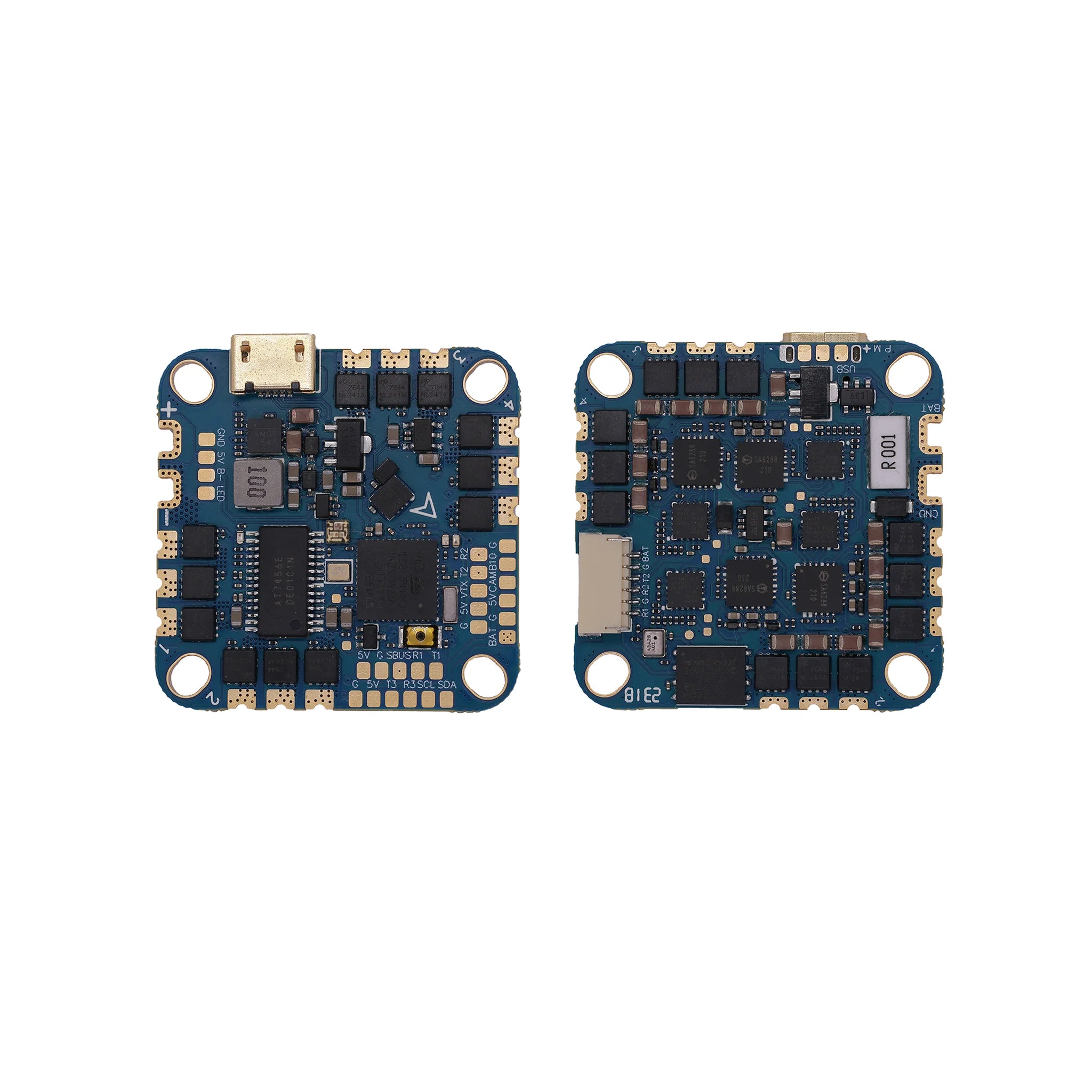

The HAKRC F4126 AIO combines a flight controller and a 4-in-1 ESC on a single 32x32mm board, simplifying wiring and saving space in compact FPV drone builds. Its high-end 8-layer PCB with 2oz thickened copper skin enhances overcurrent capability and provides excellent heat dissipation. This robust construction ensures durability and reliable performance, making it ideal for demanding micro drone applications.

Quality Components for Flight Stability

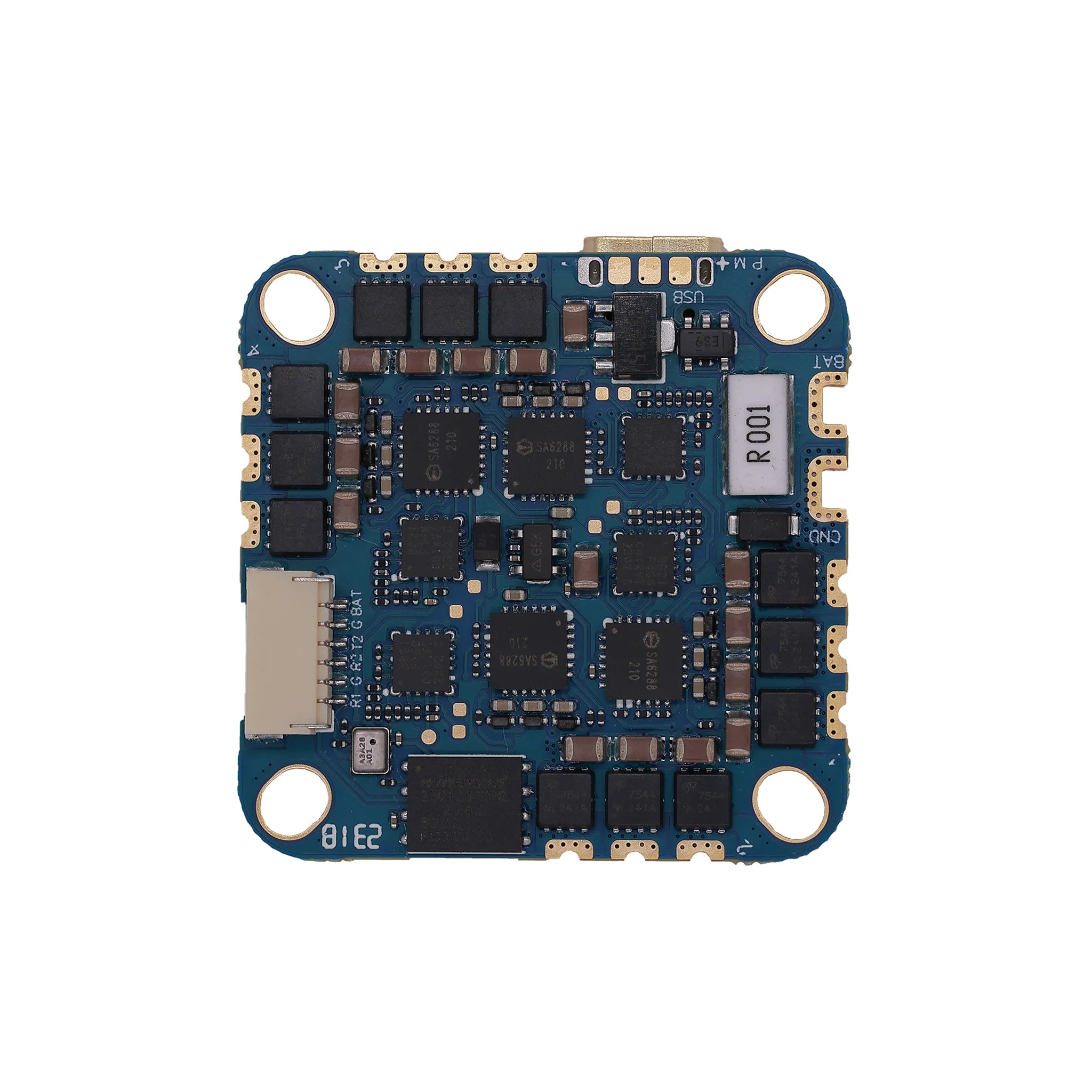

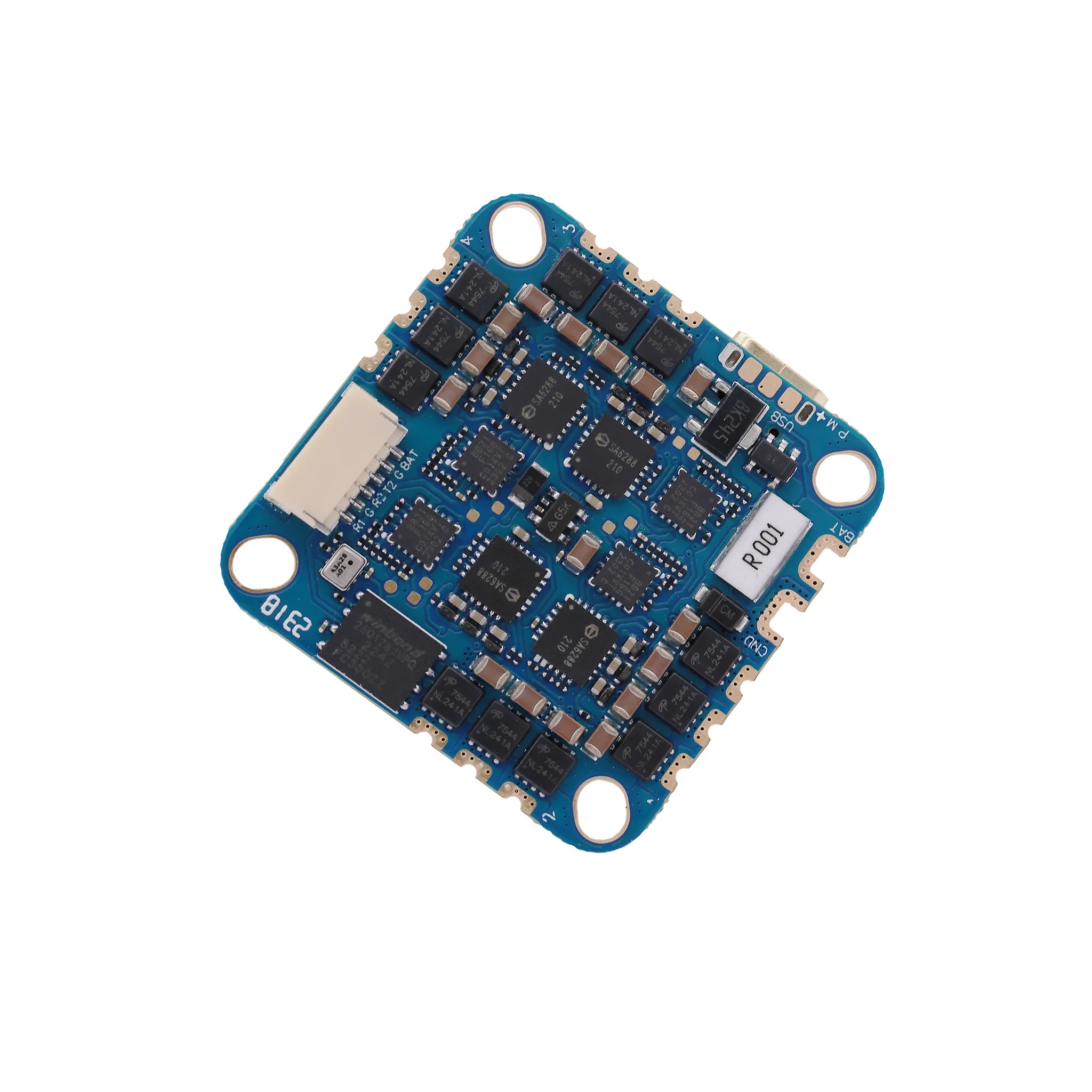

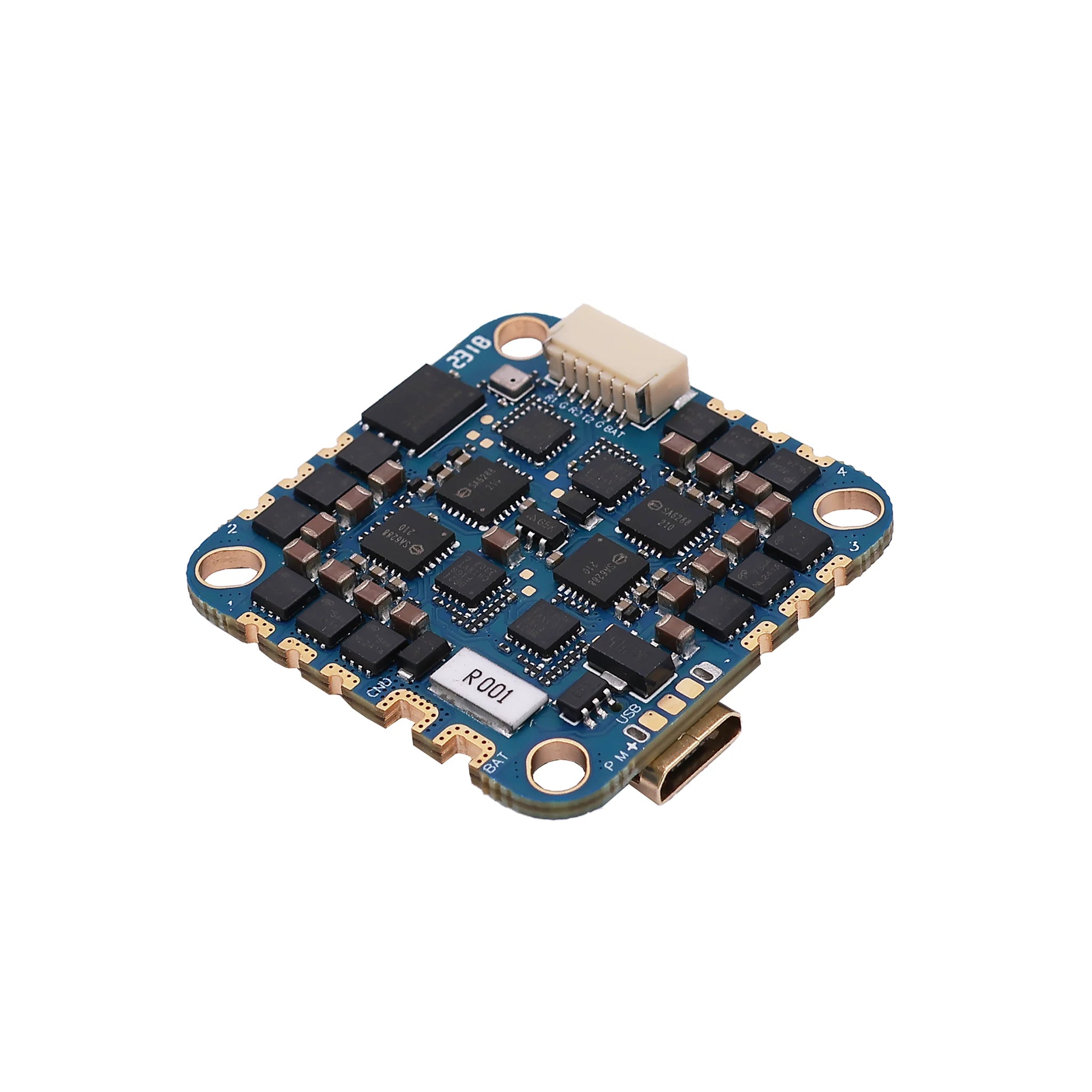

At its core, the F4126 AIO features the STM32F411CEU6 CPU and ICM42688 IMU, delivering responsive flight control with the HAKRCF411D firmware. The ESC section incorporates imported 30V high-current-resistant MOSFETs for longevity, an industrial-grade LDO for high-temperature resistance, and high-quality Japanese Murata capacitors for superior filtering performance. These components ensure stable and dependable operation across various flight conditions.

Feature-Packed for Modern FPV

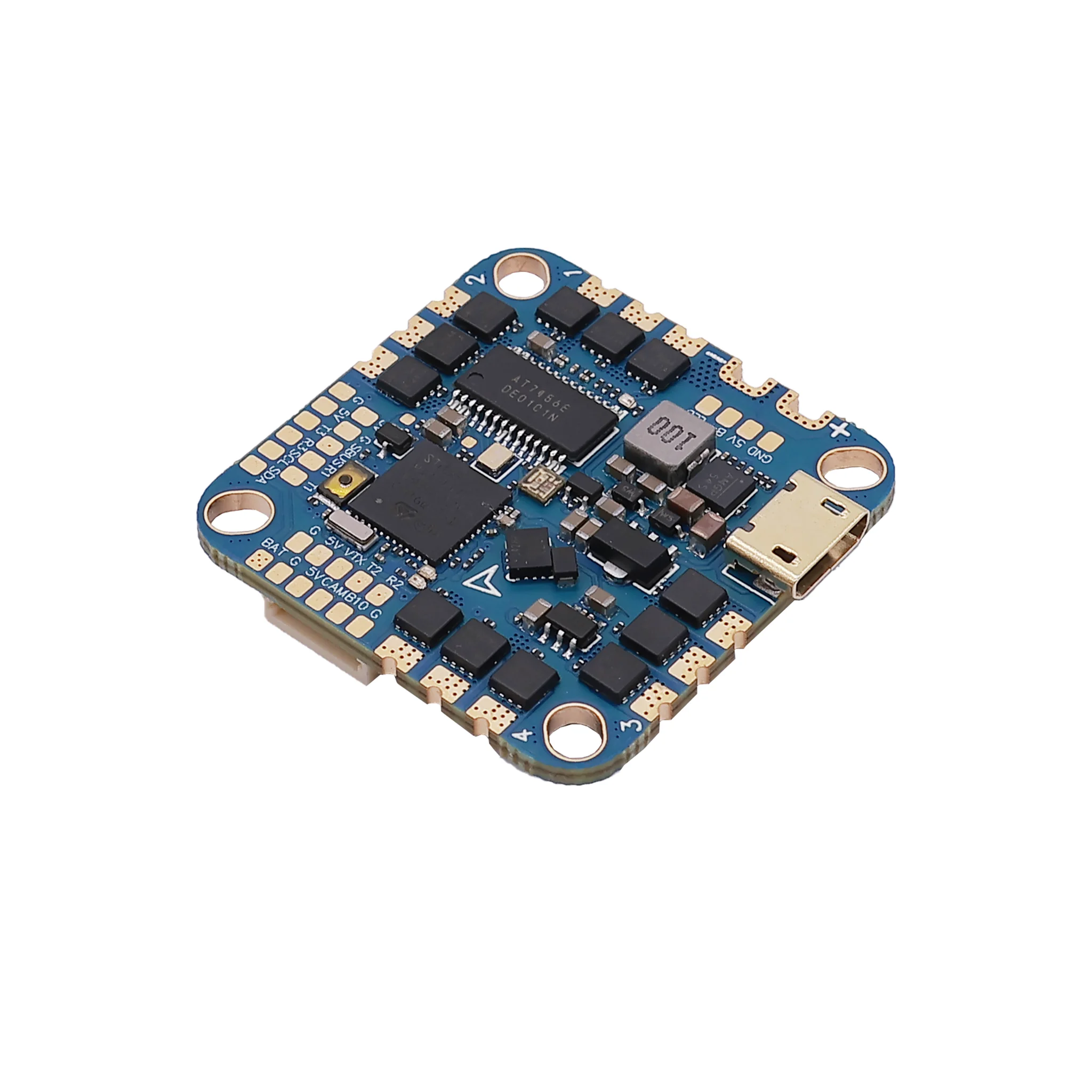

The F4126 AIO is equipped with an AT7456E chip for On-Screen Display (OSD), an integrated barometer for altitude sensing, and a 16MB black box for flight data logging. It includes a 5V/3A BEC to power peripherals, a built-in current sensor, and support for adjustable LEDs. The integrated 20A ESC (25A peak) runs BLHELI_S (G-H-30) firmware, supporting PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600 protocols on 2S-5S LiPo input.

Enhanced User Experience

The HAKRC F4126 20A AIO enhances the FPV experience with:

• Streamlined Builds: The all-in-one design reduces components and soldering, enabling quicker, cleaner, and lighter micro drone setups.
• Stable and Responsive Flight: The STM32F411 CPU and ICM42688 IMU provide smooth, precise flight performance with modern firmware support.
• Reliable Power Delivery: The 20A ESC with quality MOSFETs, LDO, and Murata capacitors ensures consistent power and heat management in compact builds.
• Onboard Diagnostics: The 16MB black box and AT7456E OSD enable flight data logging and real-time FPV feed information for tuning and troubleshooting.
• Peripheral Support: A 5V/3A BEC powers receivers, VTX, and cameras, while adjustable LED support adds customization.
• Wide Compatibility: Supports multiple receiver protocols (Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2) and ESC protocols (up to Dshot600) for versatile FPV setups.

Technical Specifications

• CPU: STM32F411CEU6
• IMU: ICM42688
• OSD: AT7456E
• Barometer: Integrated
• Storage: 16MB
• BEC: 5V/3A
• ESC: 4-in-1, 20A continuous, 25A peak
• ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• ESC Firmware: BLHELI_S (G-H-30)
• Sensor: Built-in current sensor
• LED Support: Adjustable LED
• Firmware: HAKRCF411D
• Receiver Support: Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2
• Input Voltage: 2S-5S LiPo
• PCB: 8-layer, 2oz copper, resin-plugged
• Components: 30V MOSFETs, industrial-grade LDO, Japanese Murata capacitors
• Dimensions: 32mm x 32mm
• Brand: HAKRC

The HAKRC F4126 20A AIO is the ideal choice for FPV enthusiasts seeking a compact, reliable all-in-one flight controller for micro drones. With its robust ESC, advanced features, and simplified design, it delivers exceptional performance for small-scale builds.
