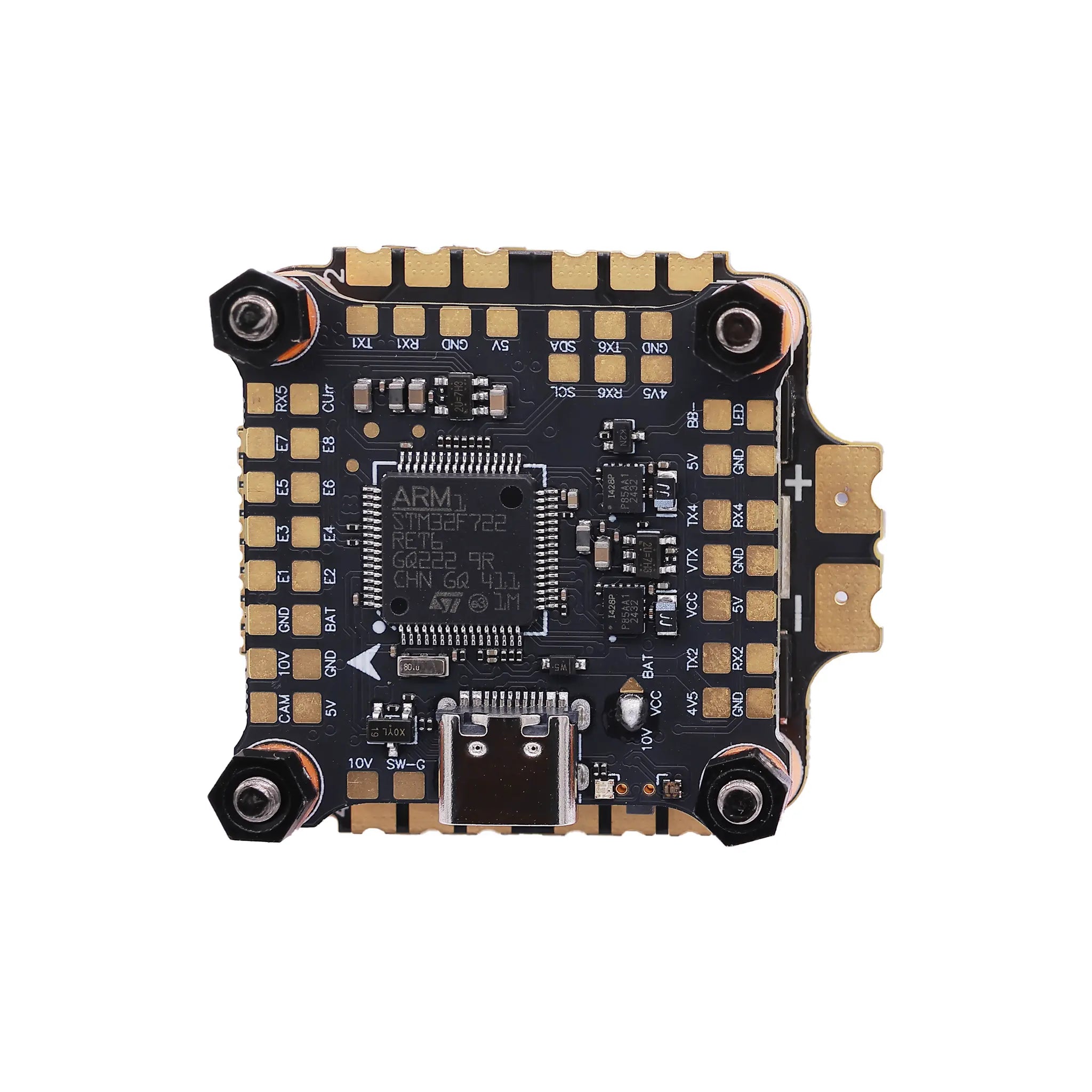

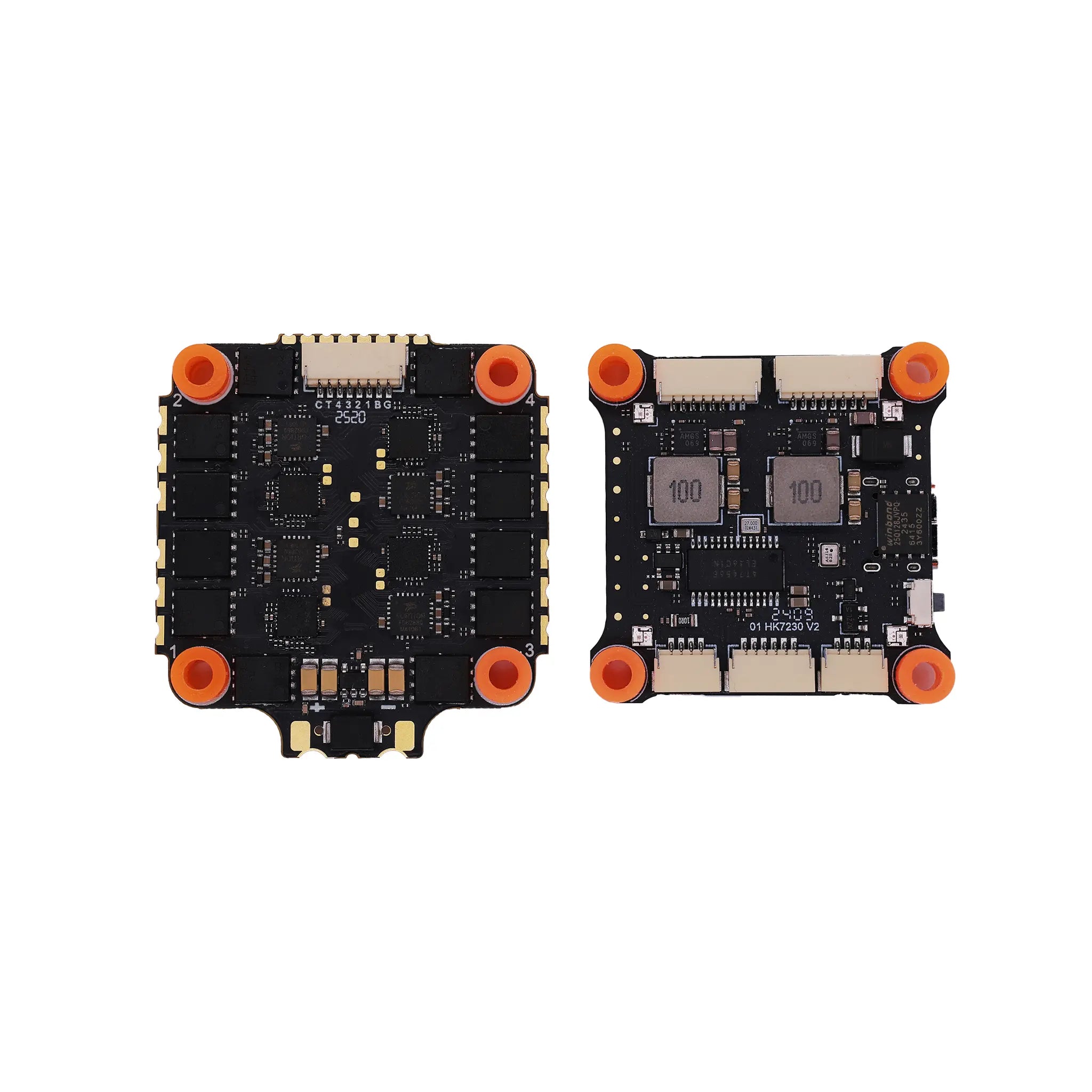

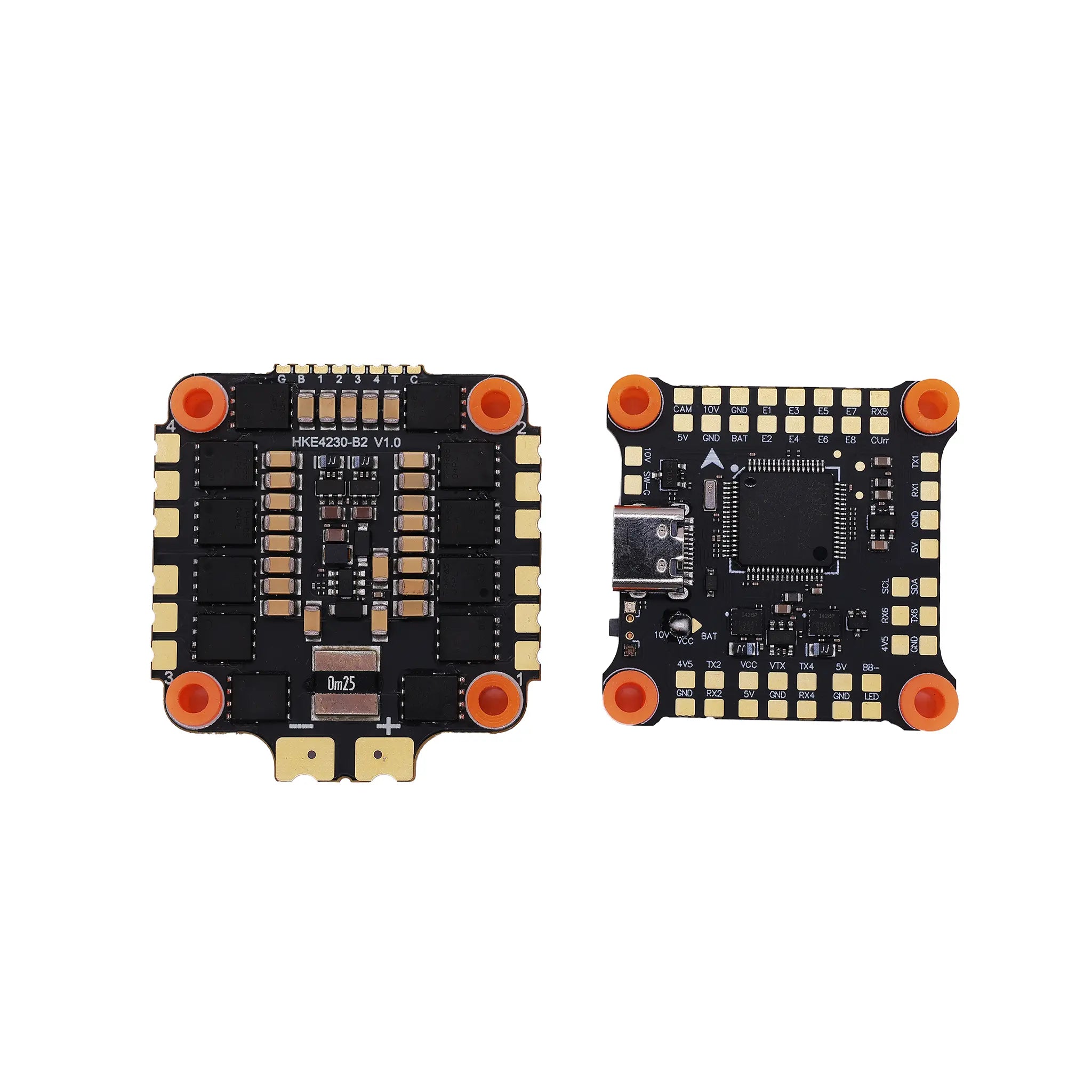

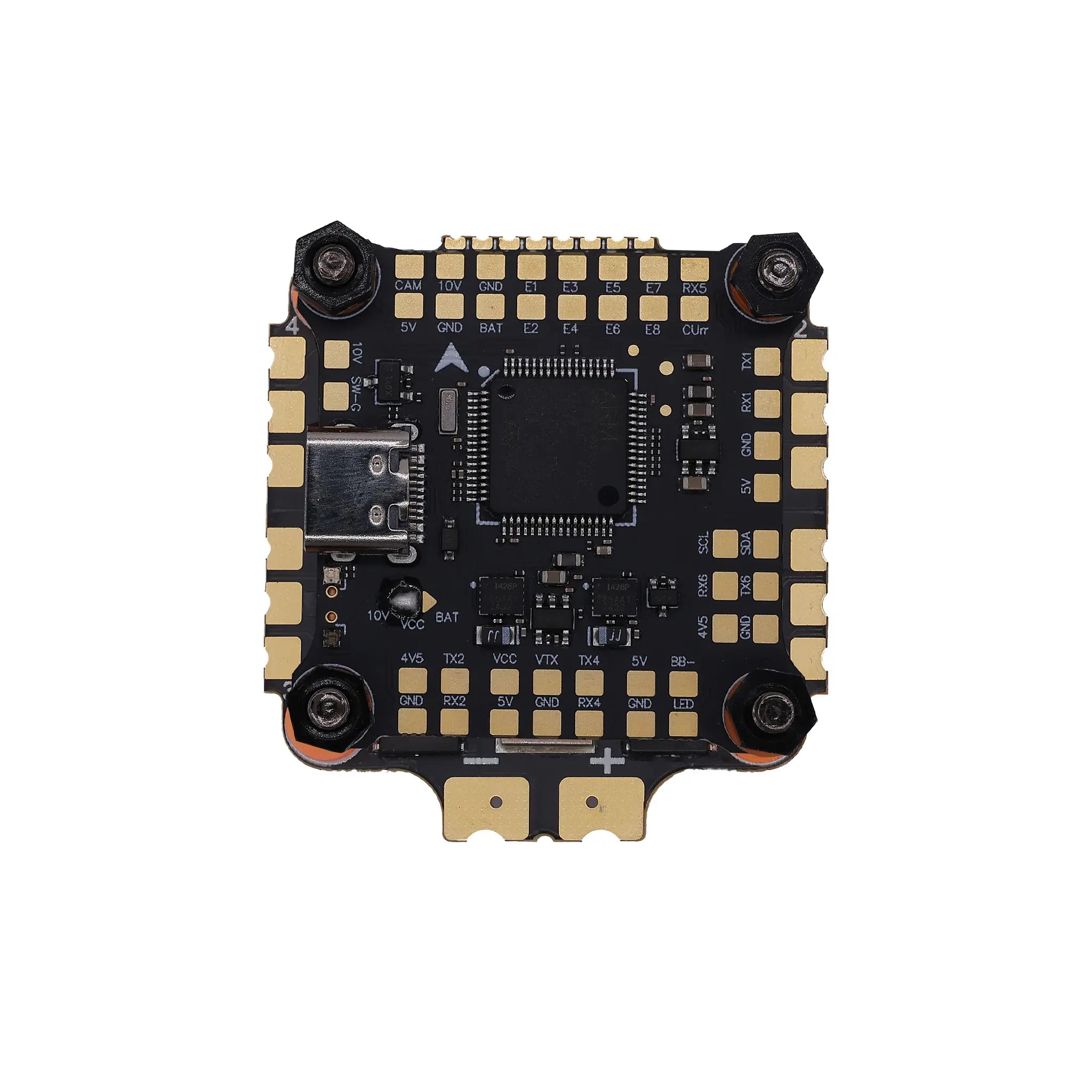

NZFPV Hakrc 65A F7 V2 Fly Tower

Integrated Flight Control and Power Distribution

The HAKRC 65A F7 V2 Fly Tower integrates a flight controller, 4-in-1 ESC, and power distribution board (PDB) for efficient FPV drone builds. Powered by the STM32F722RET6 CPU and dual ICM42688 gyroscopes, it ensures accurate flight data processing with HAKRCF722V2 firmware. Featuring 16MB storage for flight logging and 6 UART serial ports for versatile connectivity, it supports 2S-6S LiPo batteries. Dual BECs (5V/3A and 10V/2.5A) provide stable voltage for peripherals like cameras, VTX, and GPS, enhancing system reliability. RX2 connects to SBUS for reliable receiver integration.

Robust ESC and Safety Features

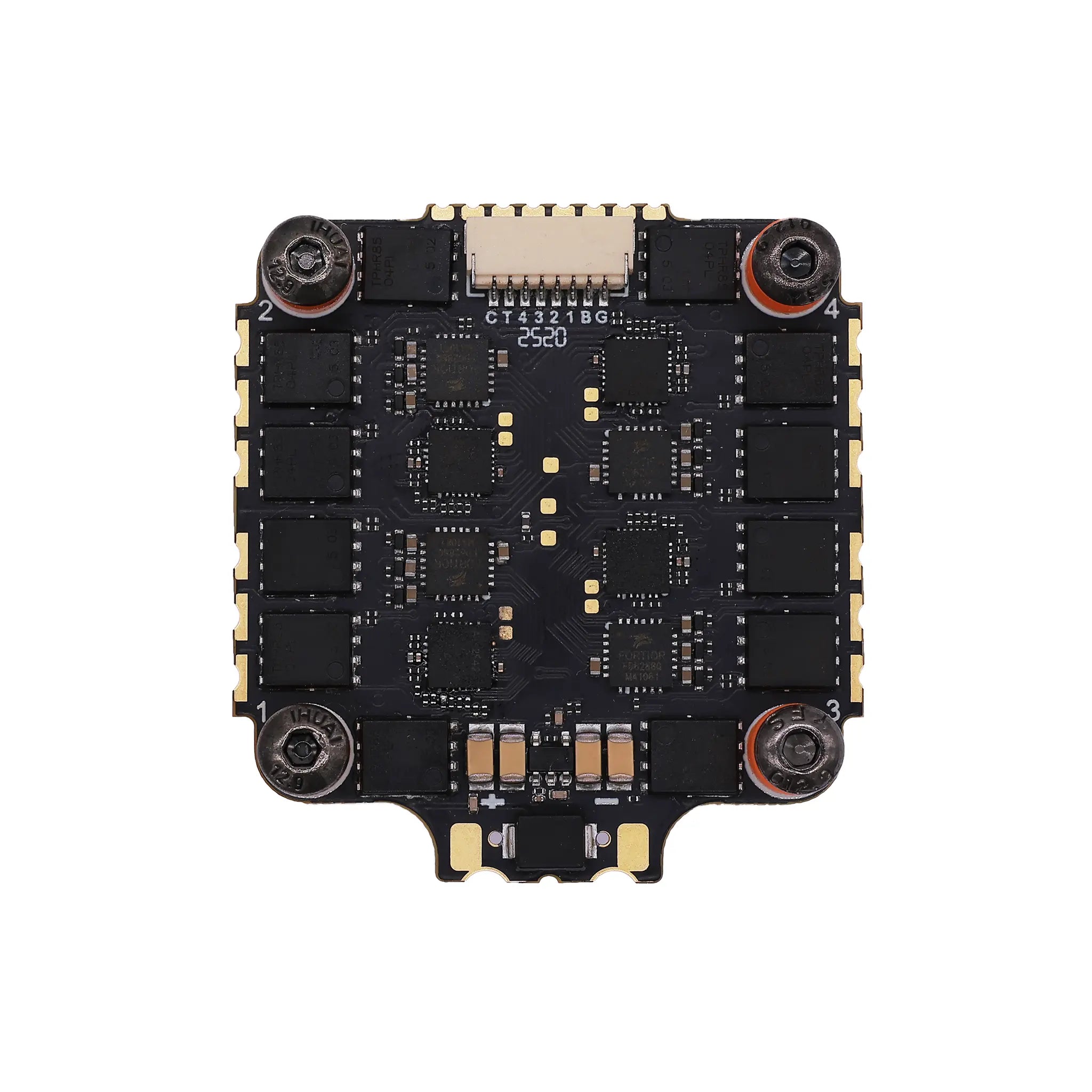

The integrated 4-in-1 ESC delivers 65A continuous current (70A peak for 10 seconds) and supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600 protocols. Running BLHeliSuite16714900 firmware, it enables telemetry data transmission to the VTX for real-time monitoring. Safety features include finger-tightened nut installation to prevent PCB damage, M3 orange shock absorber balls for vibration damping, and guidelines to verify pin alignment, polarity, and solder joints to prevent short circuits.

Compact Design with Seamless Integration

Measuring 43mm x 40mm (flight controller at 36mm x 36mm) with 30.5mm x 30.5mm mounting holes (Φ4mm), the fly tower is designed for versatile FPV builds. The 6P sky terminal seat (DJI-compatible) enables solder-free connections for GPS, receivers, and cameras. Accessories include a 35V/470uF capacitor, XT60 power cable, M3x25mm screws, and cables (8P, CRSF Receiver 4P) for simplified setup. Four programmable colored LEDs add visual customization.

Enhanced User Experience

The HAKRC 65A F7 V2 Fly Tower enhances the RC experience with:

• All-in-One Simplicity: Integrated flight controller, 65A ESC, and PDB reduce wiring for quick, clean builds.
• Stable and Precise Flight: The STM32F722RET6 CPU and dual ICM42688 gyroscopes ensure smooth, ultra-responsive performance for quads.
• Efficient Power Delivery: Dual BECs (5V/3A, 10V/2.5A) and a 35V/470uF capacitor provide reliable power for motors and peripherals.
• Wide Compatibility: Supports 2S-6S LiPo, multiple receiver protocols (Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2), and Dshot600 for versatile setups.
• Safety and Durability: Shock absorber balls and installation precautions ensure longevity in demanding setups.

Technical Specifications

• CPU: STM32F722RET6
• Gyroscope: Dual ICM42688
• Storage: 16MB
• BEC: 5V/3A, 10V/2.5A
• ESC: 4-in-1, 65A continuous, 70A peak (10s)
• ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• ESC Firmware: BLHeliSuite16714900
• LED Support: Four programmable colored LEDs
• Firmware: HAKRCF722V2
• Receiver Support: Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2
• UART Serial Ports: 6
• Input Voltage: 2S-6S LiPo
• Fly Tower Dimensions: 43mm x 40mm
• Flight Controller Dimensions: 36mm x 36mm (30.5mm x 30.5mm mounting holes, Φ4mm)
• Weight (Fly Tower): 23g
• Weight (Flight Controller): 8.5g
• Total Weight: 71.5g
• Accessories: M3x25mm screws (x4), M3 plastic nuts (x4), 35V/470uF capacitor (x1), M3 orange shock absorber balls (x4), 8P cable (x1), XT60 power cable (x1), CRSF Receiver 4P cable (x1)
• Brand: HAKRC

The HAKRC 65A F7 V2 Fly Tower is the ideal choice for RC enthusiasts seeking a high-performance fly tower for FPV drones and racing quads. With its integrated design, robust ESC, and easy setup, it delivers exceptional performance for demanding builds.
