NZFPV Hakrc 5139 90A 4in1 FPV ESC
$69.99 USD $69.99 USD $79.99 USD
Sale 12.5% $10.00 USD (12.5%)
In stock: 999
Description

The HAKRC 5139 90A is a formidable 4-in-1 ESC engineered for high-power FPV drone applications, delivering a massive 90A continuous current with peaks up to 100A. It supports a wide 2S-8S LiPo input range and utilizes an EFM8BB51 MCU running at 50MHz. Featuring robust construction with an 8-layer PCB and high-quality components, it ensures reliability and efficient power delivery with extensive protocol support including DShot600, all on a standard 30.5x30.5mm mounting pattern.
Elegant Packaging
30-Day Returns
24/7 Support
Global Free Shipping

Detailed specification

Extreme Power Delivery

The 5139 90A ESC is built for demanding FPV setups, providing 90A continuous current per channel (100A peak). With a 2S-8S LiPo input range, it’s ideal for large, power-hungry drones, aggressive freestyle maneuvers, and high-speed racing, ensuring reliable high-current performance.

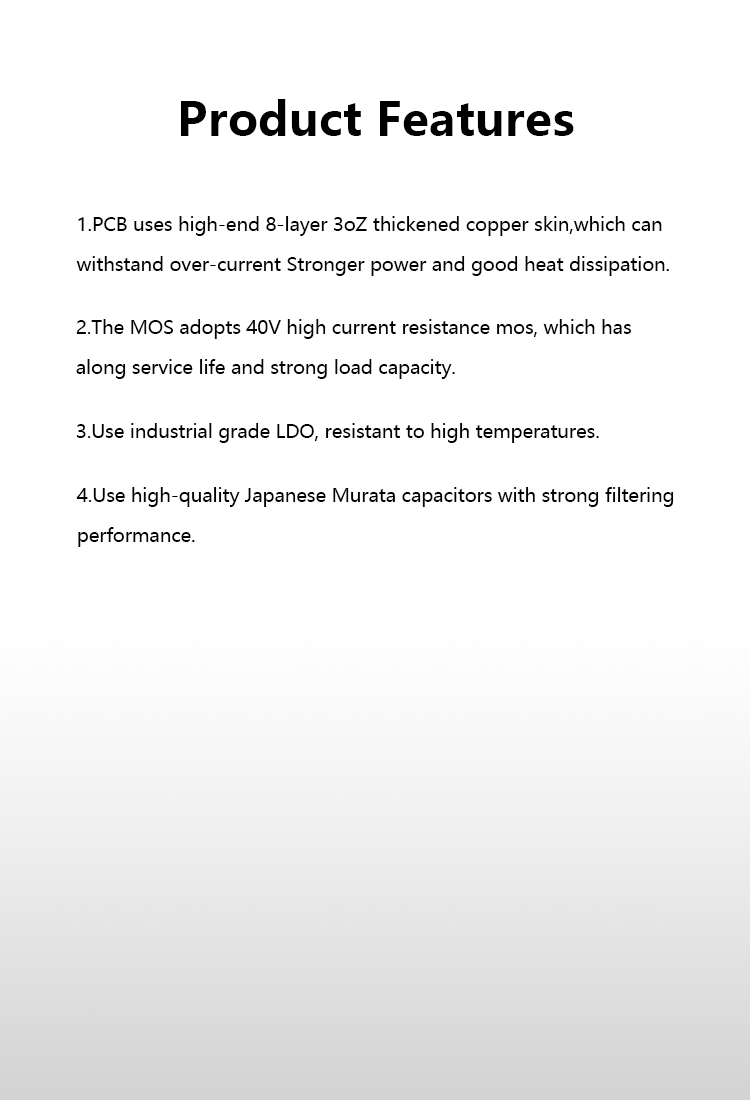

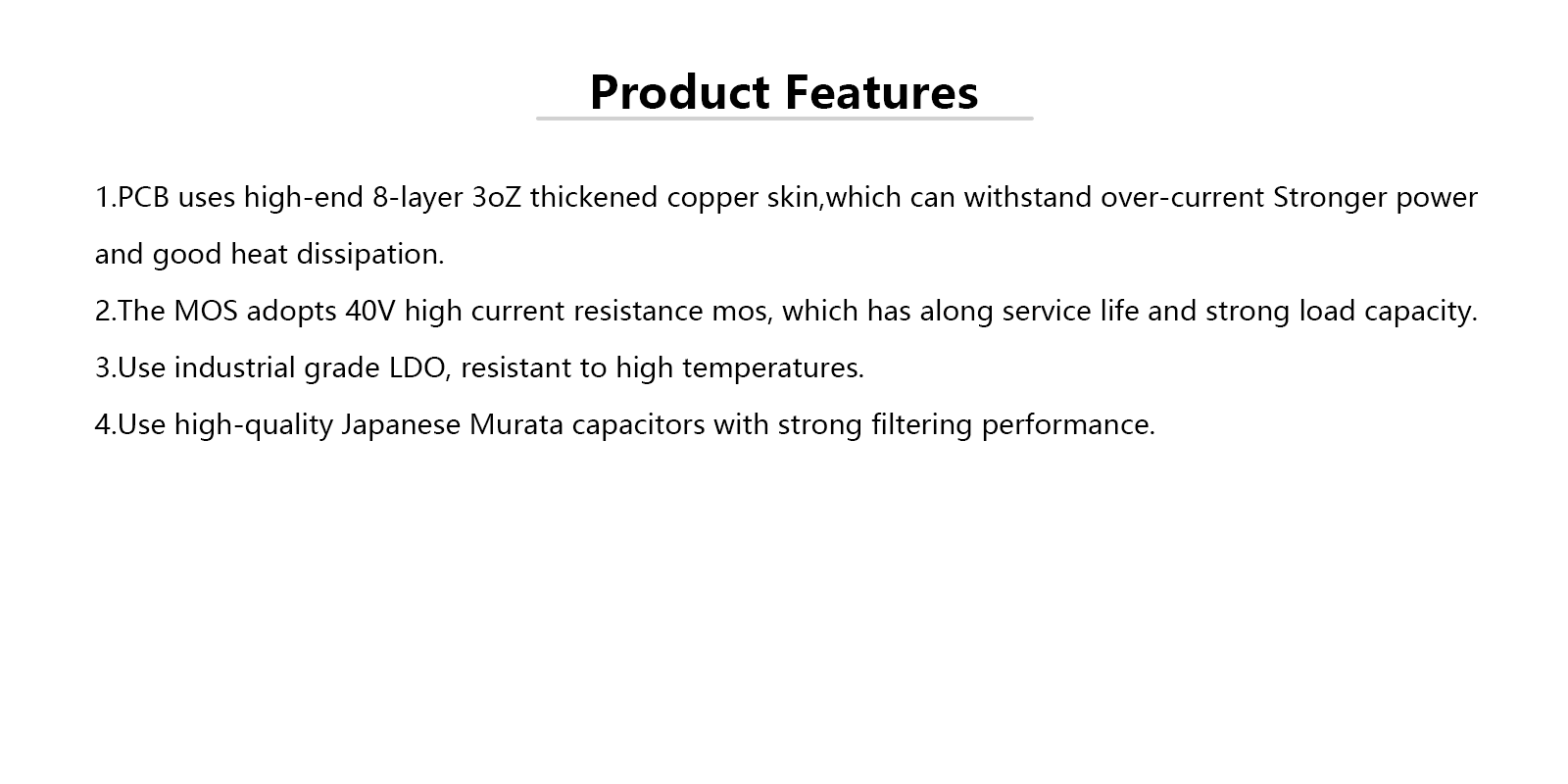

Premium Construction for Enhanced Durability

This ESC features an 8-layer PCB with 3oz thickened copper, boosting current handling and heat dissipation. Imported 40V MOSFETs, an industrial-grade LDO, and Japanese Murata capacitors ensure long life and stability. Dual metallized solder pads prevent lift-off, enhancing mechanical integrity.

Smooth and Responsive Performance

Powered by an EFM8BB51 main control chip at 50MHz with BLHeliSuite-configurable firmware, the 5139 90A offers precise motor control. It supports PWM, Oneshot125/42, Multishot, and Dshot150/300/600. Hardware PWM reduces noise, while Damped Light enables sensitive braking for enhanced control.

Changes to User Experience

The HAKRC 5139 90A ESC elevates the user experience by:

  • Extreme Performance Builds: 90A current and 2S-8S support power high-speed, agile drone setups.
  • Reliability and Longevity: 8-layer PCB, MOSFETs, and Murata capacitors ensure durability under stress.
  • Smooth Control: EFM8BB51, Dshot600, and Damped Light deliver precise, responsive handling.
  • Versatile Integration: 30.5x30.5mm mounting and wide protocols simplify setup.

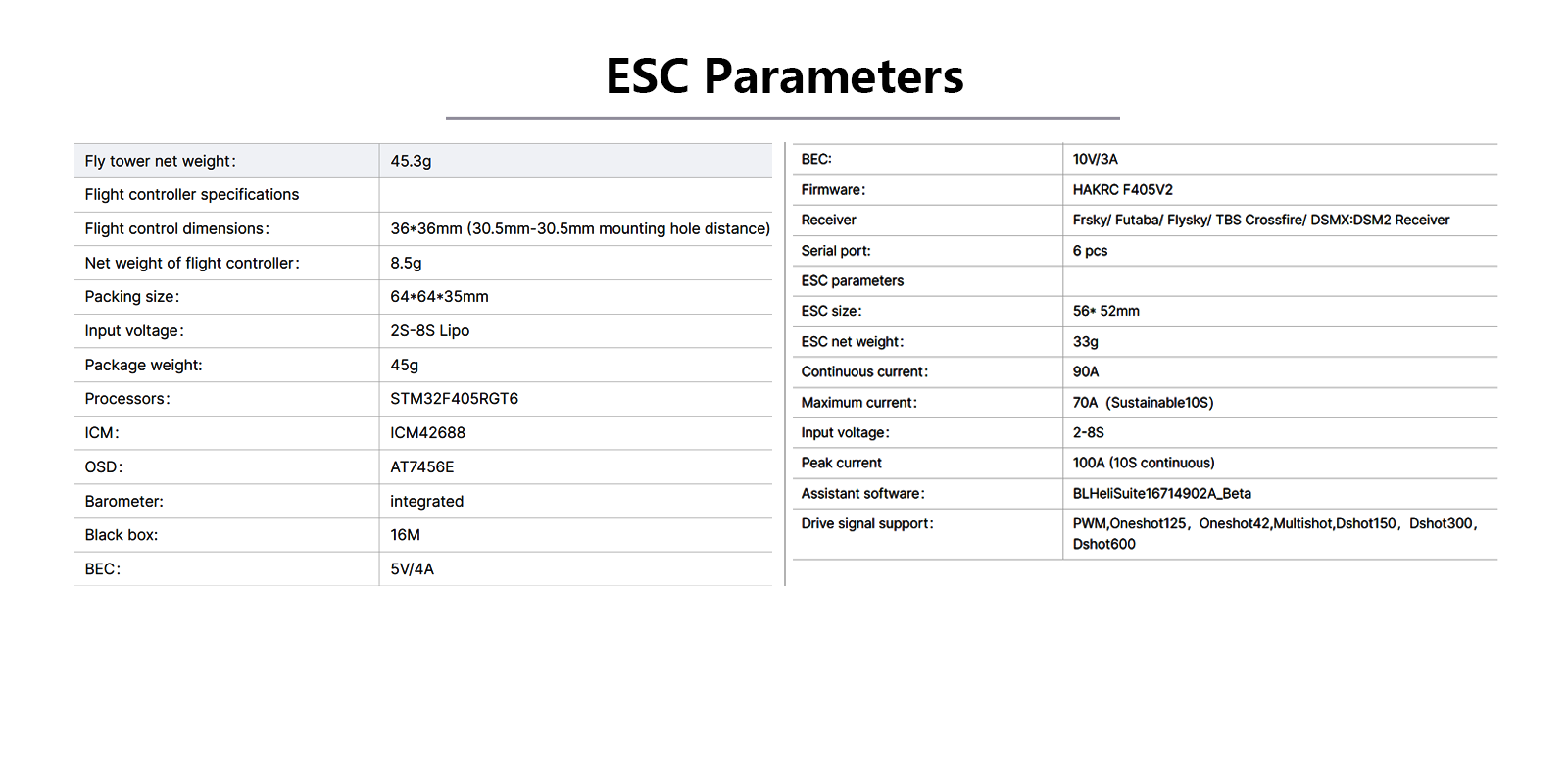

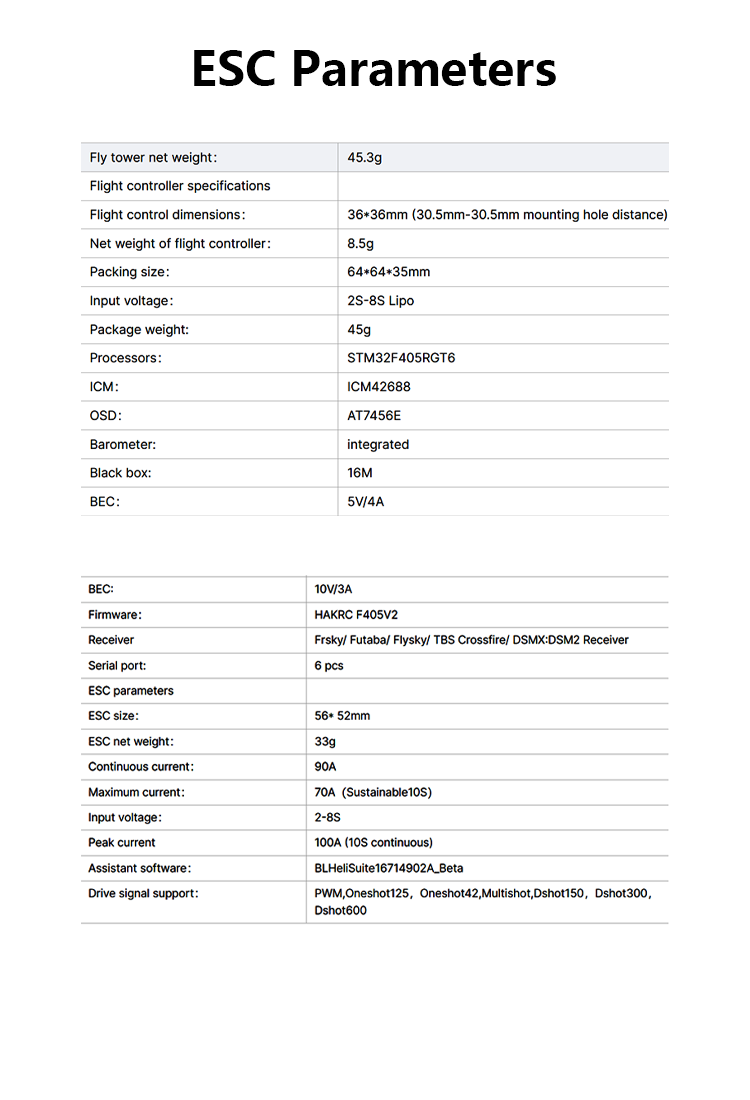

Technical Specifications

  • CPU: EFM8BB51 (50MHz)
  • Current: 90A continuous, 100A peak (assumed 10s)
  • ESC Protocols: PWM, Oneshot125/42, Multishot, Dshot150/300/600
  • ESC Firmware: E_X_40-BLHeliSuite (configurable)
  • Input Voltage: 2S-8S LiPo
  • PCB: 8-layer, 3oz copper, dual metallized solder pads
  • Components: Imported 40V MOSFETs, industrial-grade LDO, Murata capacitors
  • Mounting: 30.5x30.5mm
  • Brand: HAKRC

The HAKRC 5139 90A 4-in-1 ESC is the ideal choice for FPV enthusiasts seeking an extreme-performance ESC. With its robust design, it ensures reliable power for the most demanding drone builds.

Product comparison

NZFPV Hakrc 5139 90A 4in1 FPV ESC
NZFPV Hakrc 5139 90A 4in1 FPV ESC
NZFPV Hakrc 5139 90A 4in1 FPV ESC
NZFPV Hakrc 5139 90A 4in1 FPV ESC
NZFPV Hakrc 5139 90A 4in1 FPV ESC
NZFPV Hakrc 5139 90A 4in1 FPV ESC
NZFPV Hakrc 5139 90A 4in1 FPV ESC
NZFPV Hakrc 5139 90A 4in1 FPV ESC
Current product Current
NZFPV

NZFPV Hakrc 5139 90A 4in1 FPV ESC

$69.99 USD $69.99 USD $79.99 USD
Options
In stock: 999
Descriptions

The HAKRC 5139 90A is a formidable 4-in-1 ESC engineered for high-power FPV drone applications, delivering a massive 90A continuous current with peaks up to 100A. It supports a wide 2S-8S LiPo input range and utilizes an EFM8BB51 MCU running at 50MHz. Featuring robust construction with an 8-layer PCB and high-quality components, it ensures reliability and efficient power delivery with extensive protocol support including DShot600, all on a standard 30.5x30.5mm mounting pattern.

Customer Reviews

Based on 7 reviews
71%
(5)
29%
(2)
0%
(0)
0%
(0)
0%
(0)
C
Charles Allen
Powerhouse

This HAKRC 5139 is a monster! My 8S 3108 quad lifts heavy payloads effortlessly with the 90A rating. DShot600 is razor-sharp, and the 8-layer PCB keeps it cool. Soldering was easy with double metallized pads. BLHeli_S setup was quick—perfect for heavy-lift drones!

Thank you for the incredible review! We’re thrilled the HAKRC 5139’s power is meeting your needs. Your feedback means a lot!

K
Karen Young
Easy Install

Great ESC for my 7S racer. The 90A 4-in-1 is powerful, and soldering pads are rock-solid. DShot300 is smooth, but the 56x52mm size was a tight fit for my frame. BLHeli_S setup took some tweaking. Reliable and cool-running, but smaller size would help.

Thanks for your feedback! We’re sorry the size was challenging. We’re exploring compact designs and will email you with updates. Appreciate your support!

D
Daniel Scott
Pricey

The HAKRC 5139 is solid for my 8S heavy-lift quad—90A handles 3108 motors well, and DShot600 is fast. Soldering was easy, but the price is steep for budget pilots. Instructions could be clearer too. Still, it’s reliable and worth it for performance.

We appreciate your honest review! We’re sorry the price and instructions fell short. We’re working on cost and guide improvements and will email you updates. Thanks for choosing us!

N
Nancy Wright
Pro Performance

As a racer, I’m blown away! The HAKRC 5139 powers my 8S 2550kV setup flawlessly. The 3oz PCB and Murata capacitors keep it stable, and DShot600 is instant. Soldering pads are sturdy, and regenerative braking extends flights. Top choice for competitive builds!

Thank you for the fantastic review! We’re thrilled the HAKRC 5139 is elevating your races. Your feedback means a lot!

L
Lisa Green
Rock Solid

This ESC is a tank! I’ve hammered it on an 8S 2806.5 setup for weeks—no heat, no failures. The 8-layer 3oz PCB and 40V MOSFETs are premium. DShot600 is spot-on, and double pads made soldering clean. Best ESC for high-power drones!

Thank you for the stellar review! We’re thrilled the HAKRC 5139’s durability is impressing you. Your feedback keeps us motivated!
