NZFPV Hakrc 3220 60A 4in1 FPV ESC

Advanced 32-bit Processing

The HAKRC 3220 60A is built around a 32-bit architecture with HAKRC_AT4G_Multi_32.9 Hex firmware, enabling faster computations and sophisticated motor control. This delivers smoother throttle response, precise speed adjustments, and enhanced flight characteristics, crucial for racing and freestyle FPV maneuvers.

Robust Power Delivery

Engineered for demanding FPV applications, this 4-in-1 ESC provides a solid 60A continuous current per motor channel. Supporting a 2S-6S LiPo voltage range, it offers flexibility for various power setups, ensuring consistent power delivery for aggressive flying and high-power drones.

Versatile Protocol Compatibility and Compact Form Factor

The HAKRC 3220 60A ensures broad compatibility with PWM, Oneshot125, Oneshot42, Multishot, and Dshot150/300/600 protocols, integrating seamlessly with diverse flight controllers. Its 20x20mm mounting pattern and 11g net weight make it ideal for compact builds, balancing size and power without compromise.

Enhanced User Experience

The HAKRC 3220 60A ESC significantly enhances the user experience by:

• Smoother Flights: 32-bit processing and Dshot600 ensure precise, responsive motor control for an intuitive feel.
• High-Power Setups: 60A current and 2S-6S support power demanding drones for racing or freestyle.
• Seamless Integration: Wide protocol support simplifies builds with flexible component choices.
• Lightweight Builds: 20x20mm footprint and 11g weight suit compact frames without losing power.

Technical Specifications

• Architecture: 32-bit
• Current: 60A continuous, 60A peak (10s)
• ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150/300/600
• ESC Firmware: HAKRC_AT4G_Multi_32.9 (BLHeli_32)
• Input Voltage: 2S-6S LiPo

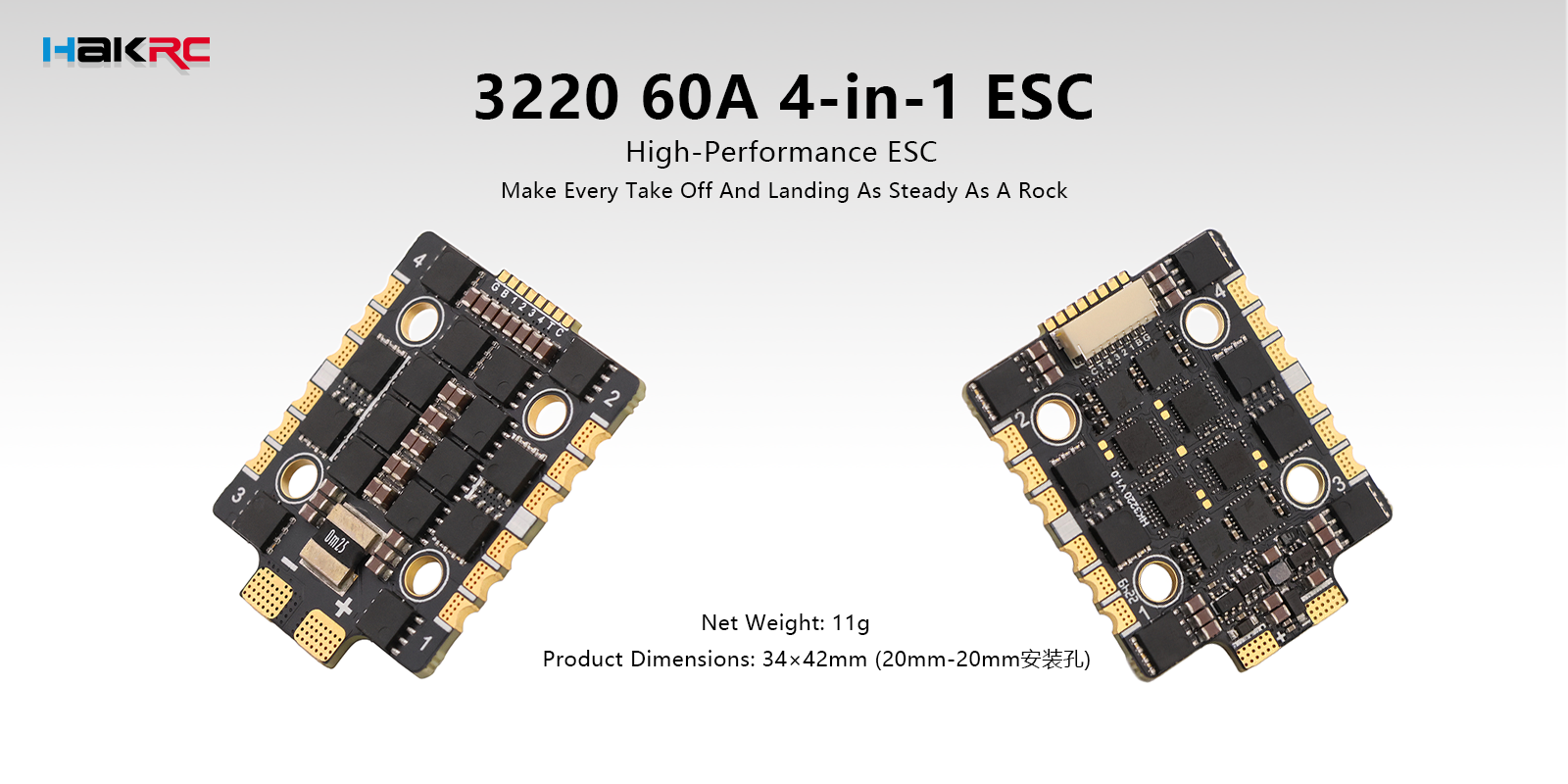

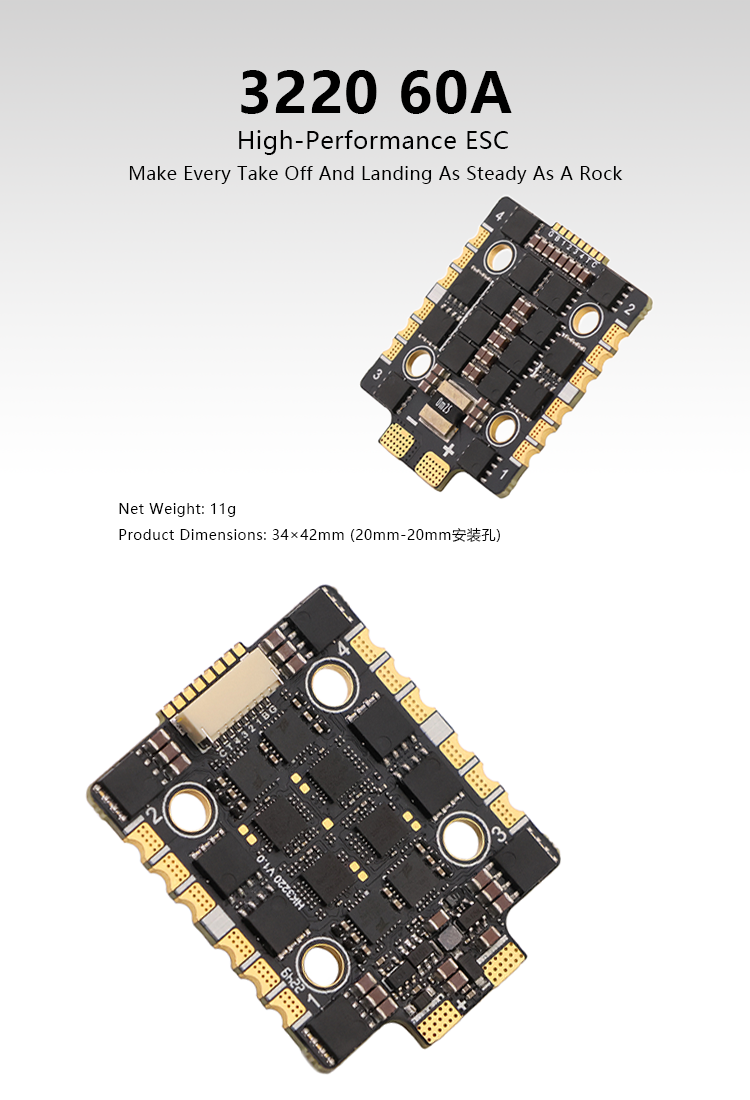

• Mounting: 20x20mm
• Weight: 11g
• Brand: HAKRC

The HAKRC 3220 60A 4-in-1 ESC is the ideal choice for FPV enthusiasts seeking a powerful, compact ESC for high-performance drone builds. With its advanced design, it ensures smooth control and durability.
