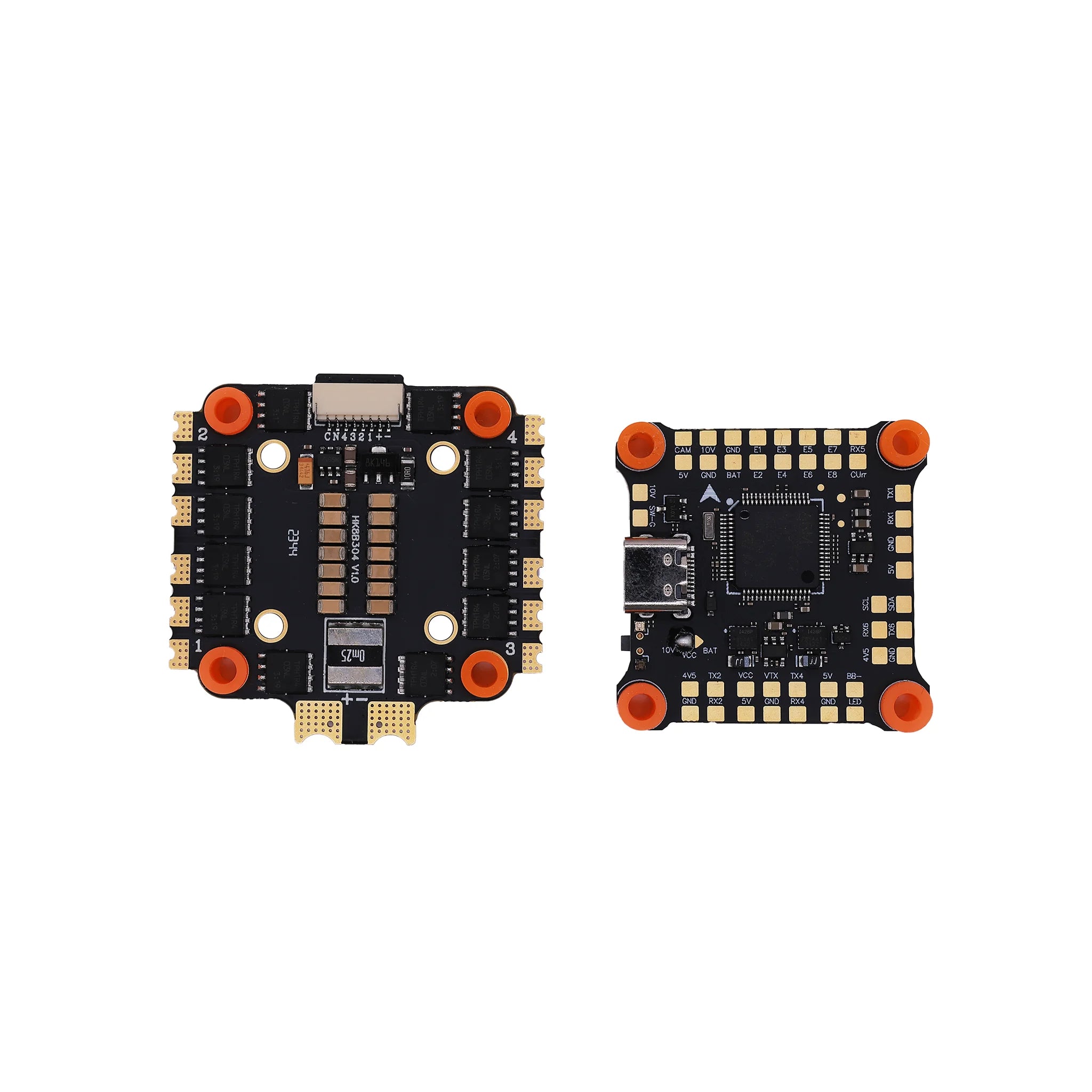

NZFPV Hakrc 50A F7 V2 Fly Tower

Integrated Flight Control and Power Distribution

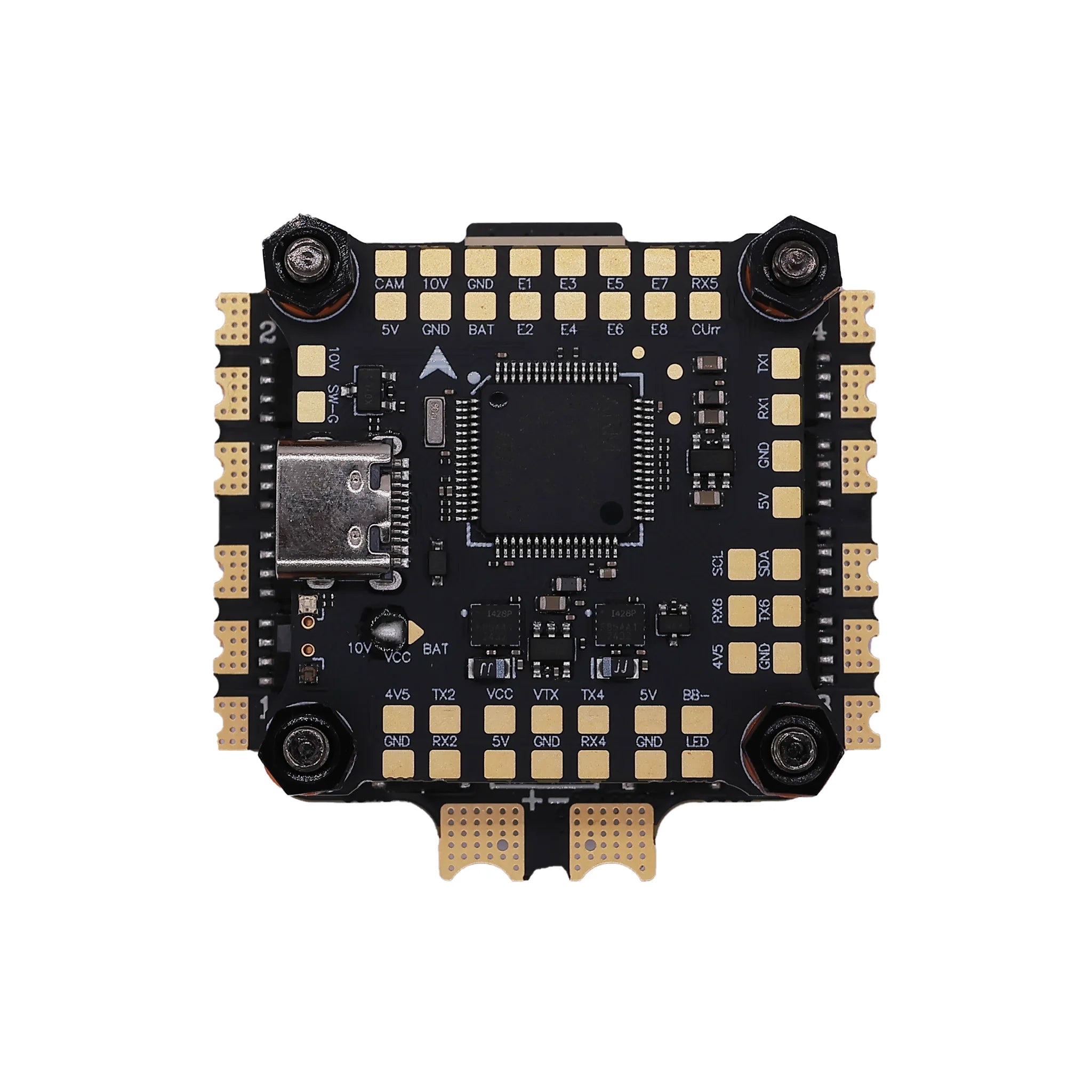

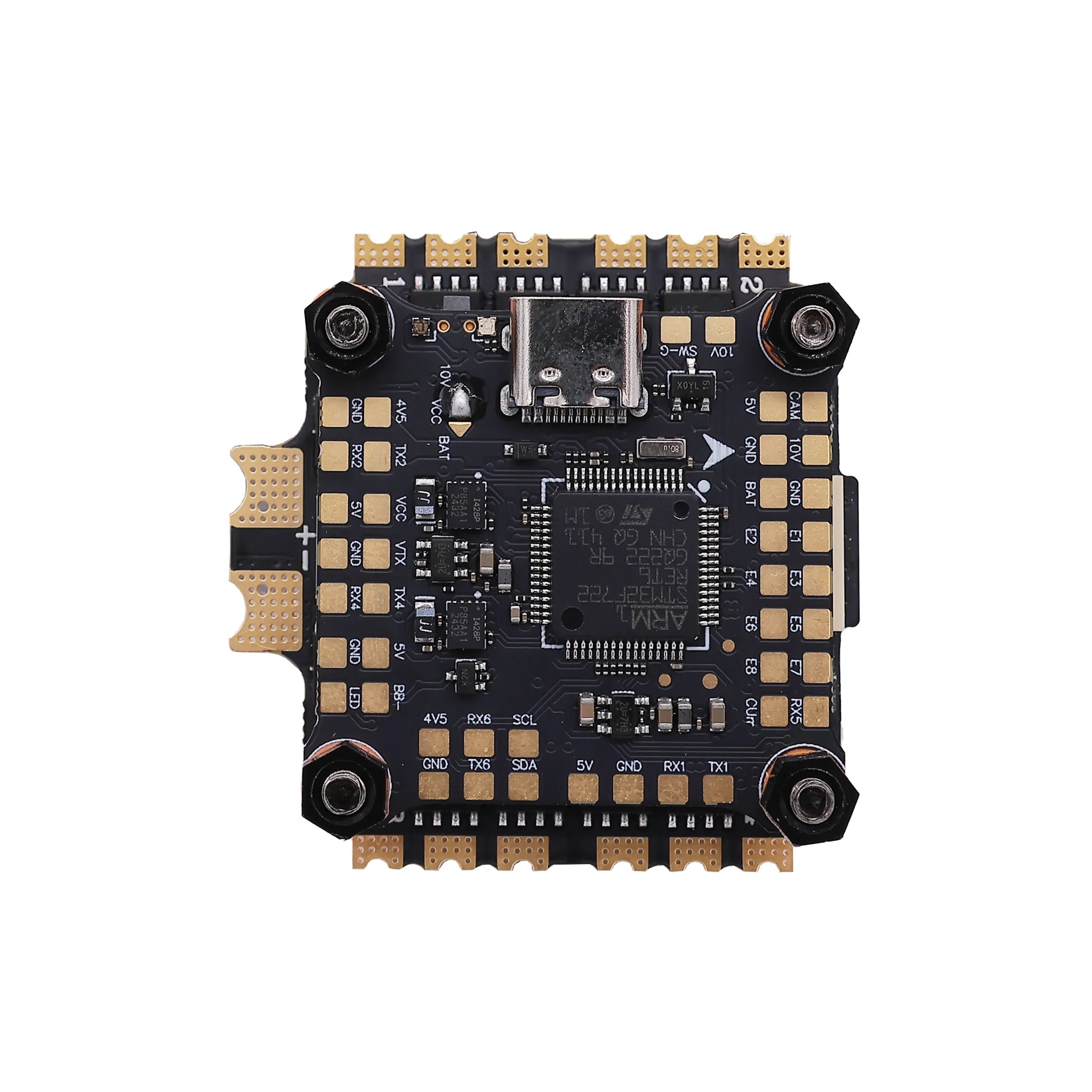

Powered by the STM32F722RET6 CPU and dual ICM42688 gyroscopes, the HAKRC 50A F7 V2 Fly Tower ensures accurate flight data processing. It includes 16MB storage for flight logging and 5 UART serial ports for versatile connectivity. The power distribution board (PDB) supports 2S-6S LiPo batteries, distributing power efficiently, while dual BECs (5V/3A, 10V/2.5A) provide stable voltage for peripherals, enhancing system reliability.

Robust ESC and Safety Features

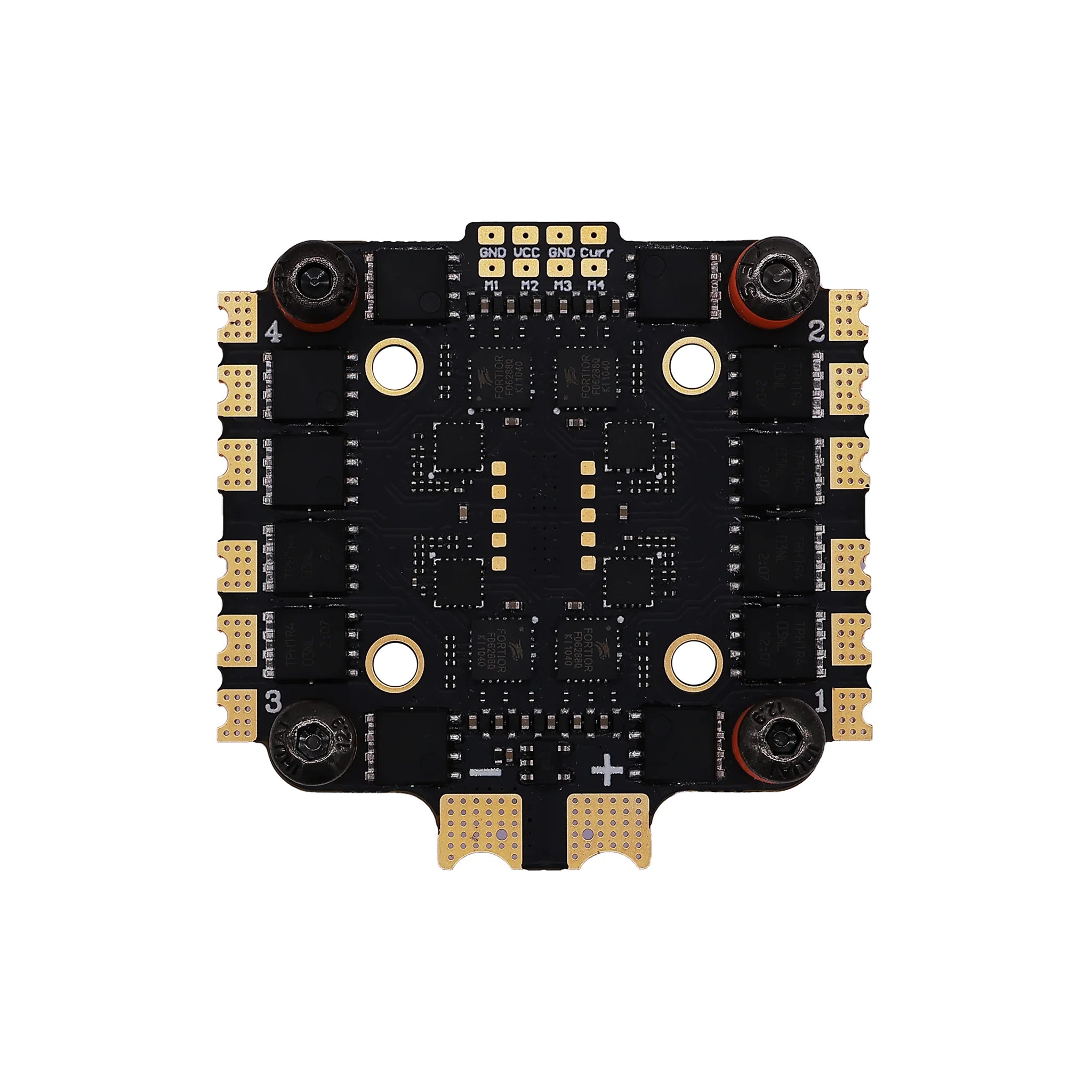

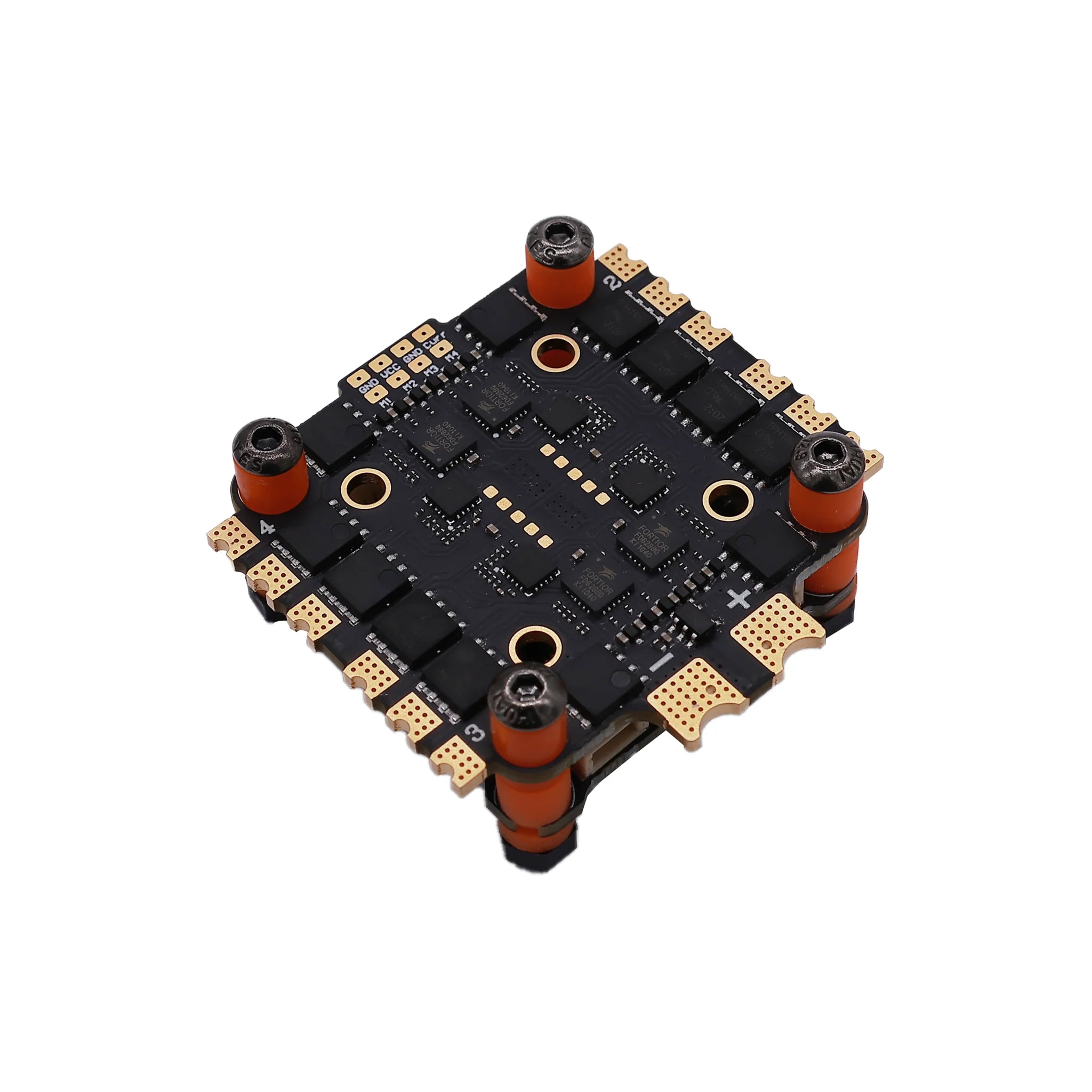

The integrated 4-in-1 ESC delivers 50A continuous current (60A peak for 10 seconds) and supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600 protocols, with telemetry data transmitted to the VTX. Safety is prioritized with finger-tightened nut installation, M3 orange shock absorber balls for vibration damping, and guidelines to check pin alignment, polarity, and solder joints to prevent short circuits.

Compact Design with Seamless Integration

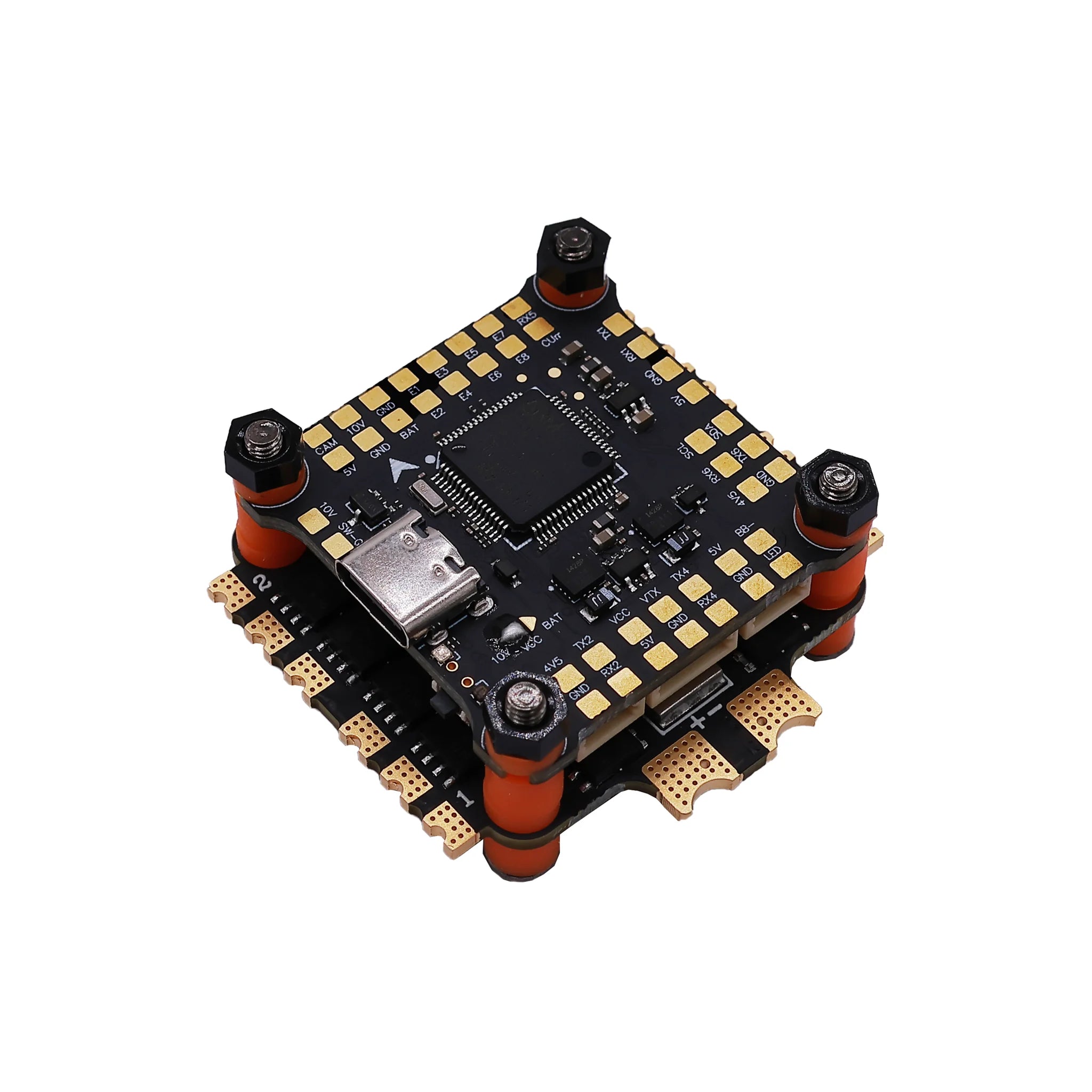

Measuring 39mm x 41mm x 6.5mm (flight controller at 36mm x 36mm) with 30.5mm x 30.5mm mounting holes (Φ4mm), this fly tower fits versatile FPV builds. The 6P sky terminal seat (DJI-compatible) enables solder-free connections for GPS, receivers, and cameras. Accessories include a 35V/470uF capacitor, XT60 power cable, M3x25mm screws, and cables (8P, CRSF Receiver 4P). Four programmable colored LEDs add customization.

Enhanced User Experience

The HAKRC 50A F7 V2 Fly Tower enhances the RC experience with:

• All-in-One Simplicity: Integrated flight controller, 4-in-1 ESC, and PDB reduce wiring for quick, clean builds.
• Stable and Precise Flight: The STM32F722RET6 CPU and dual ICM42688 gyroscopes ensure smooth, responsive performance for quads.
• Efficient Power Delivery: Dual BECs (5V/3A, 10V/2.5A) and a 35V/470uF capacitor provide reliable power for motors and peripherals.
• Wide Compatibility: Supports 2S-6S LiPo, multiple receiver protocols (Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2), and Dshot600 for versatile setups.
• Safety and Durability: Shock absorber balls and installation precautions ensure longevity in demanding environments.

Technical Specifications

• CPU: STM32F722RET6
• Gyroscope: Dual ICM42688
• Storage: 16MB
• BEC: 5V/3A, 10V/2.5A
• ESC: 4-in-1, 50A continuous, 60A peak (10s)
• ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• ESC Firmware: BLHeliSuite16714900
• ESC Telemetry: Supported (to VTX)
• Firmware: HAKRCF722V2
• Receiver Support: Frsky, Futaba, Flysky, TBS Crossfire, DSMX/DSM2
• UART Serial Ports: 5
• LED Support: Four programmable colored LEDs
• Input Voltage: 2S-6S LiPo
• Fly Tower Dimensions: 39mm x 41mm x 10mm
• Flight Controller Dimensions: 36mm x 36mm (30.5mm x 30.5mm mounting holes, Φ4mm)
• Weight (Fly Tower): 22g
• Weight (Flight Controller): 8.5g
• Total Weight: 70g
• Accessories: M3x25mm screws (x4), M3 plastic nuts (x4), 35V/470uF capacitor (x1), M3 orange shock absorber balls (x4), 8P cable (x1), XT60 power cable (x1), CRSF Receiver 4P cable (x1)
• Brand: HAKRC

The HAKRC 50A F7 V2 Fly Tower is the ideal choice for RC enthusiasts seeking a high-performance fly tower for FPV drones and racing quads. With its integrated design, robust ESC, and easy setup, it delivers exceptional performance for demanding builds.
