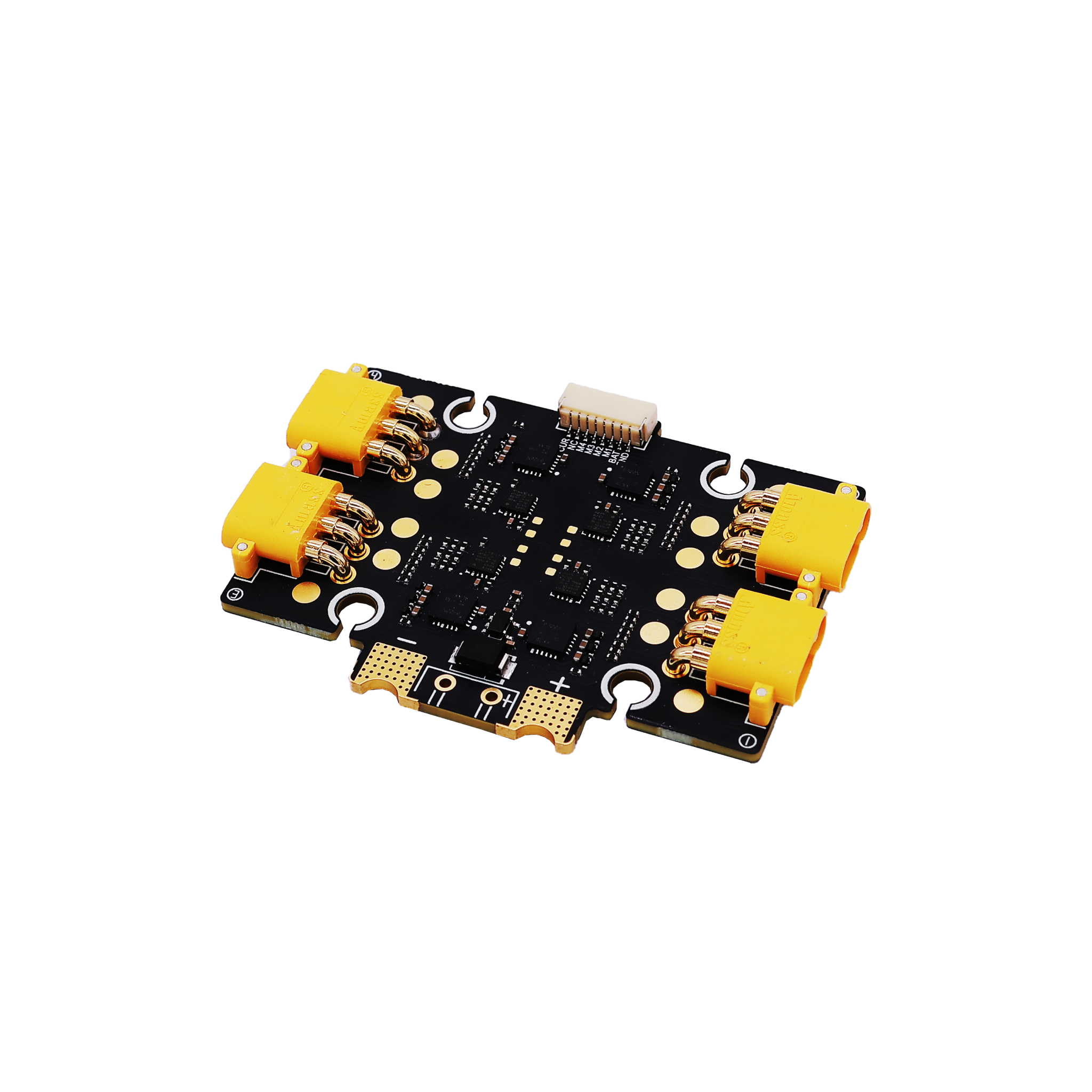

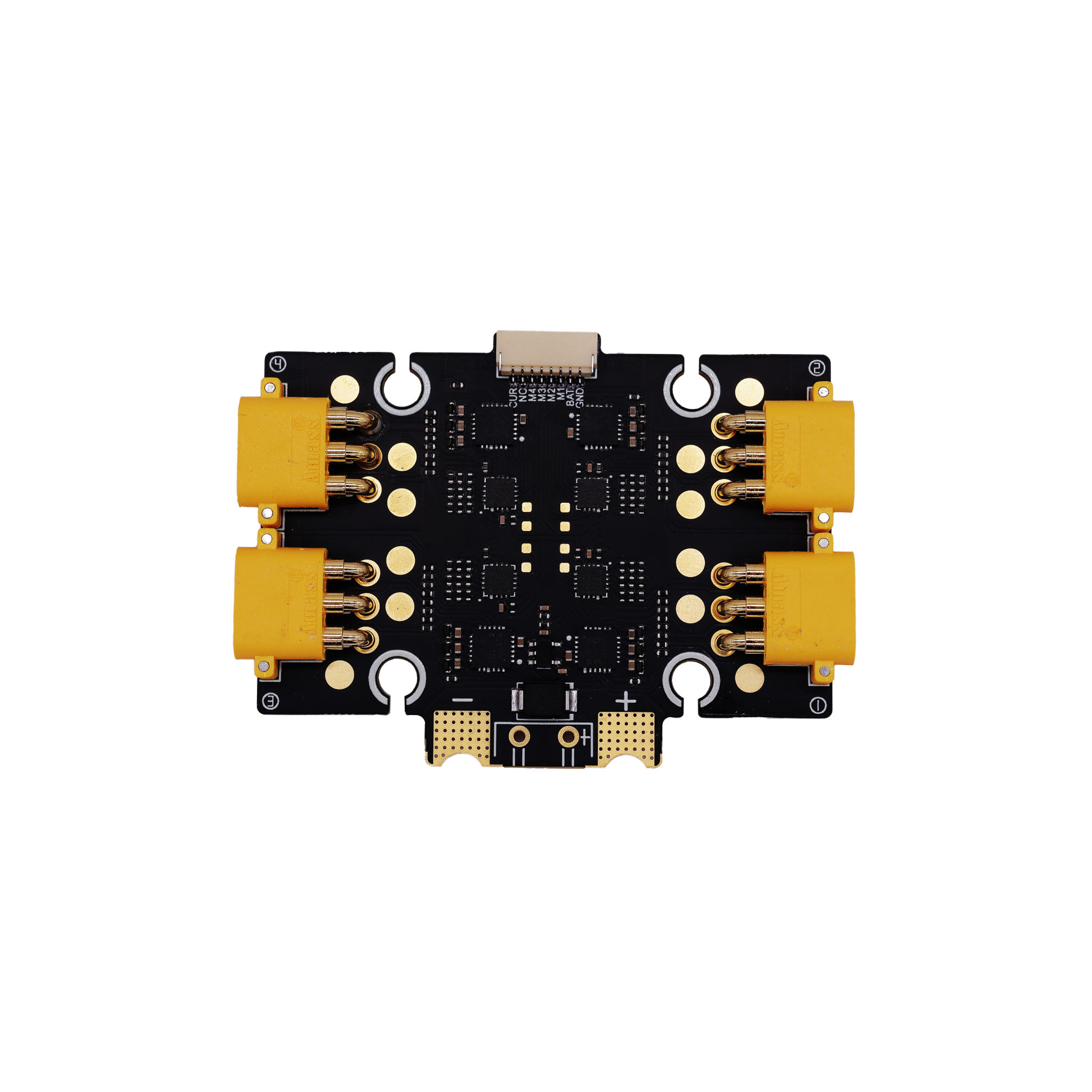

NZFPV Hakrc EF60 50A 4in1 FPV ESC

Robust Power Delivery and Construction

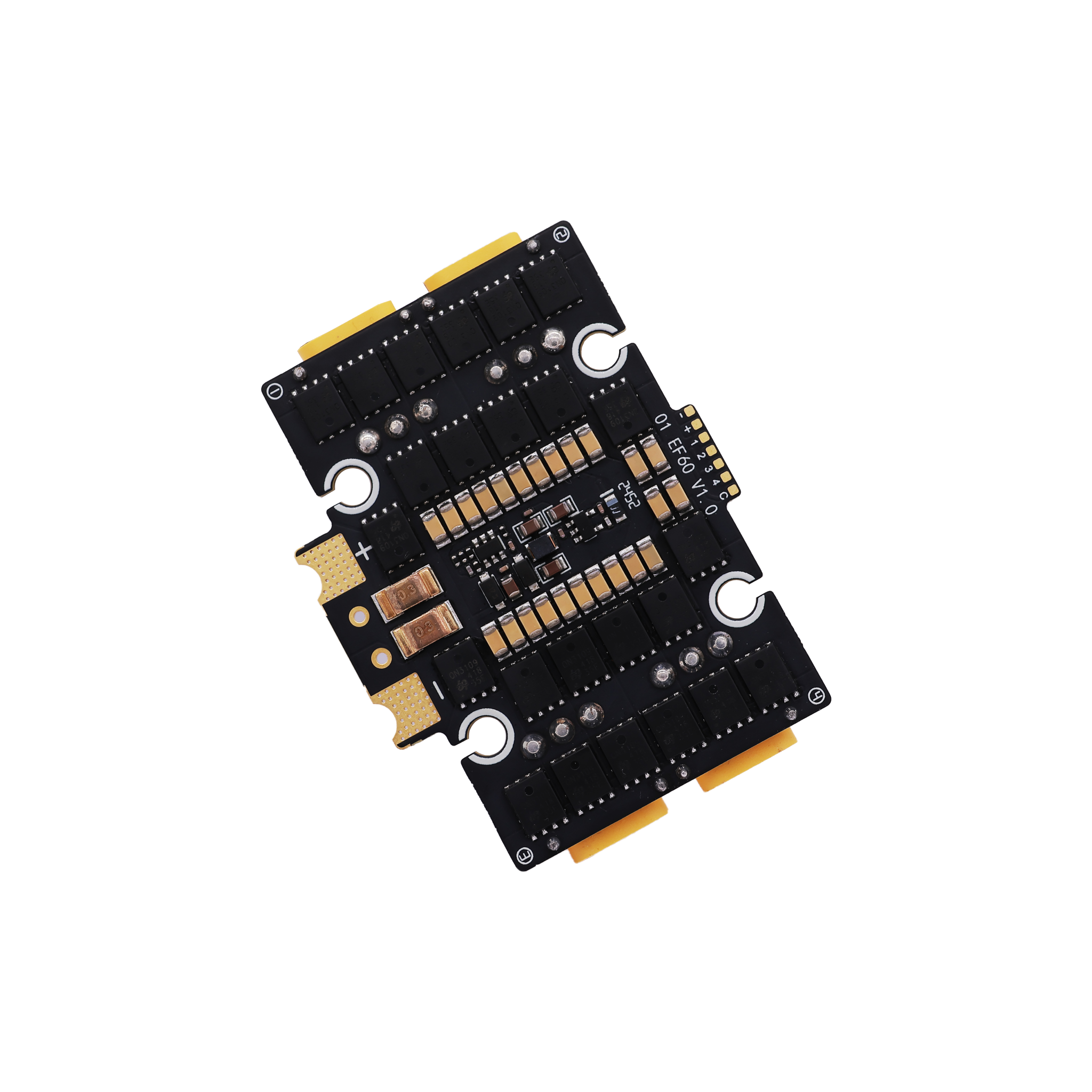

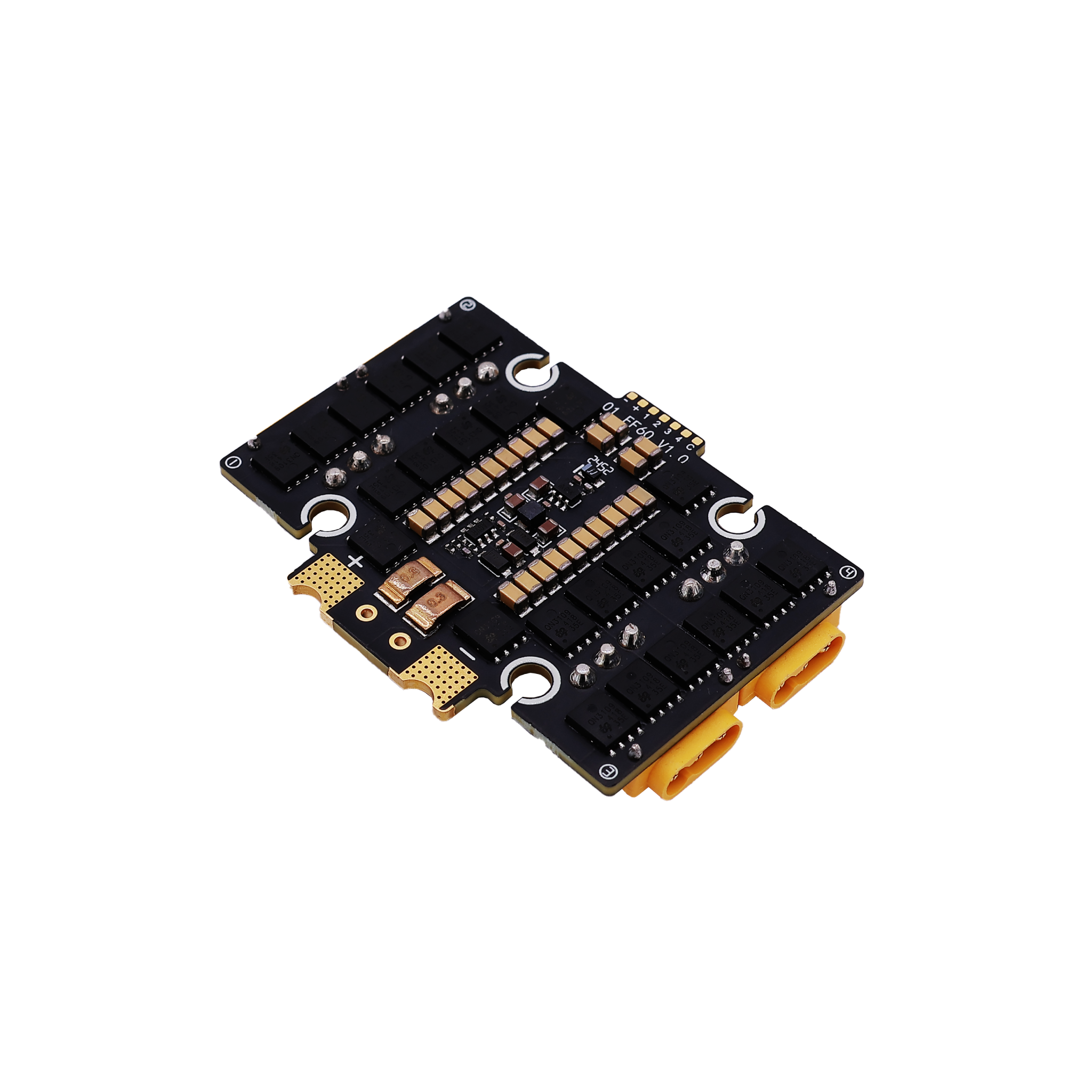

The HAKRC EF60 is built on a 6-layer PCB with 3oz thickened copper, enhancing overcurrent capability and heat dissipation. It uses imported 40V MOSFETs for long life and strong load capacity, with an industrial-grade LDO for high-temperature resistance, ensuring robustness and reliability in demanding flight conditions.

Reliable Control with Proven Hardware

This ESC employs an EFM8BB51F16G main control chip at 50MHz, paired with a 3-in-1 DRV8300D IC driver. Running E_X_40 - Rev. 16.7 firmware, it supports PWM, Oneshot125, Oneshot42, Multishot, and Dshot150/300/600 protocols. Japanese Murata capacitors ensure strong filtering for precise motor control.

Efficient and Smooth Flight Characteristics

The HAKRC EF60 features hardware PWM for reduced noise and smoother throttle response. Damped Light enables sensitive regenerative braking, while active freewheeling recycles power for extended flight times. The resin plugged PCB and double pad design simplify user convenience.

Changes to User Experience

The HAKRC EF60 ESC enhances the FPV experience by providing:

• Reliable Power: 50A current and 2S-6S support power diverse FPV quadcopters.
• Enhanced Durability: 6-layer PCB, MOSFETs, and Murata capacitors ensure long life.
• Smooth Control: EFM8BB51F16G, Dshot600, and Damped Light deliver responsive flights.
• Increased Flight Time: Active freewheeling extends battery life.
• Convenient Installation: Double pad design simplifies assembly.

Technical Specifications

• CPU: EFM8BB51F16G (50MHz)
• IC Driver: DRV8300D
• Current: 50A continuous, 50A peak (assumed 10s)
• ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150/300/600
• ESC Firmware: E_X_40 - Rev. 16.7
• Input Voltage: 2S-6S LiPo
• PCB: 6-layer, 3oz copper, resin plug-hole, double metallized pads
• Components: Imported 40V MOSFETs, industrial-grade LDO, Murata capacitors
• Mounting: 34.4x34.4mm (assumed)
• Brand: HAKRC

The HAKRC EF60 4-in-1 ESC is the ideal choice for FPV enthusiasts seeking a durable, efficient ESC. With its advanced design, it ensures reliable power and smooth control for versatile drone builds.
