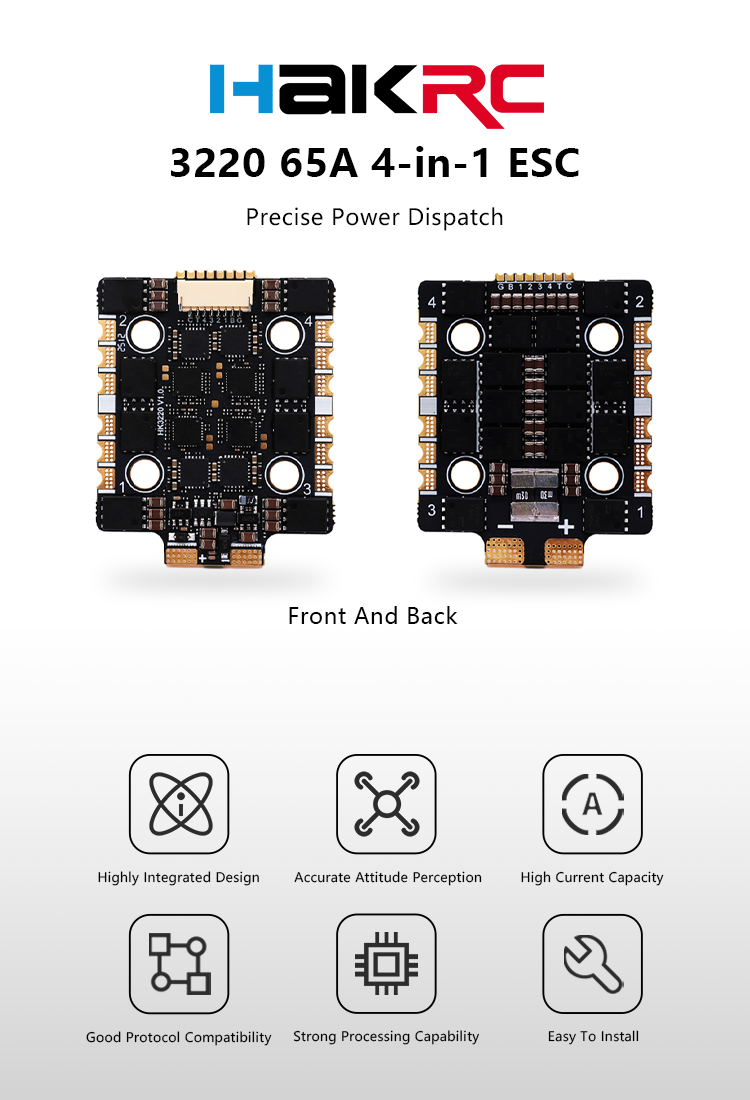

Hakrc 3220 65A 4in1 FPV ESC

Advanced 32-bit Processing

The HAKRC 3220 65A is built upon a sophisticated 32-bit architecture with HAKRC_AT4G_Multi_32.9 Hex firmware, enabling faster computations and refined motor control. This delivers responsive throttle, precise speed adjustments, and enhanced flight characteristics, essential for competitive racing and freestyle FPV maneuvers.

Robust Power Delivery

Engineered for high-intensity FPV applications, this 4-in-1 ESC provides a formidable 65A continuous current per channel (75A peak). Supporting a 2S-6S LiPo voltage range, it offers versatility for various power setups, ensuring reliable power delivery for aggressive flying and high-power drones.

Versatile Protocol Compatibility and Compact Form Factor

The HAKRC 3220 65A ensures extensive compatibility with PWM, Oneshot125, Oneshot42, Multishot, and Dshot150/300/600 protocols, integrating seamlessly with diverse flight controllers. Its 20x20mm mounting footprint and 11g net weight make it ideal for compact builds, balancing power and weight without compromise.

Enhanced User Experience

The HAKRC 3220 65A ESC significantly elevates the user experience by:

• Smoother Flights: 32-bit processing and Dshot600 ensure precise, responsive motor control for an intuitive feel.
• High-Power Setups: 65A current (75A peak) and 2S-6S support power demanding drones for racing or freestyle.
• Seamless Integration: Broad protocol support simplifies builds with flexible component choices.
• Lightweight Builds: 20x20mm footprint and 11g weight suit compact frames without losing power.

Technical Specifications

• Architecture: 32-bit
• Current: 65A continuous, 75A peak (10s)
• ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150/300/600
• ESC Firmware: HAKRC_AT4G_Multi_32.9 (BLHeli_32)
• Input Voltage: 2S-6S LiPo

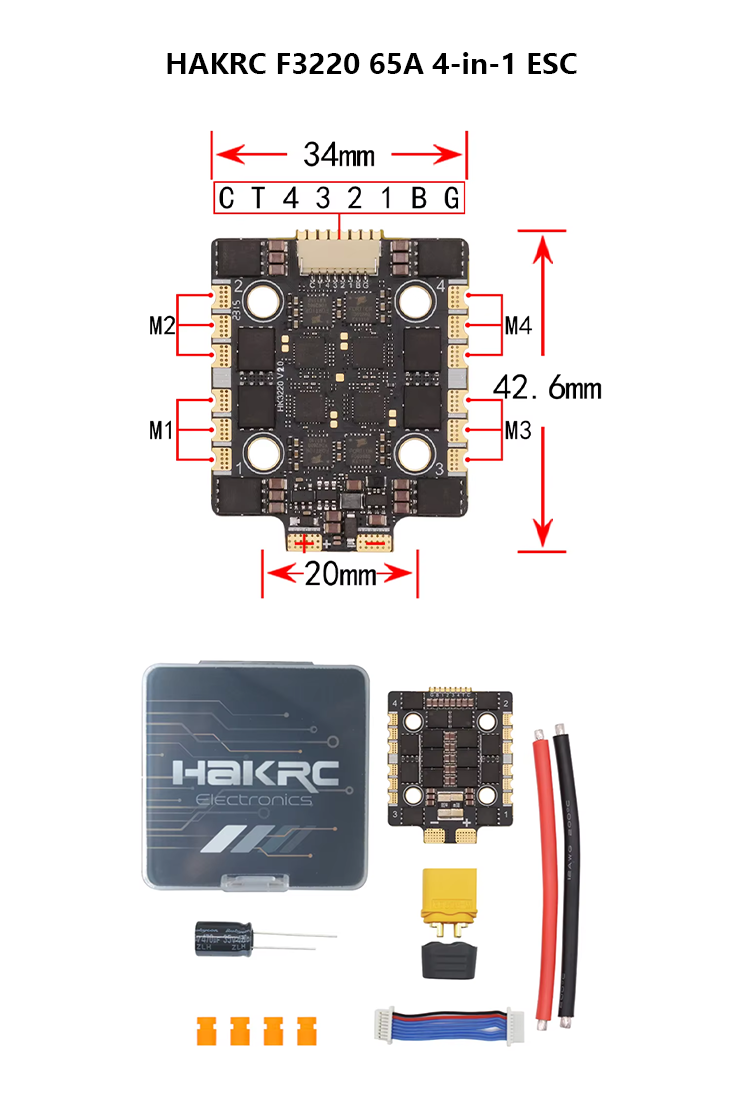

• Mounting: 20x20mm

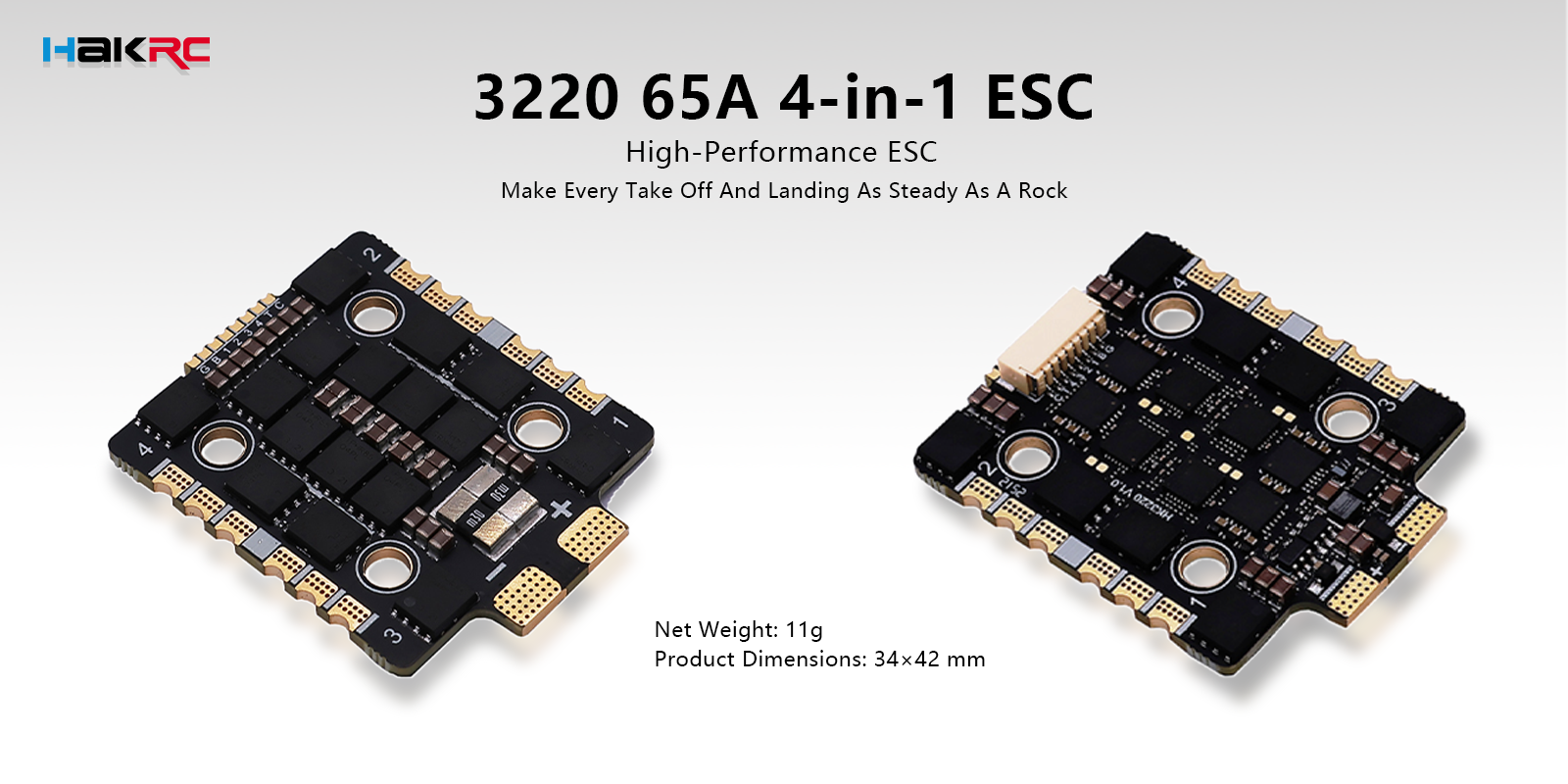

• Weight: 11g
• Brand: HAKRC

The HAKRC 3220 65A 4-in-1 ESC is the ideal choice for FPV enthusiasts seeking a powerful, compact ESC for high-performance drone builds. With its advanced design, it ensures smooth control and reliability.
